Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 28, 2017, 11:57 AM

  • 08 0542_08 0541_10282017_050043.mp4

Date
10/28/2017
W/O
0635424
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00021
PipeID
P00604
Time
4:57 AM
Certificate
U115-0622630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0664
Sewer Name
08 VICTORIA STREET TRUNK
City
RANCHO DOMINGUEZ
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
10282017VMR_VICTORIA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0542
Downstream MH
08 0541
Dir. of Survey
Downstream
Length Surveyed
277.6 ft.
Total Length
277.6 ft.
Structural Index
1
Structural Quick
221B
Structural Rating
18
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
1
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 08 0542 to 08 0541
MH: 08 0542MH: 08 0541downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05:02 AM0 ft. MWM - Water Mark, 20 %of cross sectional area10.5 ft. CC - Crack Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES43.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES87.8 ft. CC - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES95.8 ft. CC - Crack Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES148.2 ft. CC - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES152.2 ft. CC - Crack Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES156.1 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES184.3 ft. CC - Crack Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES188.1 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES216.5 ft. CC - Crack Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES232.5 ft. CC - Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES236.8 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES240.4 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES244.7 ft. CC - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES252.8 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES258.4 ft. OBZ - Obstacles Other, 5 %of cross sectional area, at 07 o'clock - DEBRIS260 ft. CC - Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES260.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES277.6 ft. AMH - Downstream Manhole, Survey Ends - 05:34 AM

Observation photos (2)

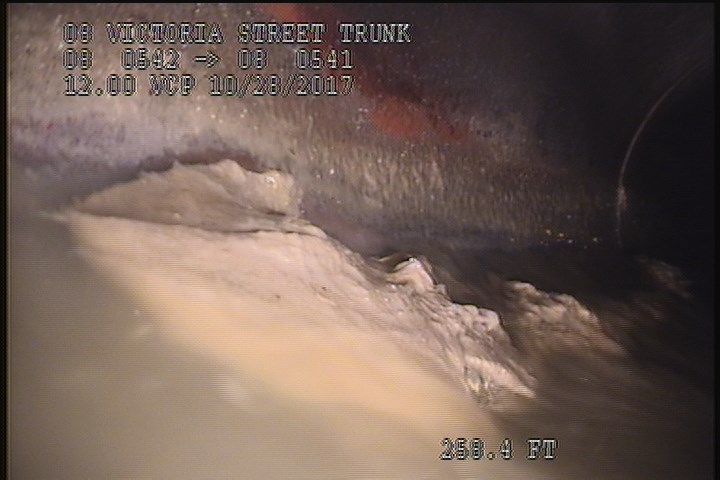

  • Obstacles Other, 5 %of cross sectional area, at 07 o'clock - DEBRIS

    258.4 ft. - Obstacles Other, 5 %of cross sectional area, at 07 o'clock - DEBRIS

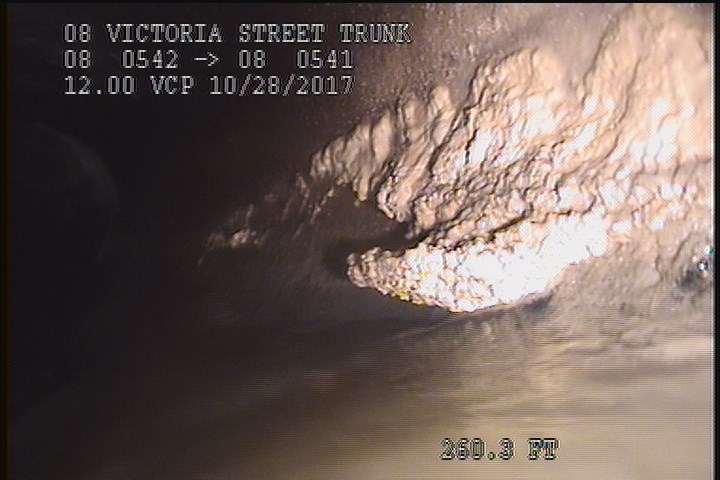

  • Deposits Attached Grease, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES

    260.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: YES

All inspections of P00604Work order 0635424

Observations (22)

DistanceCodeObservation
184.3CC—
244.7CC—
260CC—
236.8CL—
43.5CL—
260.3DAGS—
240.4CC—
148.2CC—
156.1CC—
0MWL—
0AMH05:02 AM
277.6AMH05:34 AM
258.4OBZDEBRIS
232.5CC—
10.5CC—
216.5CC—
0MWM—
87.8CC—
152.2CC—
188.1CC—
95.8CC—
252.8CC—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2017-10-28T04:57:23-07:00
documentation
REVELES, MANANES, OLIVER III
is_lateral_inspection
false
