Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 28, 2017, 10:52 AM

  • 08 0543_08 0542_10282017_040334.mp4

Date
10/28/2017
W/O
0635424
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00021
PipeID
P00605
Time
3:52 AM
Certificate
U115-0622630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0664
Sewer Name
08 VICTORIA STREET TRUNK
City
RANCHO DOMINGUEZ
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
10282017VMR_VICTORIA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0543
Downstream MH
08 0542
Dir. of Survey
Downstream
Length Surveyed
288 ft.
Total Length
288 ft.
Structural Index
1
Structural Quick
3223
Structural Rating
38
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
1
Overall Quick
—
Overall Rating
38
Pipe schematic from manhole 08 0543 to 08 0542
MH: 08 0543MH: 08 0542downstream0 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 10"0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03:52 AM0 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 10"19.5 ft. CC - Crack Circumferential, from 09 to 04 o'clock, within 8 inches of joint: YES23.4 ft. CC - Crack Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES31.2 ft. CC - Crack Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES67.3 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 4"68.3 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES, .5ft68.3 ft. CC - Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES76.5 ft. CC - Crack Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES80.6 ft. CC - Crack Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES80.6 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES84.6 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES96.7 ft. CC - Crack Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES109.2 ft. CC - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES112.9 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES117.1 ft. CC - Crack Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES121.1 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES129.2 ft. CC - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES133.4 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES137.2 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES149.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES181.4 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES206 ft. CC - Crack Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES217.7 ft. CC - Crack Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES221.9 ft. CC - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES230 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES233.9 ft. CC - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES242 ft. CC - Crack Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES254.1 ft. CC - Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES262.1 ft. CC - Crack Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES262.1 ft. CC - Crack Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES266.5 ft. CC - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES274.2 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES283 ft. CC - Crack Circumferential, from 04 to 08 o'clock, within 8 inches of joint: YES288 ft. AMH - Downstream Manhole, Survey Ends - 04:57 AM

Observation photos (3)

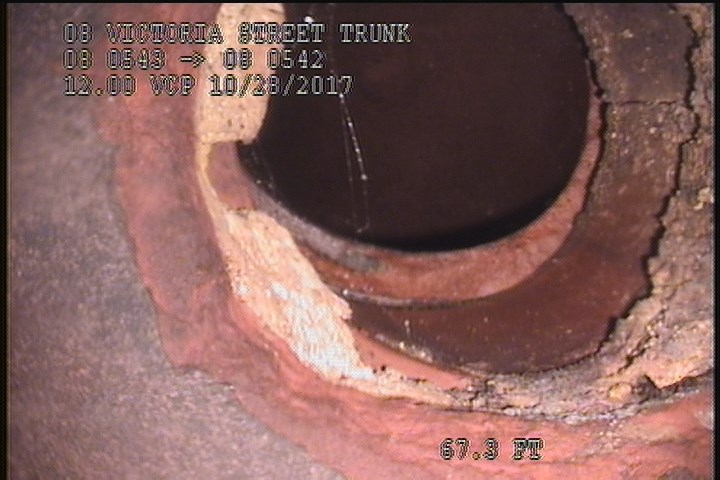

  • Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 4"

    67.3 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 4"

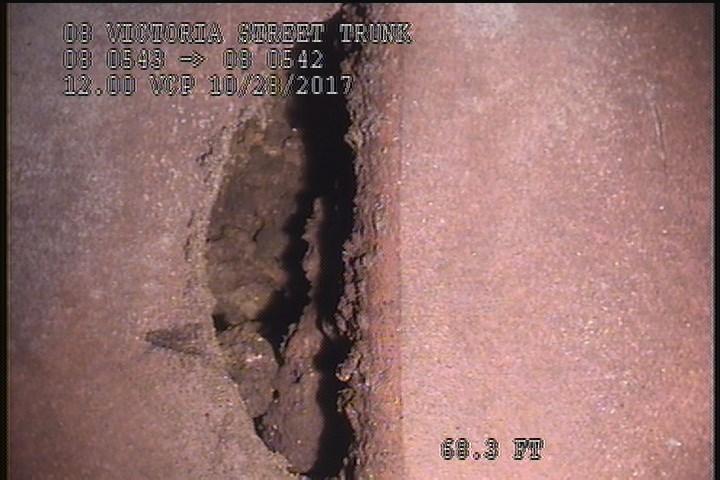

  • Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES, .5ft

    68.3 ft. - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES, .5ft

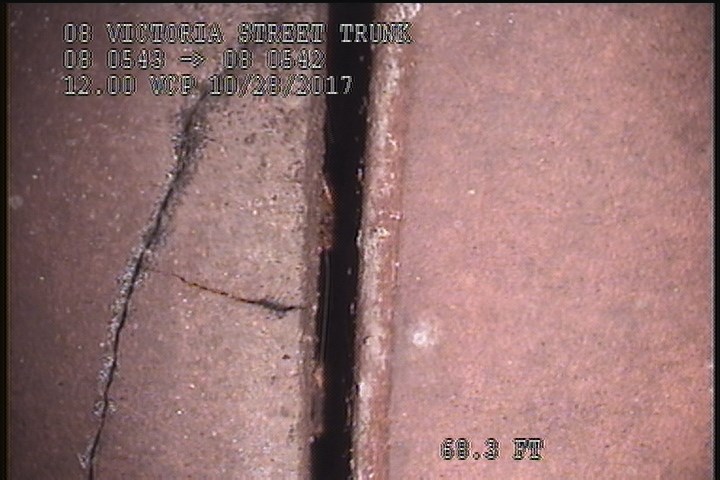

  • Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES

    68.3 ft. - Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES

All inspections of P00605Work order 0635424

Observations (38)

DistanceCodeObservation
117.1CC—
129.2CC—
0TF—
266.5CC—
149.2CM—
68.3FC—
230CC—
262.1CC—
0MWM—
121.1CC—
288AMH04:57 AM
109.2CC—
262.1CC—
133.4CC—
242CC—
137.2CC—
80.6CC—
274.2CC—
181.4CM—
0MWL—
96.7CC—
217.7CC—
0AMH03:52 AM
221.9CC—
206CC—
283CC—
68.3CC—
84.6CL—
80.6CL—
0TFA—
67.3TB—
254.1CC—
19.5CC—
31.2CC—
23.4CC—
112.9CC—
76.5CC—
233.9CC—
