Wastewater/Activity/PacpInspection/1.0Jul 3, 2017, 04:29 PM
A 0388_A 0337_732017_093649.mp4
A 0338_A 0337_732017_093830.mp4
- Date
- 07/03/2017
- W/O
- 0636060
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00325
- PipeID
- P08248
- Time
- 9:29 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7452
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- EL MONTE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- 20170703MI_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- A 0337
- Downstream MH
- A 0338
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 4
- O&M Quick
- 4200
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (2)

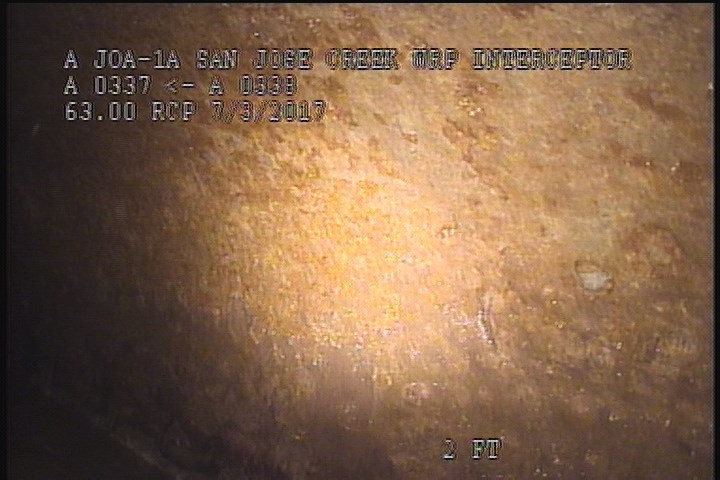

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

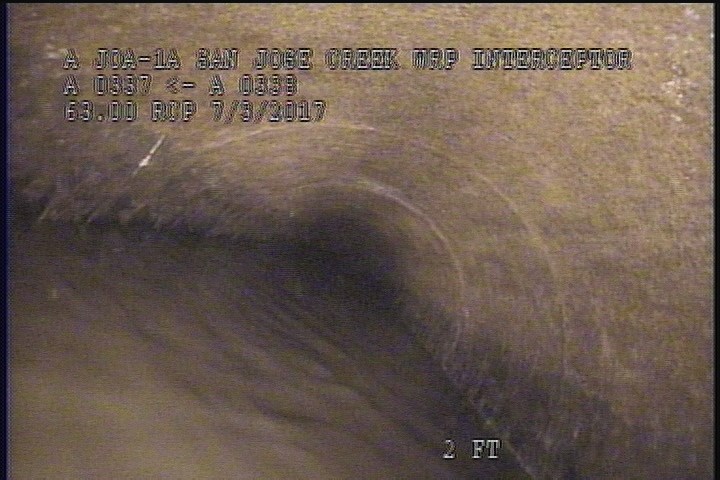

2 ft. - General Observation - VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | LU | — |
| 2 | SSS | — |
| 2 | MGO | VIEW OF THE UPLEG PIPE OF THE D/S SIPHON |
| 2 | MSA | VIEW OF THE UPLEG PIPE OF THE D/S SIPHON |
| 0 | AMH | 09:33 AM |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-03T09:29:45-07:00
- documentation
- IGNACIO, FRANKLIN, OBREGON
- is_lateral_inspection
- false
