Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 3, 2017, 03:36 PM

  • A 0334_A 0333_732017_085318.mp4

Date
07/03/2017
W/O
0636060
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00325
PipeID
P08244
Time
8:36 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7452
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
22
Purpose
Routine Assessment
Project
20170703MI_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
A 0334
Downstream MH
A 0333
Dir. of Survey
Downstream
Length Surveyed
2.4 ft.
Total Length
2.4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole A 0334 to A 0333
MH: A 0334MH: A 0333downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. MGO - General Observation - POSSIBLE AIRLINE AT 3 OCLOCK0 ft. LD - Alignment Down, 45 %0 ft. AMH - Upstream Manhole, Survey Begins - 09:00 AM2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES2.2 ft. MGO - General Observation - POSSIBLE MAGNESIUM HYDROXIDE COAT, FROIM 9 TO 3 OCLOCK, 20%2.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES2.4 ft. MGO - General Observation - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON2.4 ft. MSA - Survey Abandoned - VIEW OF DOWNLEG PIPE OF THE U/S SIPHON

Observation photos (5)

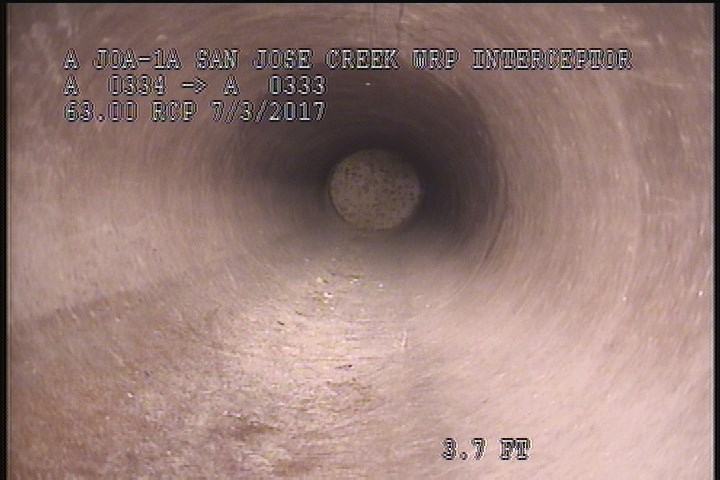

  • General Observation - POSSIBLE AIRLINE AT 3 OCLOCK

    0 ft. - General Observation - POSSIBLE AIRLINE AT 3 OCLOCK

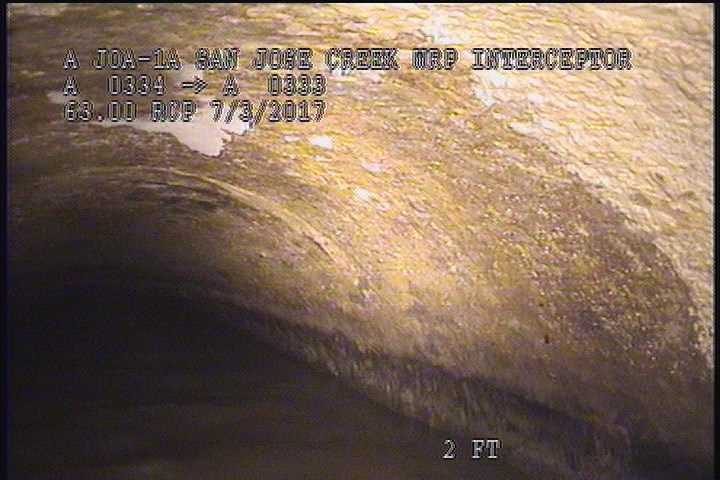

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES

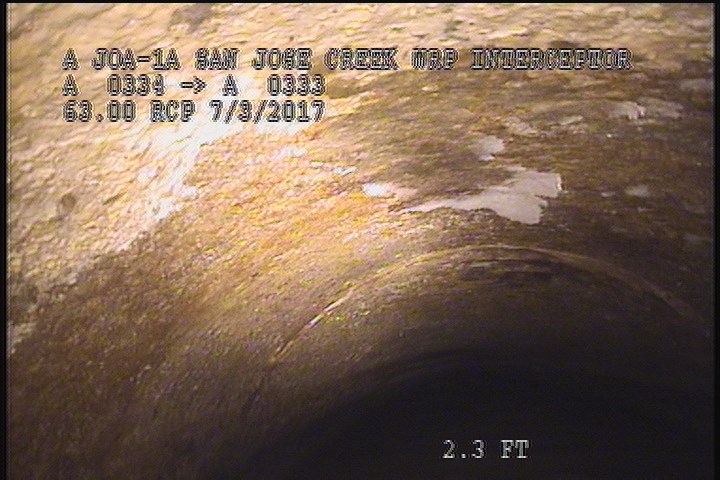

  • General Observation - POSSIBLE MAGNESIUM HYDROXIDE COAT, FROIM 9 TO 3 OCLOCK, 20%

    2.2 ft. - General Observation - POSSIBLE MAGNESIUM HYDROXIDE COAT, FROIM 9 TO 3 OCLOCK, 20%

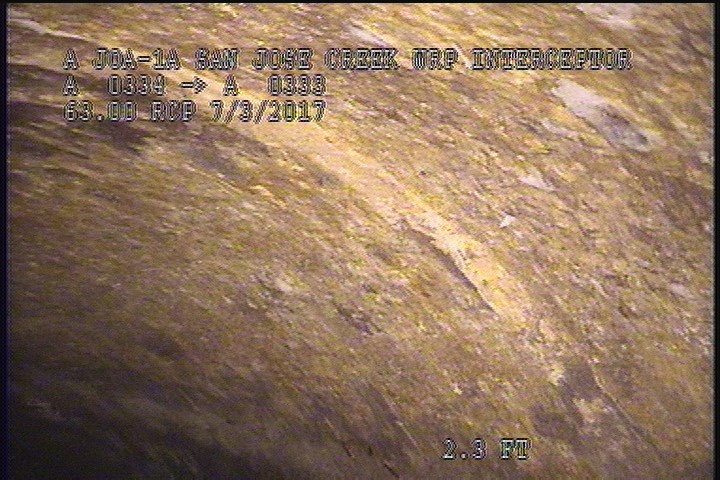

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

    2.3 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

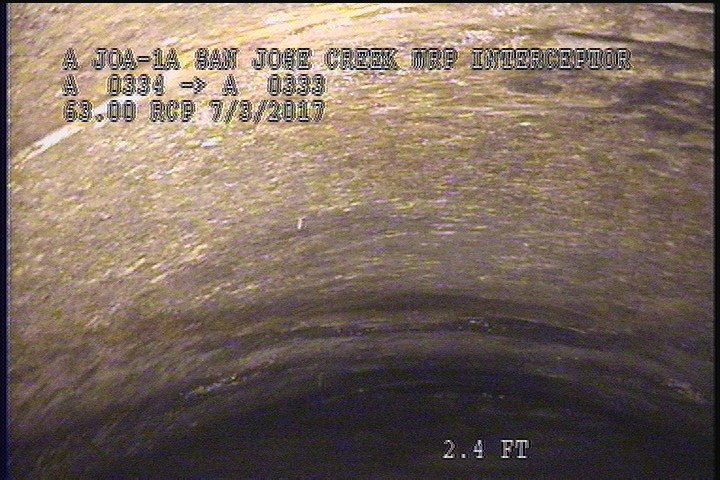

  • General Observation - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

    2.4 ft. - General Observation - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

All inspections of P08244Work order 0636060

Observations (10)

DistanceCodeObservation
0MWL—
0MWM—
2.4MGOVIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
0MGOPOSSIBLE AIRLINE AT 3 OCLOCK
2.4MSAVIEW OF DOWNLEG PIPE OF THE U/S SIPHON
0LD—
2.2MGOPOSSIBLE MAGNESIUM HYDROXIDE COAT, FROIM 9 TO 3 OCLOCK, 20%
0AMH09:00 AM
2SSS—
2.3SAV—

Properties (7)

additional_info
VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
custom_field_two
3
customer
LACSD
datetime
2017-07-03T08:36:02-07:00
documentation
IGNACIO, FRANKLIN, OBREGON
is_lateral_inspection
false
year_laid
19791214
