Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2019, 11:57 AM

  • Section#2_G 0164_G 0163__6282019__I0163.mp4

Date
06/28/2019
W/O
0776877
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00846
Time
4:57 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0163
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Capital Improvement Program Assesment
Project
20190628MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0164
Downstream MH
G 0163
Dir. of Survey
Downstream
Length Surveyed
280.7 ft.
Total Length
280.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole G 0164 to G 0163
MH: G 0164MH: G 0163downstream0 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: NO - INSIDE MH0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - TILES 100% IN PLACE8.4 ft. MGO - General Observation - OLD MAG COAT AND GREASE COAT ON PIPE23.1 ft. MGO - General Observation - MAG COAT 75% START84.1 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT280.3 ft. MGO - General Observation - THIN GREASE COAT ON PIPE THROUGHOUT REACH280.3 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT280.3 ft. MGO - General Observation - 75% MAG COAT FINISH280.3 ft. MGO - General Observation - MH CONN 9:00 ACTIVE280.7 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (5)

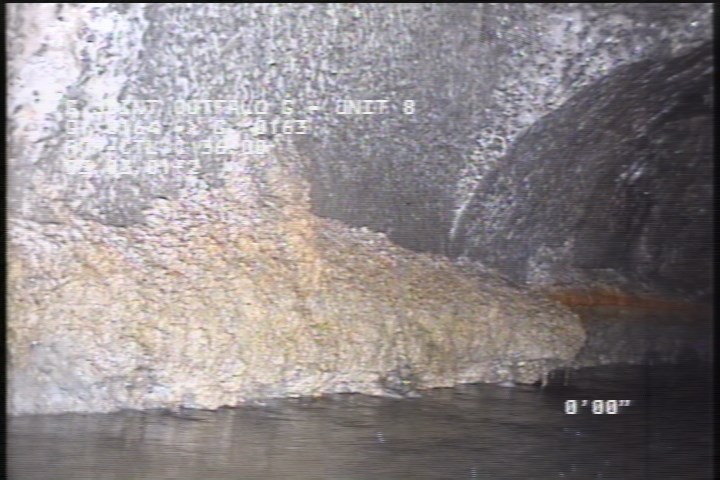

  • Deposits Attached Grease, 15 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: NO - INSIDE MH

    0 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: NO - INSIDE MH

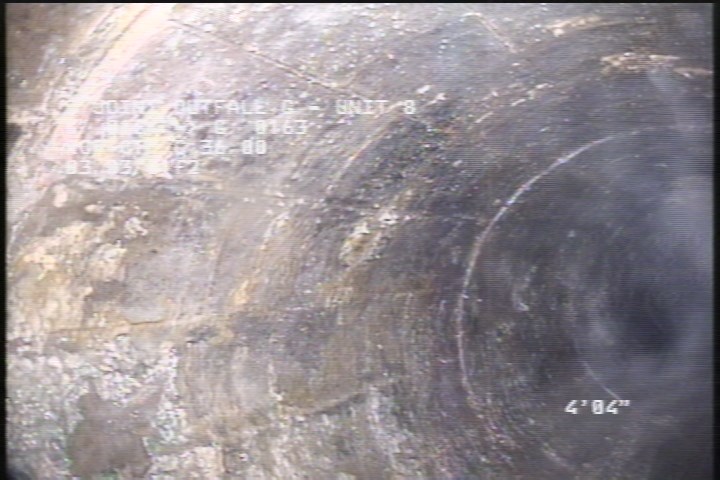

  • General Observation - TILES 100% IN PLACE

    2 ft. - General Observation - TILES 100% IN PLACE

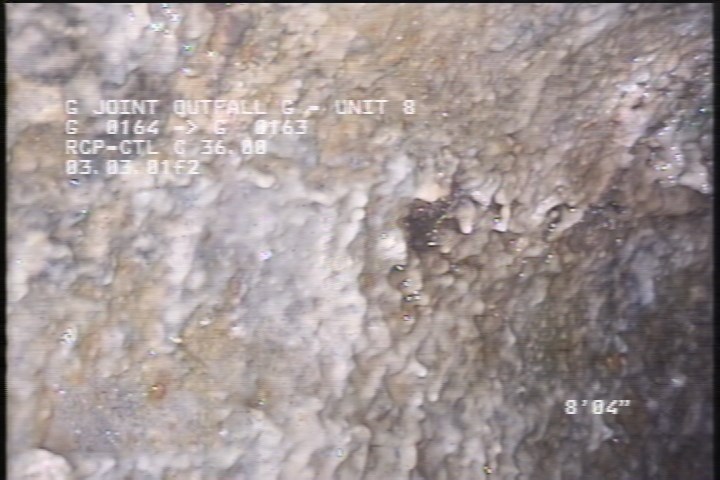

  • General Observation - OLD MAG COAT AND GREASE COAT ON PIPE

    8.4 ft. - General Observation - OLD MAG COAT AND GREASE COAT ON PIPE

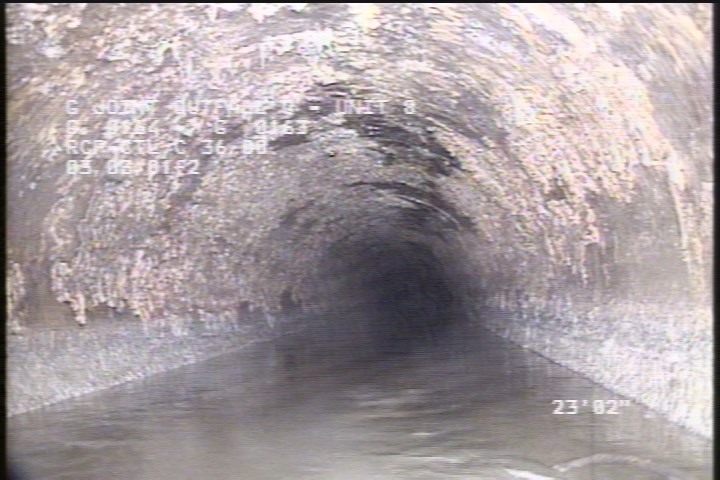

  • General Observation - MAG COAT 75% START

    23.1 ft. - General Observation - MAG COAT 75% START

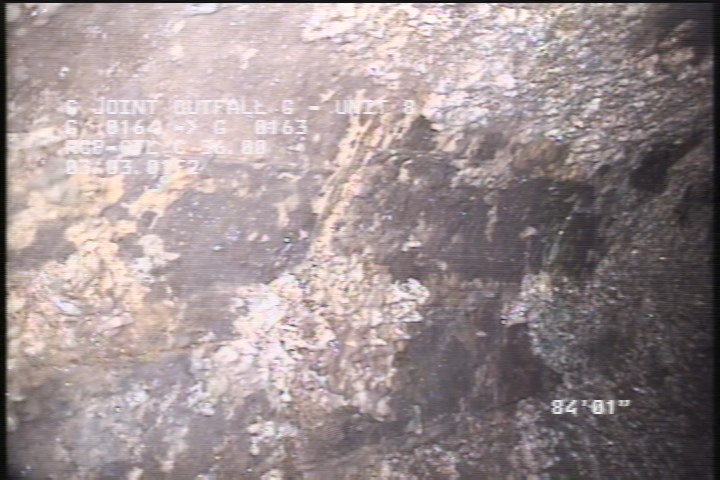

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT

    84.1 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT

All inspections of P00846Work order 0776877

Observations (14)

DistanceCodeObservation
0DAGSINSIDE MH
0AMH5:10AM
280.3MGOTHIN GREASE COAT ON PIPE THROUGHOUT REACH
2MGOTILES 100% IN PLACE
0MGOMH CONN 3:00 ACTIVE
280.3MGOTILES 100% IN PLACE UNDER MAG & GREASE COAT
0MWM—
84.1MGOTILES 100% IN PLACE UNDER MAG COAT
0MWL—
280.3MGO75% MAG COAT FINISH
280.7AMH5:35AM
23.1MGOMAG COAT 75% START
8.4MGOOLD MAG COAT AND GREASE COAT ON PIPE
280.3MGOMH CONN 9:00 ACTIVE

Properties (6)

custom_field_three
TILES 100% IN PLACE UNDER 75% MAG & GREASE COAT
custom_field_two
3
customer
LACSD
datetime
2019-06-28T04:57:49-07:00
documentation
MARTIN,REVELES,OLIVER 111,SHADLER
is_lateral_inspection
false
