Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2019, 07:42 AM

  • Section#1_D 0202_05 1032__6282019__I0162.mp4

Date
06/28/2019
W/O
0773450
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00156
PipeID
P10034
Time
12:42 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0162
Sewer Name
D JOINT OUTFALL D - UNIT 6
City
HAWTHORNE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
20190628MDM_JOINT_OUTFALL_D_UNIT_6
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
D 0202
Downstream MH
05 1032
Dir. of Survey
Downstream
Length Surveyed
8.9 ft.
Total Length
8.9 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole D 0202 to 05 1032
MH: D 0202MH: 05 1032downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM0 ft. MGO - General Observation - MH CONN 9:00 STUB-BRICK BULKHEAD0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. MGO - General Observation - 8" VCP INSIDE 30" RCP3.9 ft. MGO - General Observation - 8" VCP3.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SLIGHT8.2 ft. MGO - General Observation - MH CONN 9:00 ACTIVE8.2 ft. DSZ - Deposits Settled Other, 20 TO 35 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - INSIDE MH & DOWNSTREAM8.2 ft. MGO - General Observation - MH CONN 3:00 STOPLOG IN PLACE8.9 ft. AMH - Downstream Manhole, Survey Ends - 2:00AM

Observation photos (7)

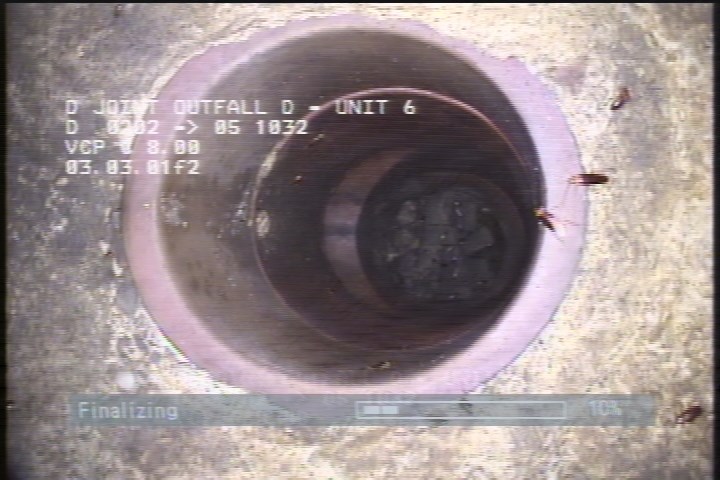

  • General Observation - MH CONN 9:00 STUB-BRICK BULKHEAD

    0 ft. - General Observation - MH CONN 9:00 STUB-BRICK BULKHEAD

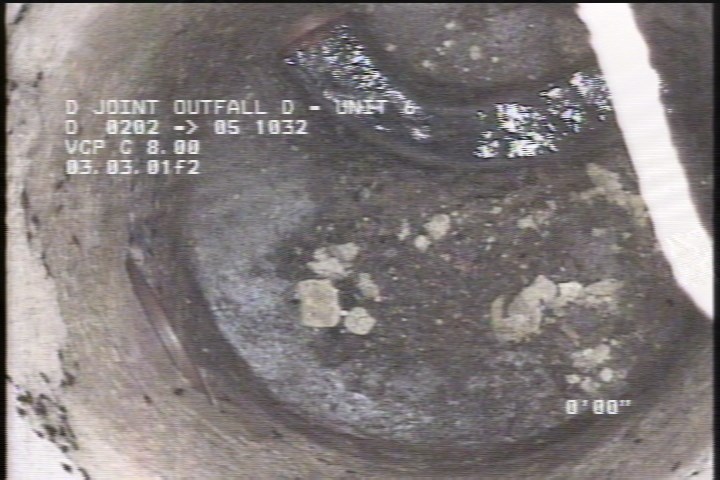

  • General Observation - 8" VCP INSIDE 30" RCP

    2 ft. - General Observation - 8" VCP INSIDE 30" RCP

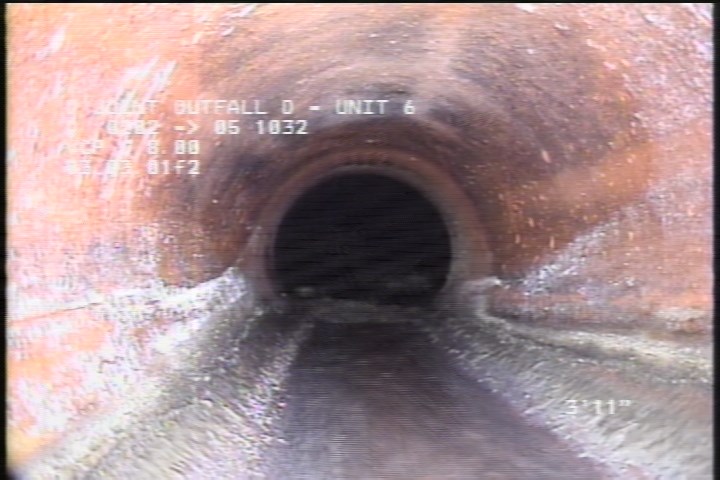

  • General Observation - 8" VCP

    3.9 ft. - General Observation - 8" VCP

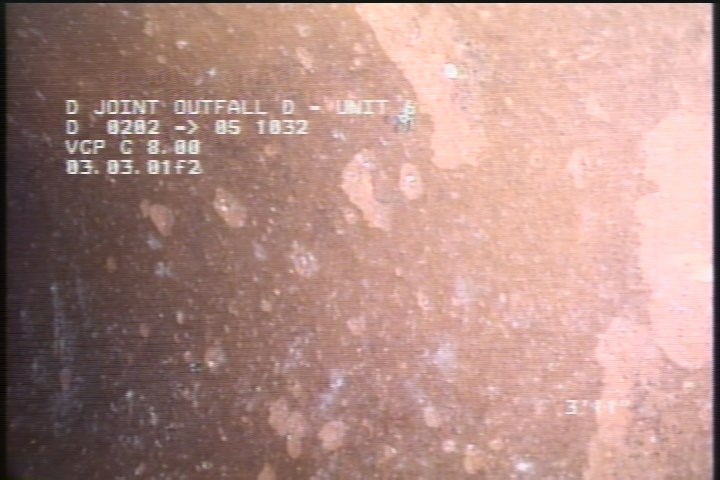

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SLIGHT

    3.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SLIGHT

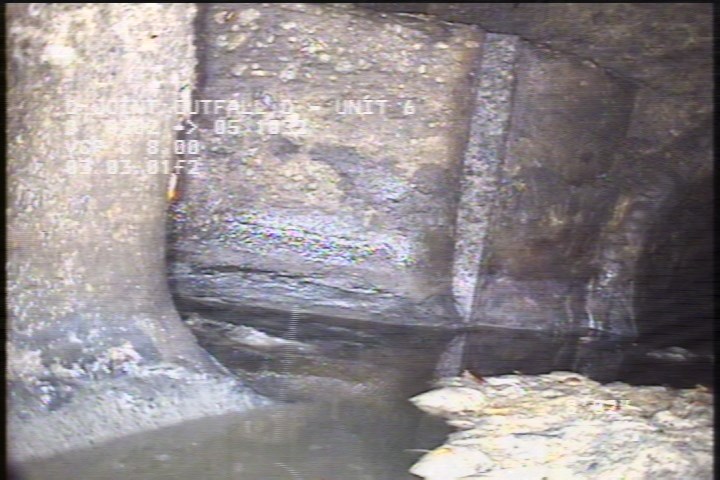

  • General Observation - MH CONN 9:00 ACTIVE

    8.2 ft. - General Observation - MH CONN 9:00 ACTIVE

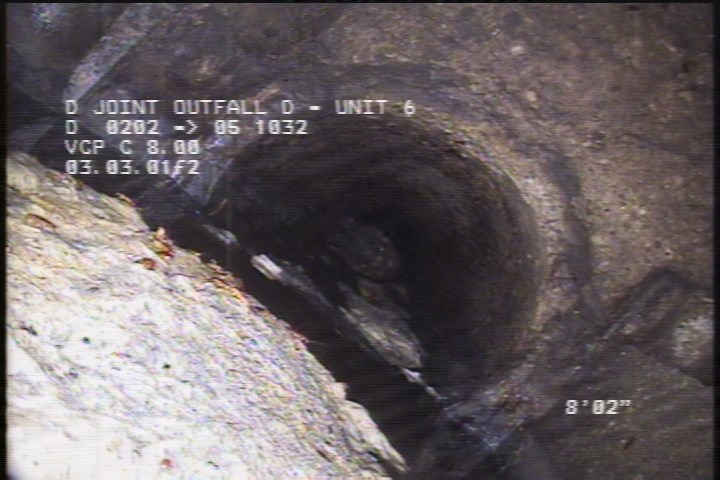

  • Deposits Settled Other, 20 TO 35 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - INSIDE MH & DOWNSTREAM

    8.2 ft. - Deposits Settled Other, 20 TO 35 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - INSIDE MH & DOWNSTREAM

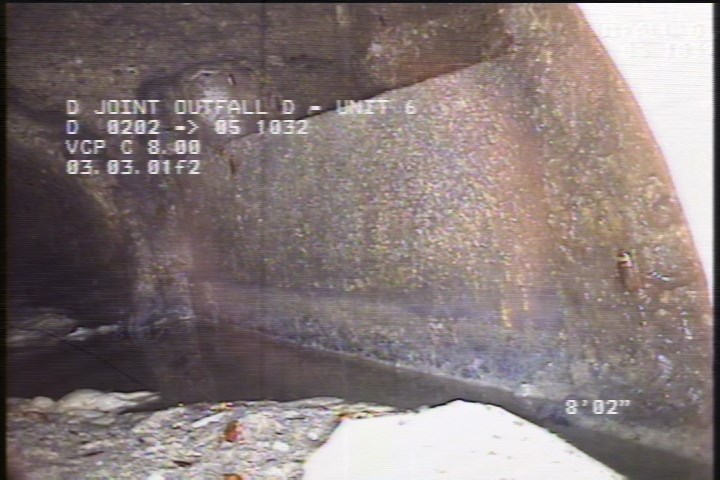

  • General Observation - MH CONN 3:00 STOPLOG IN PLACE

    8.2 ft. - General Observation - MH CONN 3:00 STOPLOG IN PLACE

All inspections of P10034Work order 0773450

Observations (11)

DistanceCodeObservation
8.2MGOMH CONN 9:00 ACTIVE
8.9AMH2:00AM
0AMH1:45AM
2MGO8" VCP INSIDE 30" RCP
0MGOMH CONN 9:00 STUB-BRICK BULKHEAD
0MWM—
0MWL—
3.9MGO8" VCP
8.2DSZINSIDE MH & DOWNSTREAM
3.9SSSSLIGHT
8.2MGOMH CONN 3:00 STOPLOG IN PLACE

Properties (8)

additional_info
8"VCP INSIDE 30" RCP
custom_field_three
SPALLING SLIGHT
custom_field_two
4
customer
LACSD
datetime
2019-06-28T00:42:11-07:00
documentation
MARTIN,REVELES,OLIVER 111,SHADLER
is_lateral_inspection
false
year_laid
20000828
