Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 26, 2019, 06:13 PM

  • B 1293_B 1292_6262019_111611.mp4

Date
06/26/2019
W/O
0771792
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01126
PipeID
P25188
Time
11:13 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8009
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Routine Assessment
Project
20190624DF_JOINT_OUTFALL_B_UNIT_6J
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
B 1293
Downstream MH
B 1292
Dir. of Survey
Downstream
Length Surveyed
120.2 ft.
Total Length
120.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1293 to B 1292
MH: B 1293MH: B 1292downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:15 AM0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area8 ft. MGP - General Photograph57.9 ft. MGP - General Photograph94 ft. MGP - General Photograph120.2 ft. AMH - Downstream Manhole, Survey Ends - 11:27 AM120.2 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)

Observation photos (4)

  • Water Level, 15 %of cross sectional area

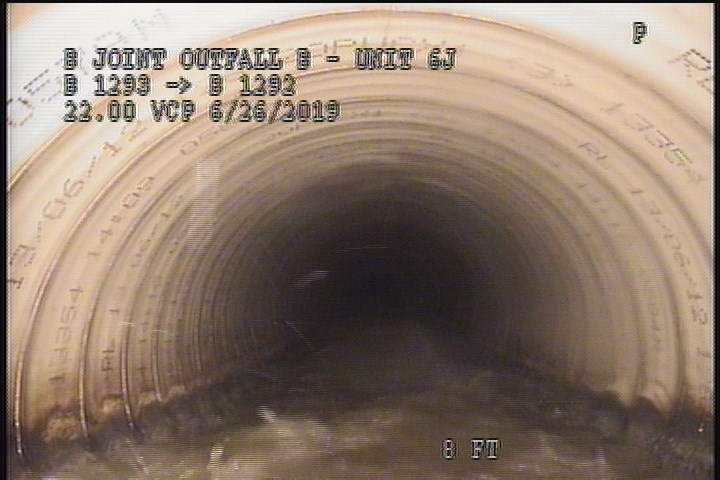

    0 ft. - Water Level, 15 %of cross sectional area

  • General Photograph

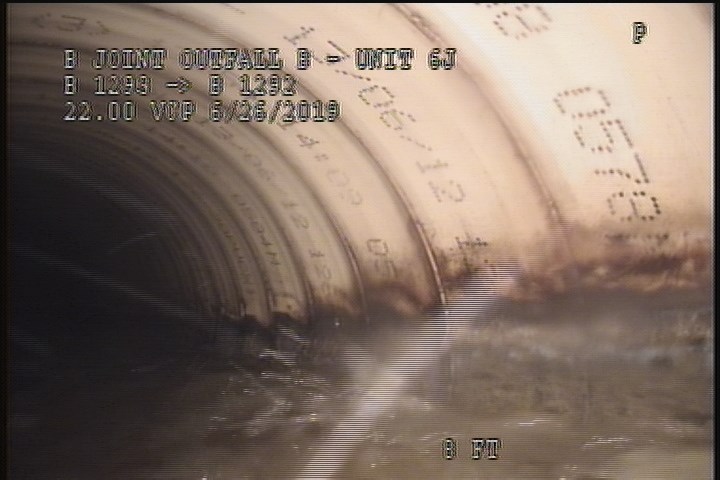

    8 ft. - General Photograph

  • General Photograph

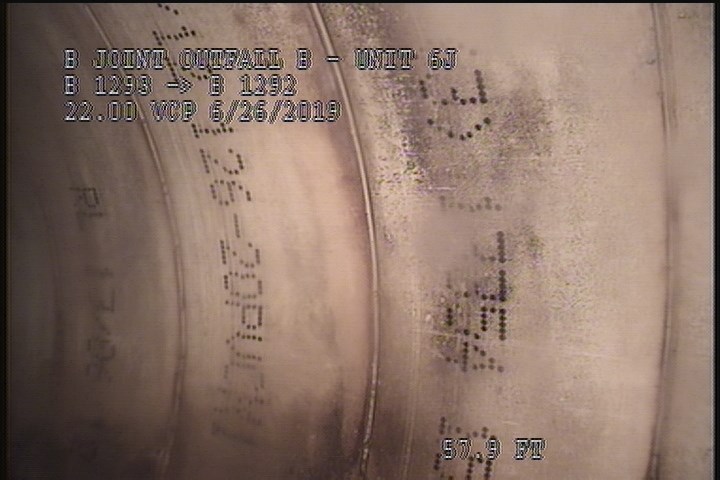

    57.9 ft. - General Photograph

  • General Photograph

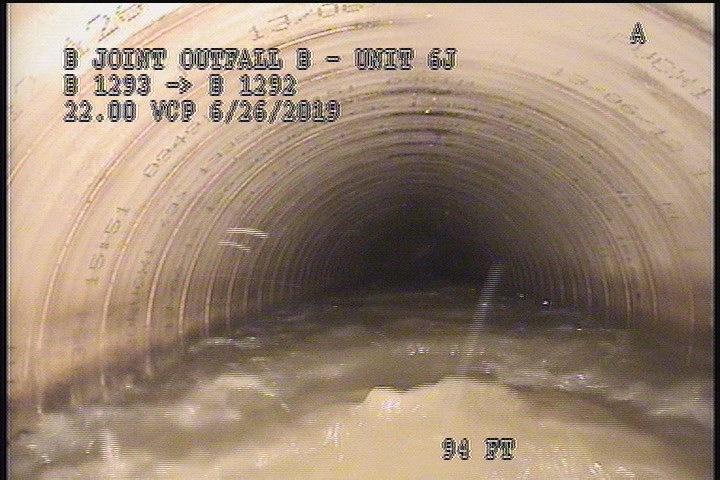

    94 ft. - General Photograph

All inspections of P25188Work order 0771792

Observations (8)

DistanceCodeObservation
120.2AMH11:27 AM
57.9MGP—
8MGP—
0AMH11:15 AM
94MGP—
120.2MGOGREASE THROUGHOUT THE REACH (5%)
0MWL—
0MWM—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-06-26T11:13:32-07:00
documentation
FRANKLIN, BRAR, CASTILLO, RUVALCABA
is_lateral_inspection
false
