Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 26, 2019, 06:01 PM

  • B 1294_B 1293_6262019_110347.mp4

Date
06/26/2019
W/O
0771792
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01126
PipeID
P25189
Time
11:01 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8009
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Routine Assessment
Project
20190624DF_JOINT_OUTFALL_B_UNIT_6J
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
B 1294
Downstream MH
B 1293
Dir. of Survey
Downstream
Length Surveyed
160.5 ft.
Total Length
160.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1294 to B 1293
MH: B 1294MH: B 1293downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:02 AM43.9 ft. MGP - General Photograph90.5 ft. MGP - General Photograph90.5 ft. MGP - General Photograph160.5 ft. MGO - General Observation - Grease Throughout The Reach (5%)160.5 ft. AMH - Downstream Manhole, Survey Ends - 11:13 AM

Observation photos (4)

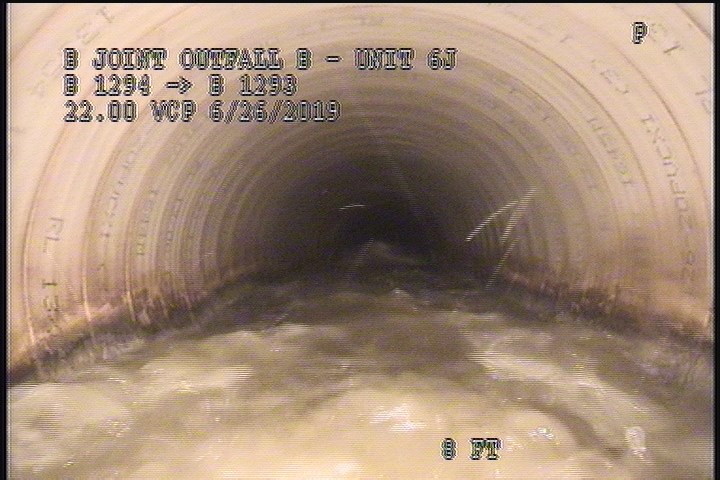

  • Water Mark, 20 %of cross sectional area

    0 ft. - Water Mark, 20 %of cross sectional area

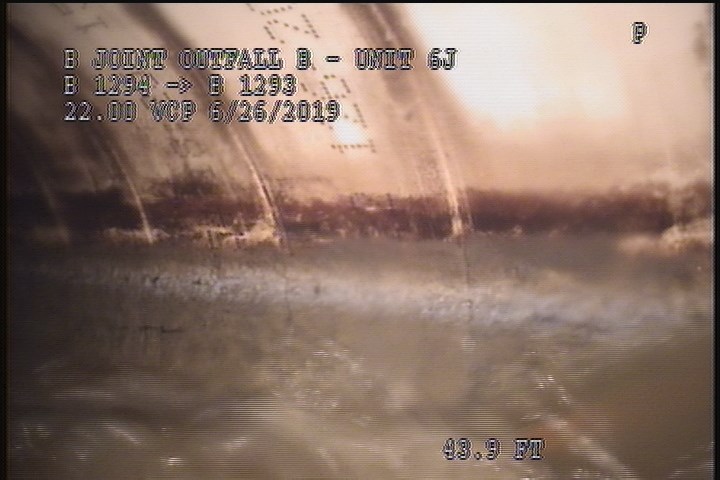

  • General Photograph

    43.9 ft. - General Photograph

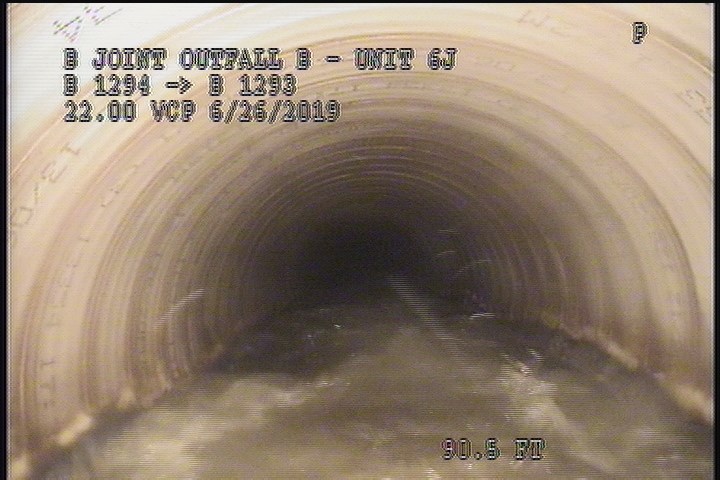

  • General Photograph

    90.5 ft. - General Photograph

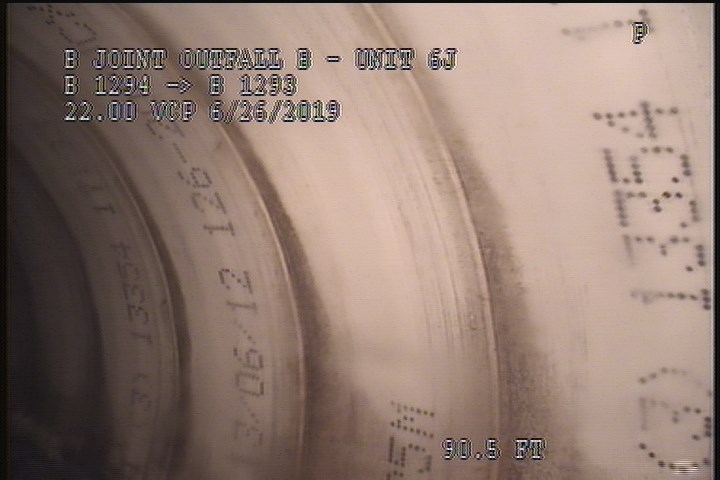

  • General Photograph

    90.5 ft. - General Photograph

All inspections of P25189Work order 0771792

Observations (8)

DistanceCodeObservation
0MWL—
90.5MGP—
160.5MGOGrease Throughout The Reach (5%)
90.5MGP—
0MWM—
43.9MGP—
160.5AMH11:13 AM
0AMH11:02 AM

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-06-26T11:01:47-07:00
documentation
FRANKLIN, BRAR, CASTILLO, RUVALCABA
is_lateral_inspection
false
