Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 26, 2019, 05:16 PM

  • B 1296_B 1295_6262019_101748.mp4

Date
06/26/2019
W/O
0771792
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01126
PipeID
P25191
Time
10:16 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8009
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Routine Assessment
Project
20190624DF_JOINT_OUTFALL_B_UNIT_6J
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
B 1296
Downstream MH
B 1295
Dir. of Survey
Downstream
Length Surveyed
49.6 ft.
Total Length
49.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1296 to B 1295
MH: B 1296MH: B 1295downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:17 AM25.9 ft. MGP - General Photograph34.1 ft. MGP - General Photograph49.6 ft. MGO - General Observation - Grease Throughout The Reach (5%)49.6 ft. AMH - Downstream Manhole, Survey Ends - 10:25 AM

Observation photos (3)

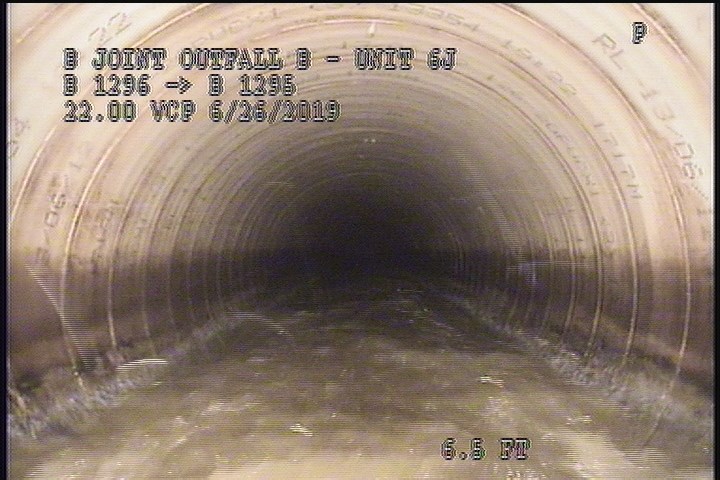

  • Water Level, 15 %of cross sectional area

    0 ft. - Water Level, 15 %of cross sectional area

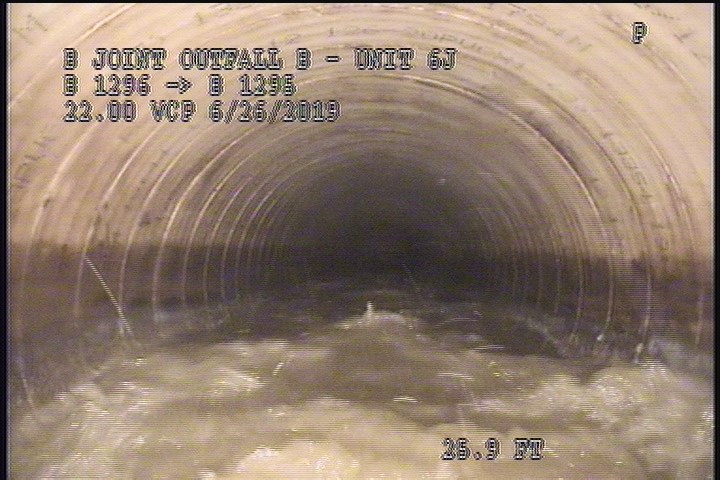

  • General Photograph

    25.9 ft. - General Photograph

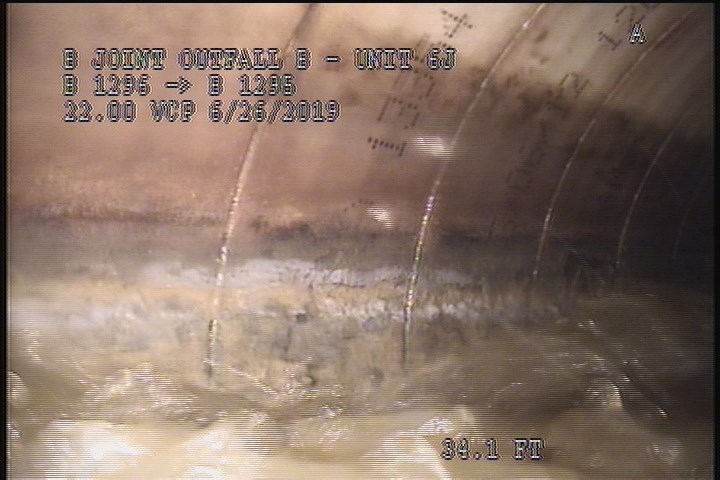

  • General Photograph

    34.1 ft. - General Photograph

All inspections of P25191Work order 0771792

Observations (7)

DistanceCodeObservation
0MWM—
0MWL—
25.9MGP—
34.1MGP—
49.6MGOGrease Throughout The Reach (5%)
0AMH10:17 AM
49.6AMH10:25 AM

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-06-26T10:16:26-07:00
documentation
FRANKLIN, BRAR, CASTILLO, RUVALCABA
is_lateral_inspection
false
