Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 26, 2019, 04:59 PM

  • B 1297_B 1296_6262019_100815.mp4

Date
06/26/2019
W/O
0771792
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01126
PipeID
P25192
Time
9:59 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8009
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Routine Assessment
Project
20190624DF_JOINT_OUTFALL_B_UNIT_6J
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
B 1297
Downstream MH
B 1296
Dir. of Survey
Downstream
Length Surveyed
83 ft.
Total Length
83 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1297 to B 1296
MH: B 1297MH: B 1296downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:01 AM8 ft. MGP - General Photograph40.6 ft. MGP - General Photograph83 ft. AMH - Downstream Manhole, Survey Ends - 10:16 AM83 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)

Observation photos (3)

  • Water Level, 15 %of cross sectional area

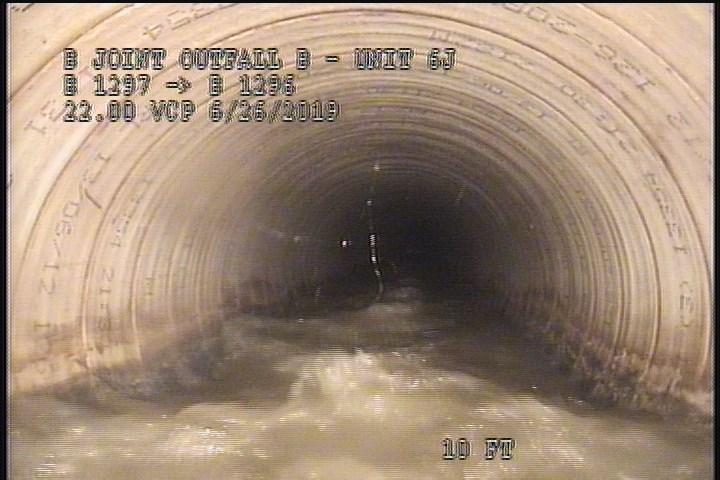

    0 ft. - Water Level, 15 %of cross sectional area

  • General Photograph

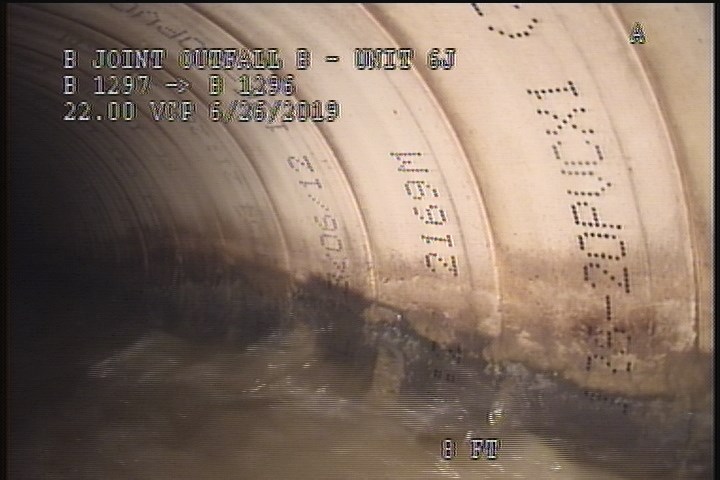

    8 ft. - General Photograph

  • General Photograph

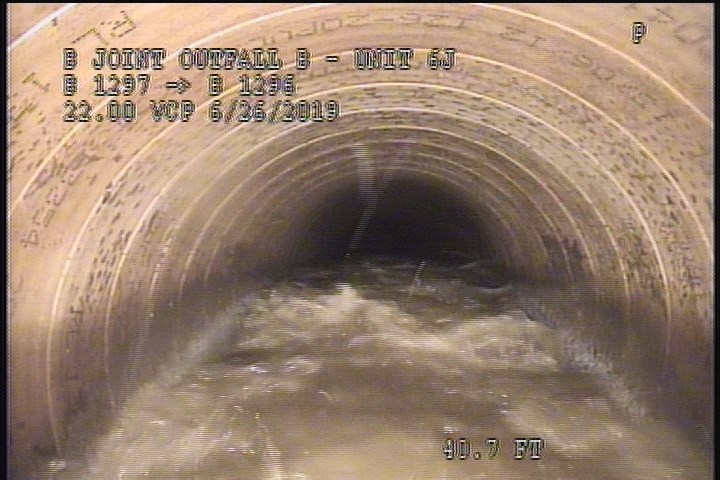

    40.6 ft. - General Photograph

All inspections of P25192Work order 0771792

Observations (7)

DistanceCodeObservation
83AMH10:16 AM
0MWM—
8MGP—
0MWL—
0AMH10:01 AM
83MGOGREASE THROUGHOUT THE REACH (5%)
40.6MGP—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-06-26T09:59:18-07:00
documentation
FRANKLIN, BRAR, CASTILLO, RUVALCABA
is_lateral_inspection
false
