Wastewater/Activity/PacpInspection/1.0Jun 25, 2019, 05:06 PM
B 1304_B 1303_6252019_111154.mp4
- Date
- 06/25/2019
- W/O
- 0771792
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z01126
- PipeID
- P25199
- Time
- 10:06 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G8008
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Woods
- Location Code
- E
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20190624DF_JOINT_OUTFALL_B_UNIT_6J
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 22 in.
- Upstream MH
- B 1304
- Downstream MH
- B 1303
- Dir. of Survey
- Downstream
- Length Surveyed
- 73 ft.
- Total Length
- 73 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

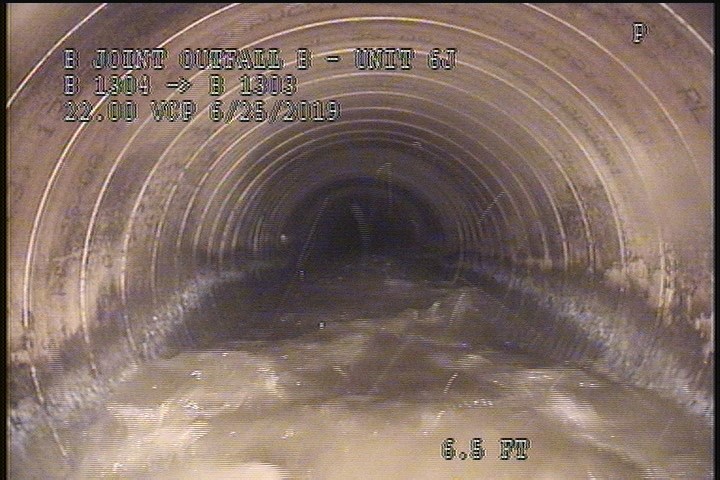

0 ft. - Water Mark, 20 %of cross sectional area

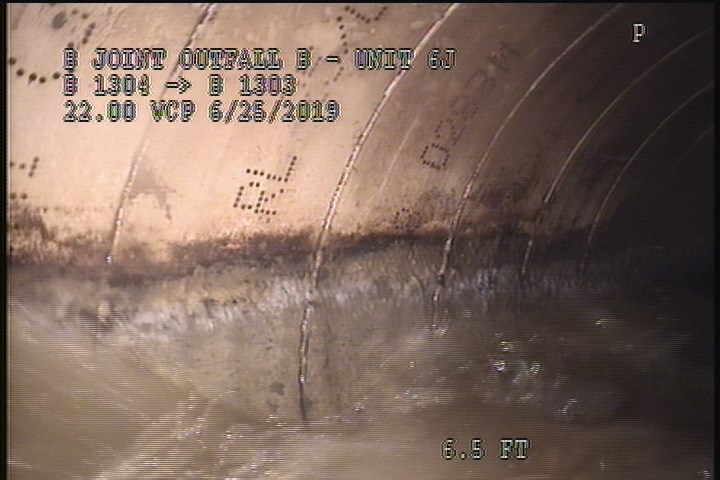

6.5 ft. - General Photograph

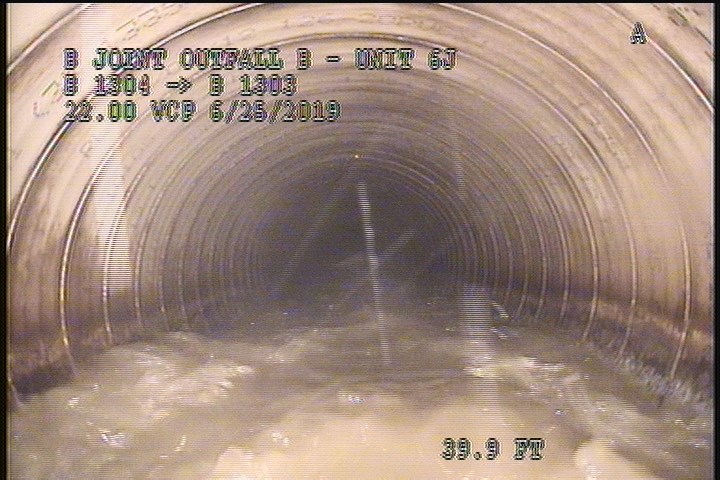

39.9 ft. - General Photograph
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 11:10 AM |
| 73 | MGO | Grease Throughout The Reach (5%) |
| 73 | AMH | 11:17 AM |
| 39.9 | MGP | — |
| 6.5 | MGP | — |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-06-25T10:06:17-07:00
- documentation
- FRANKLIN, BRAR, IGNACIO, RUVALCABA
- is_lateral_inspection
- false
