Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 25, 2019, 05:03 PM

  • B 1306_B 1305_6252019_101829.mp4

Date
06/25/2019
W/O
0771792
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01126
PipeID
P25201
Time
10:03 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8008
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Woods
Location Code
E
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Routine Assessment
Project
20190624DF_JOINT_OUTFALL_B_UNIT_6J
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
B 1306
Downstream MH
B 1305
Dir. of Survey
Downstream
Length Surveyed
160.9 ft.
Total Length
160.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1306 to B 1305
MH: B 1306MH: B 1305downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:18 AM0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area65.4 ft. MGP - General Photograph120.1 ft. MGP - General Photograph160.9 ft. MGO - General Observation - Mag Coat xx% 9 to 3 o' Clock Throughout160.9 ft. AMH - Downstream Manhole, Survey Ends - 11:04 AM

Observation photos (3)

  • Water Mark, 20 %of cross sectional area

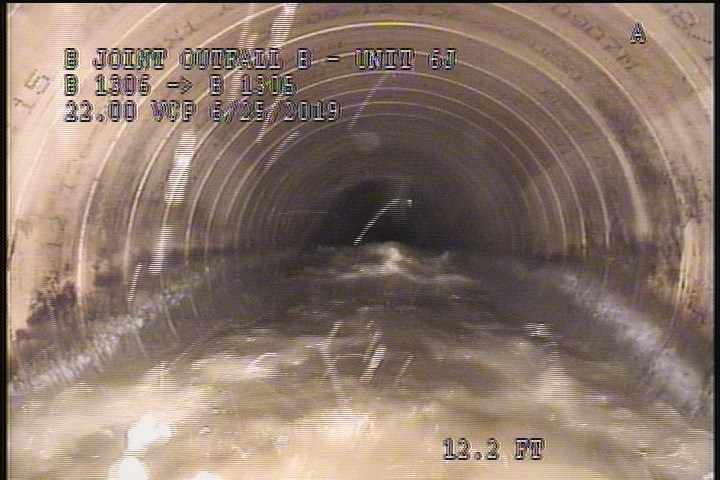

    0 ft. - Water Mark, 20 %of cross sectional area

  • General Photograph

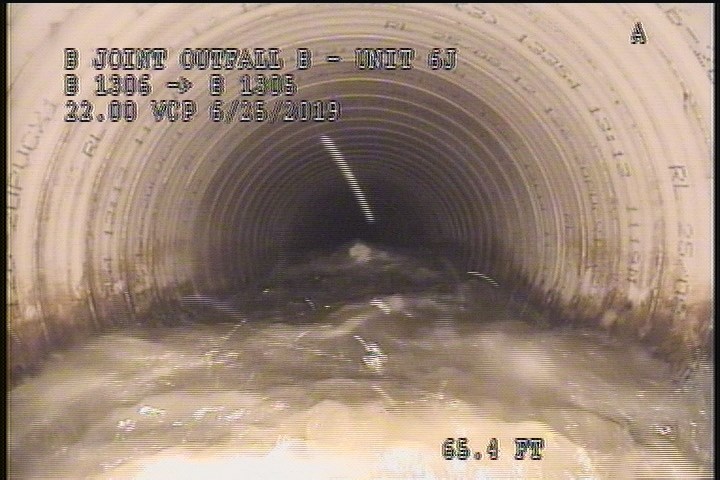

    65.4 ft. - General Photograph

  • General Photograph

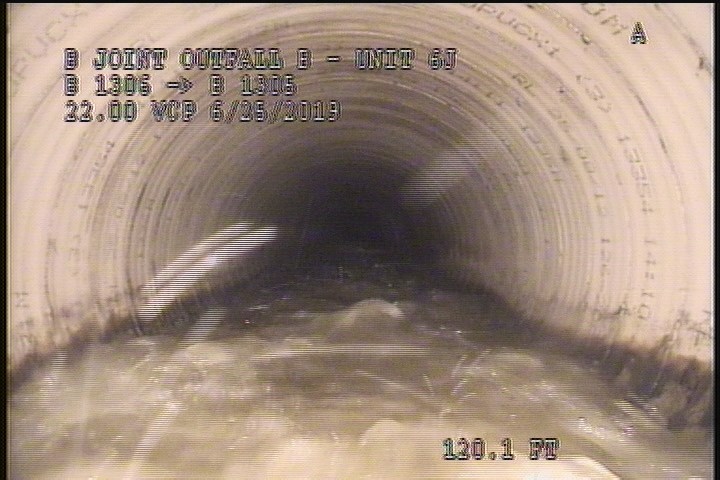

    120.1 ft. - General Photograph

All inspections of P25201Work order 0771792

Observations (7)

DistanceCodeObservation
0AMH10:18 AM
0MWL—
0MWM—
65.4MGP—
160.9MGOMag Coat xx% 9 to 3 o' Clock Throughout
160.9AMH11:04 AM
120.1MGP—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-06-25T10:03:06-07:00
documentation
FRANKLIN, BRAR, IGNACIO, RUVALCABA
is_lateral_inspection
false
