Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 25, 2019, 04:15 PM

  • B 1307_B 1306_6252019_100854.mp4

Date
06/25/2019
W/O
0771792
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01126
PipeID
P25202
Time
9:15 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8008
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Woods
Location Code
E
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Routine Assessment
Project
20190624DF_JOINT_OUTFALL_B_UNIT_6J
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
B 1307
Downstream MH
B 1306
Dir. of Survey
Downstream
Length Surveyed
73.6 ft.
Total Length
73.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1307 to B 1306
MH: B 1307MH: B 1306downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:17 AM15.6 ft. MGO - General Observation - DEBRIS39.7 ft. MGP - General Photograph73.6 ft. AMH - Downstream Manhole, Survey Ends - 10:17 AM73.6 ft. MGO - General Observation - Grease Throughout The Reach (5%)

Observation photos (3)

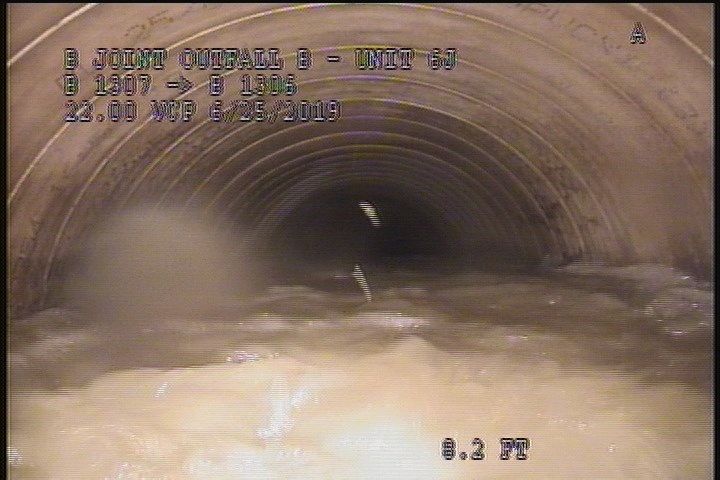

  • Water Level, 15 %of cross sectional area

    0 ft. - Water Level, 15 %of cross sectional area

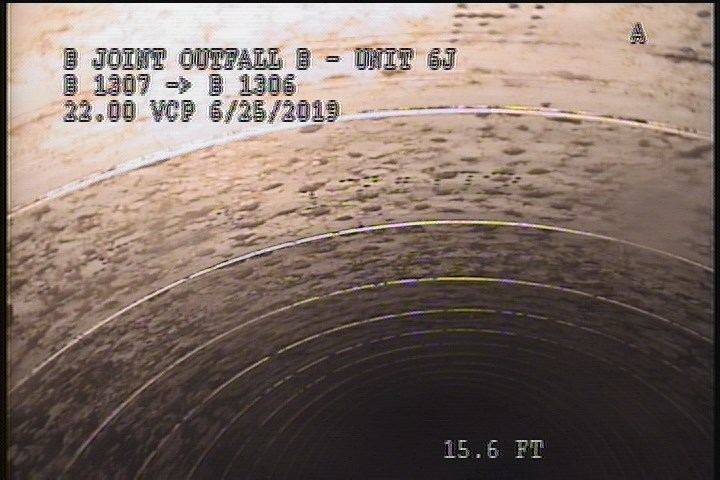

  • General Observation - DEBRIS

    15.6 ft. - General Observation - DEBRIS

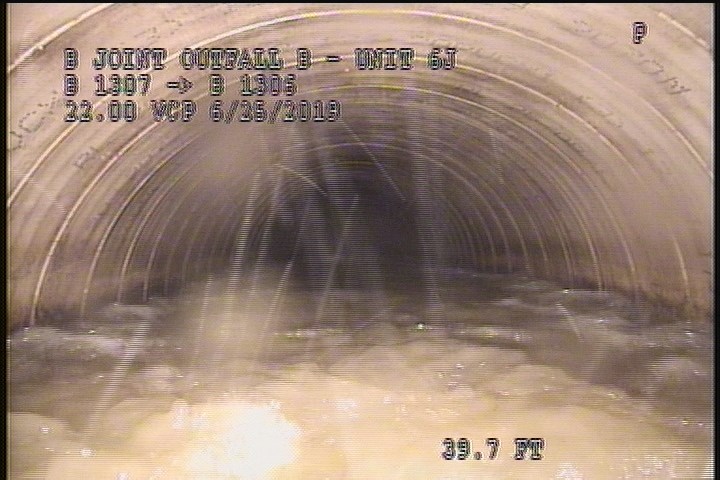

  • General Photograph

    39.7 ft. - General Photograph

All inspections of P25202Work order 0771792

Observations (7)

DistanceCodeObservation
0MWL—
73.6AMH10:17 AM
0MWM—
0AMH9:17 AM
15.6MGODEBRIS
73.6MGOGrease Throughout The Reach (5%)
39.7MGP—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-06-25T09:15:30-07:00
documentation
FRANKLIN, BRAR, IGNACIO, RUVALCABA
is_lateral_inspection
false
