Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 24, 2019, 04:27 PM

  • B 1312_B 1311_6242019_111009.mp4

Date
06/24/2019
W/O
0771792
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01126
PipeID
P25207
Time
9:27 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8007
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Woods
Location Code
E
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Routine Assessment
Project
20190624DF_JOINT_OUTFALL_B_UNIT_6J
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
B 1312
Downstream MH
B 1311
Dir. of Survey
Downstream
Length Surveyed
89.9 ft.
Total Length
89.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1312 to B 1311
MH: B 1312MH: B 1311downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:31 AM0.1 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MWL - Water Level, 15 %of cross sectional area38.5 ft. MGP - General Photograph53.6 ft. MGP - General Photograph89.9 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)89.9 ft. AMH - Downstream Manhole, Survey Ends - 11:19 AM

Observation photos (4)

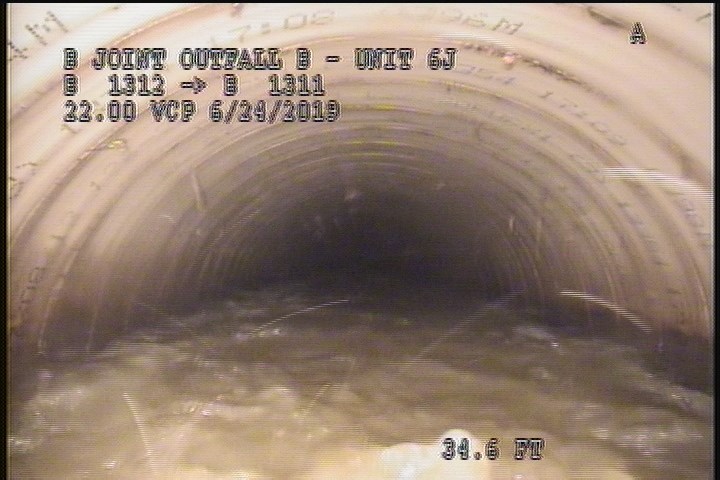

  • Water Mark, 20 %of cross sectional area

    0.1 ft. - Water Mark, 20 %of cross sectional area

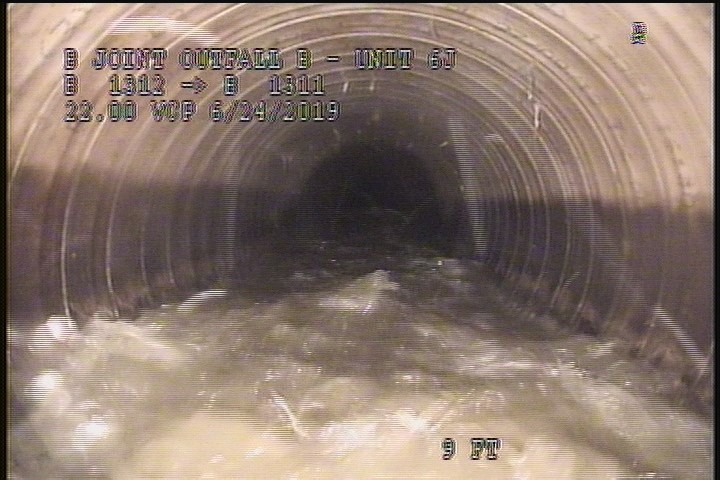

  • Water Level, 15 %of cross sectional area

    0.1 ft. - Water Level, 15 %of cross sectional area

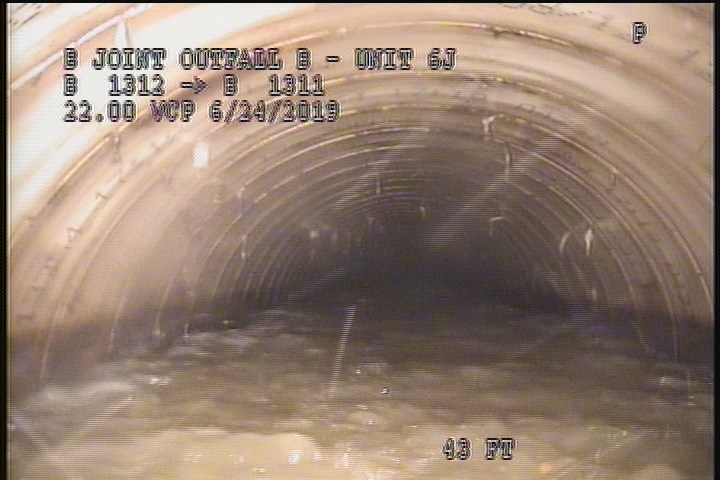

  • General Photograph

    38.5 ft. - General Photograph

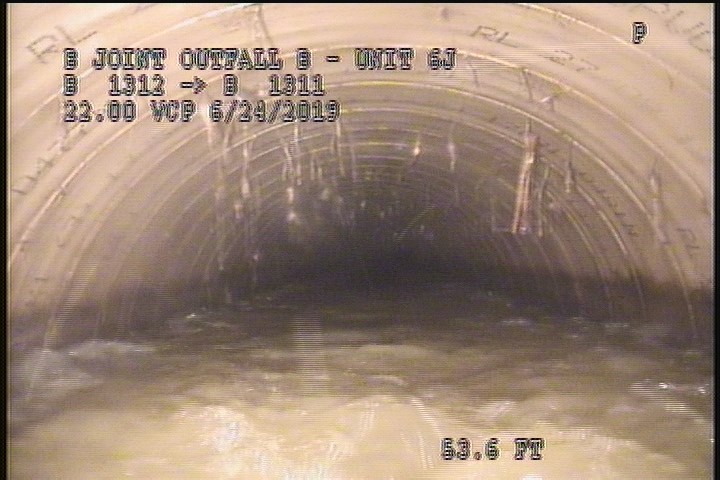

  • General Photograph

    53.6 ft. - General Photograph

All inspections of P25207Work order 0771792

Observations (7)

DistanceCodeObservation
89.9MGOGREASE THROUGHOUT THE REACH (5%)
0.1MWM—
53.6MGP—
89.9AMH11:19 AM
0AMH9:31 AM
38.5MGP—
0.1MWL—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-06-24T09:27:52-07:00
documentation
FRANKLIN, BRAR, IGNACIO, RUVALCABA
is_lateral_inspection
false
