Wastewater/Activity/PacpInspection/1.0Jun 19, 2019, 08:43 AM
01 0952_01 0951_6192019_020116.mp4
- Date
- 06/19/2019
- W/O
- 0777634
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00228
- PipeID
- P01789
- Time
- 1:43 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1237
- Sewer Name
- 01 WRIGHT ROAD TRUNK
- City
- SOUTH GATE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Maintenance Related
- Project
- 20190618MDM_WRIGHT_ROAD_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 01 0952
- Downstream MH
- 01 0951
- Dir. of Survey
- Downstream
- Length Surveyed
- 297.9 ft.
- Total Length
- 297.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

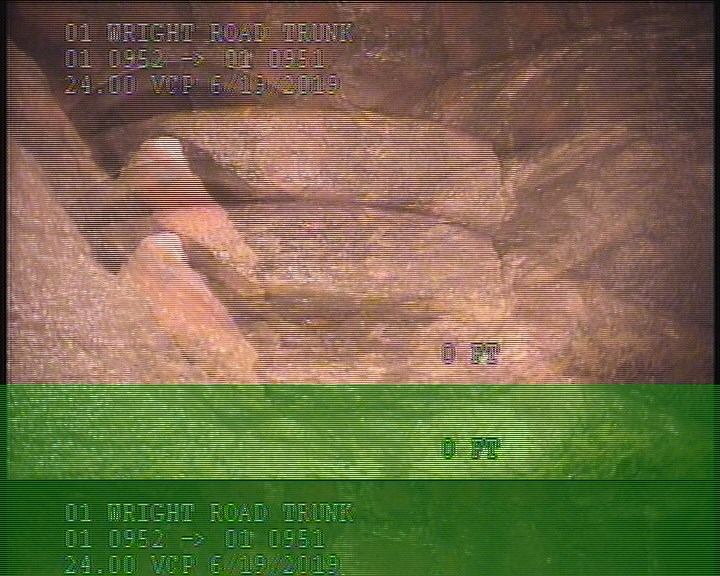

0 ft. - General Observation - Conn. @ Mh, 9 O' Clock. OPEN

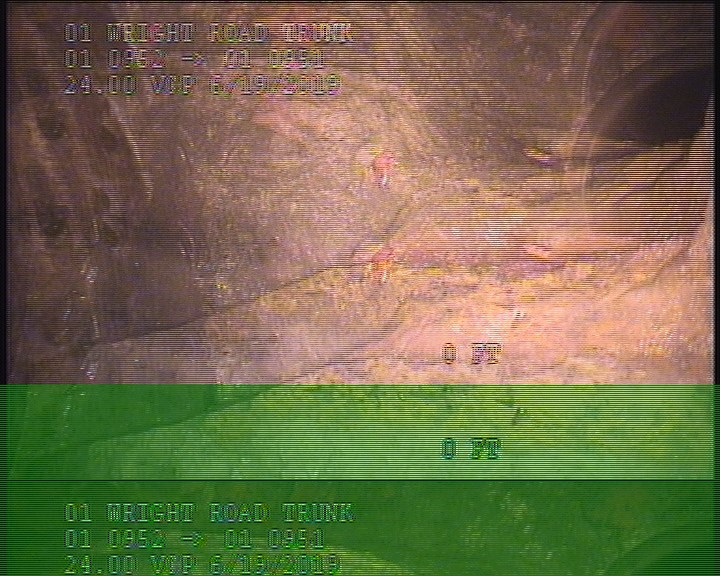

0 ft. - General Observation - MISSING CHANNEL WALL 2:00 2.3' LONG

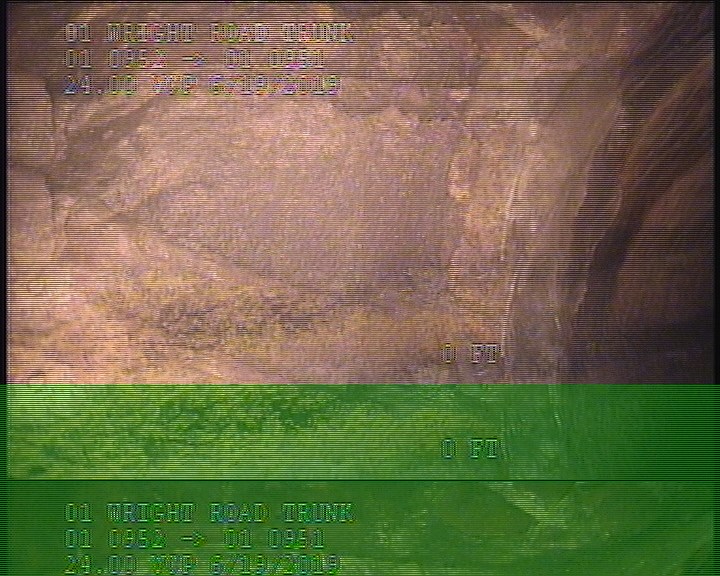

0 ft. - General Observation - MISSING CHANNEL WALL 8:00 2.3' LONG
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Capped |
| 2 | MGO | PIPE HAS A CIPP LINER |
| 297.9 | AMH | 2:15AM |
| 0 | AMH | 2:00AM |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. OPEN |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | MGO | MISSING CHANNEL WALL 2:00 2.3' LONG |
| 0 | MGO | MISSING CHANNEL WALL 8:00 2.3' LONG |
Properties (6)
- additional_info
- LOOKING FOR MISSING VCP
- customer
- LACSD
- datetime
- 2019-06-19T01:43:50-07:00
- documentation
- MARTIN,REVELES,OLIVER 111,SHADLER
- is_lateral_inspection
- false
- lining
- CIPP
