Wastewater/Activity/PacpInspection/1.0Jun 20, 2019, 06:12 PM
H 0819_H 0818_6202019_120247.mp4
- Date
- 06/20/2019
- W/O
- 0771771
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00934
- PipeID
- P20374
- Time
- 11:12 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G8004
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A RELIEF
- City
- WHITTIER
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- 20190618DF_JOINT_OUTFALL_H_UNIT_5A_RELIEF
- Material
- RCP-PTL
- Shape
- Circular
- Height
- 84 in.
- Upstream MH
- H 0819
- Downstream MH
- H 0818
- Dir. of Survey
- Downstream
- Length Surveyed
- 696 ft.
- Total Length
- 696 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)

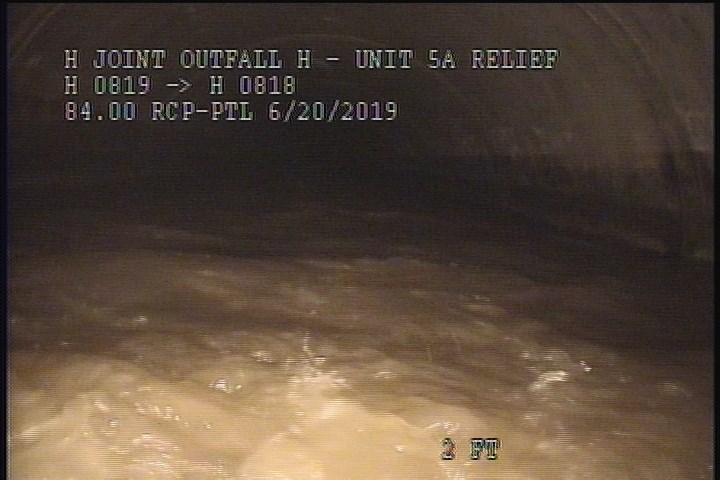

0 ft. - Water Level, 15 %of cross sectional area

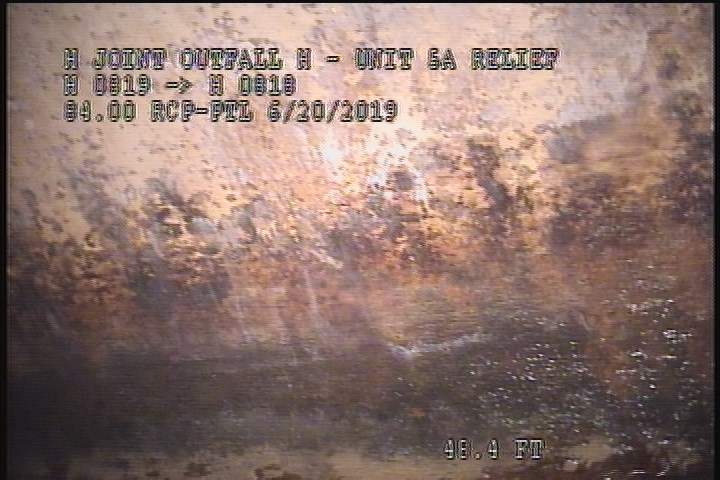

48.4 ft. - General Photograph

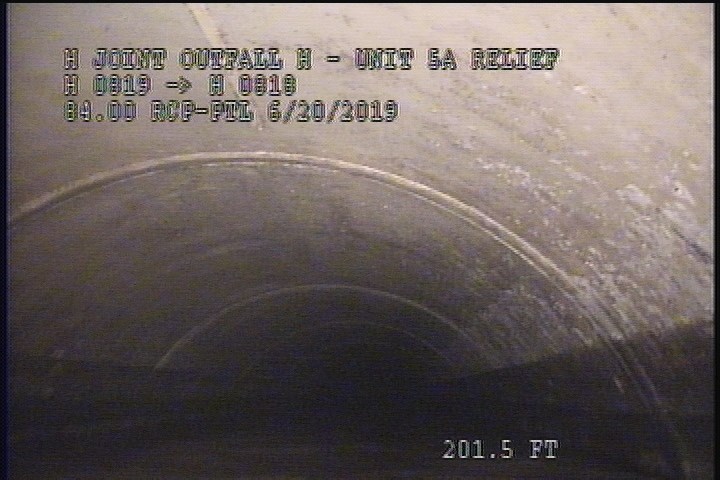

201.5 ft. - General Photograph

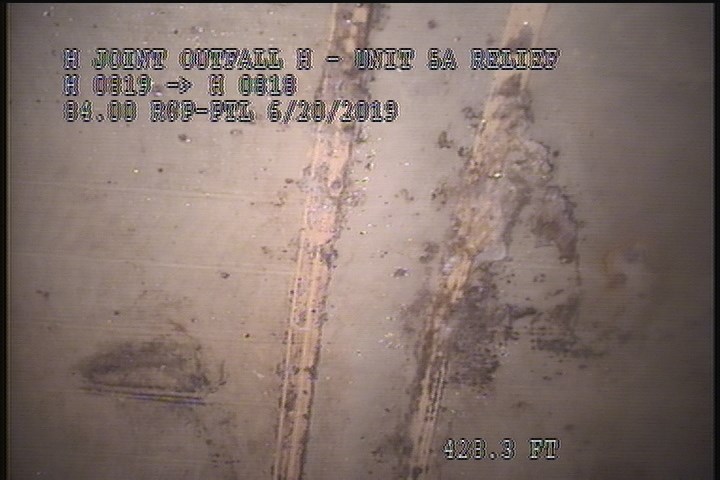

428.3 ft. - General Photograph

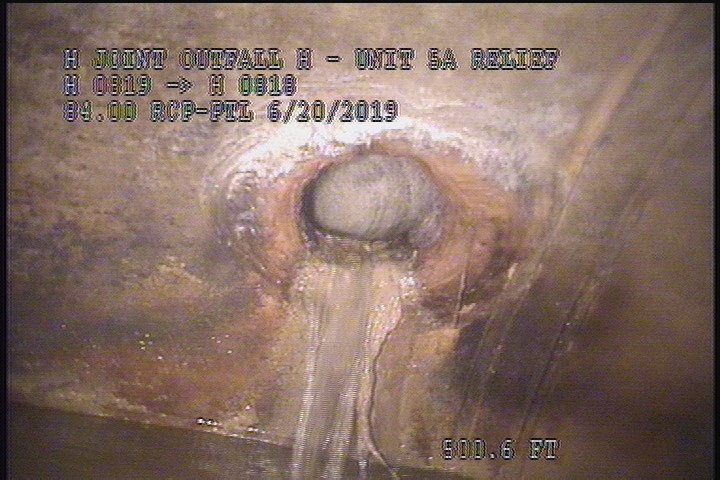

500.6 ft. - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 500.6 | TFA | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 12:02 PM |
| 201.5 | MGP | — |
| 428.3 | MGP | — |
| 48.4 | MGP | — |
| 696 | AMH | 12:29 PM |
| 696 | MGO | GREASE THROUGHOUT THE REACH (5%) |
Properties (4)
- customer
- LACSD
- datetime
- 2019-06-20T11:12:44-07:00
- documentation
- FRANKLIN, BRAR, IGNACIO, RUVALCABA
- is_lateral_inspection
- false
