Wastewater/Activity/PacpInspection/1.0Jun 18, 2019, 05:26 PM
H 0905_H 0904_6182019_114246.mp4
- Date
- 06/18/2019
- W/O
- 0771771
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00934
- PipeID
- P20378
- Time
- 10:26 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G8002
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A RELIEF
- City
- WHITTIER
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- 20190618DF_JOINT_OUTFALL_H_UNIT_5A_RELIEF
- Material
- RCP-PTL
- Shape
- Circular
- Height
- 84 in.
- Upstream MH
- H 0905
- Downstream MH
- H 0904
- Dir. of Survey
- Downstream
- Length Surveyed
- 558 ft.
- Total Length
- 558 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)

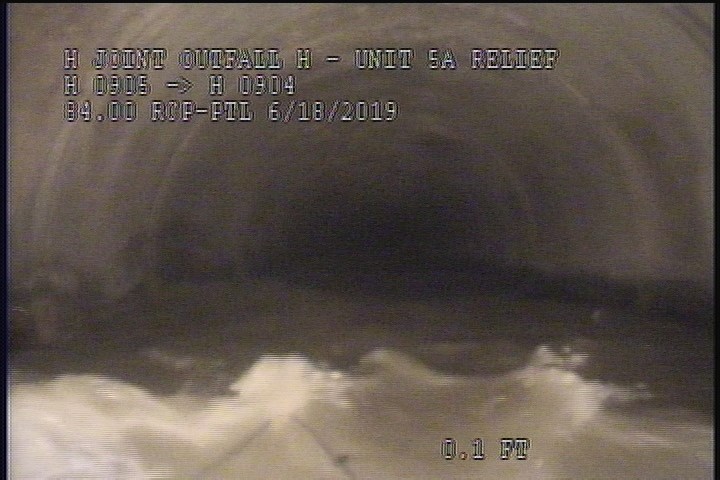

0 ft. - Water Level, 20 %of cross sectional area

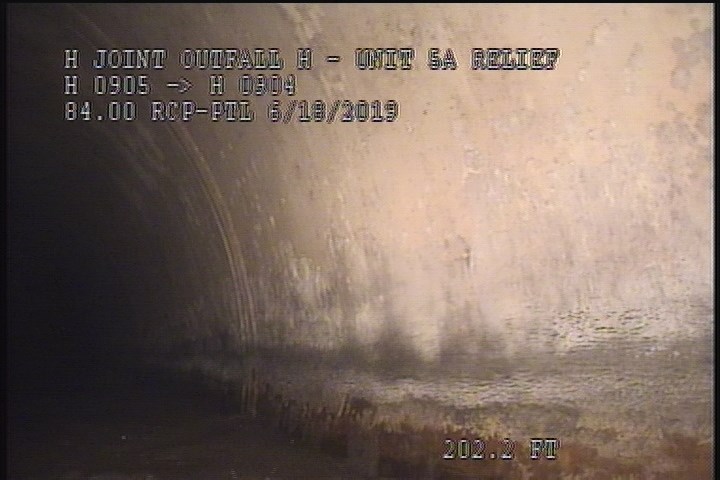

202.2 ft. - General Photograph

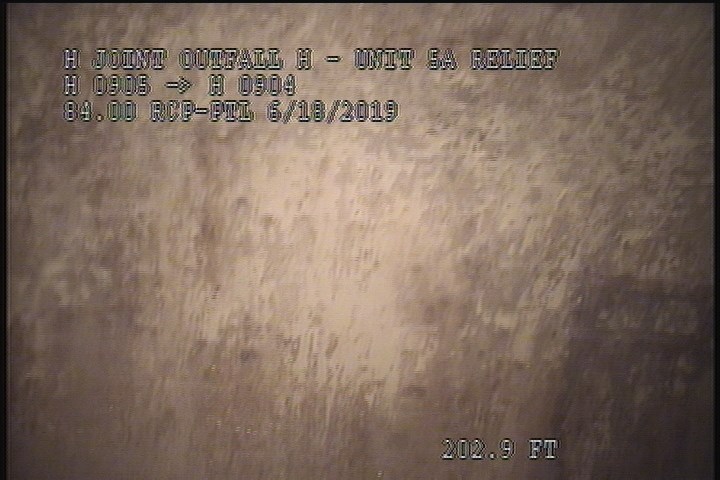

202.9 ft. - General Photograph

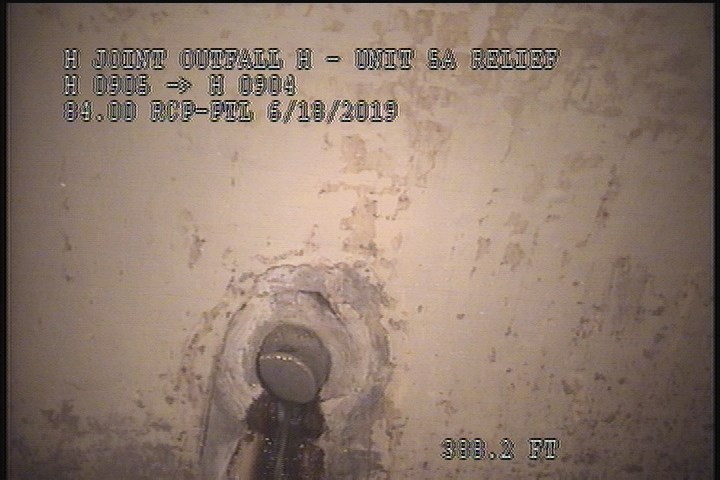

388.2 ft. - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"

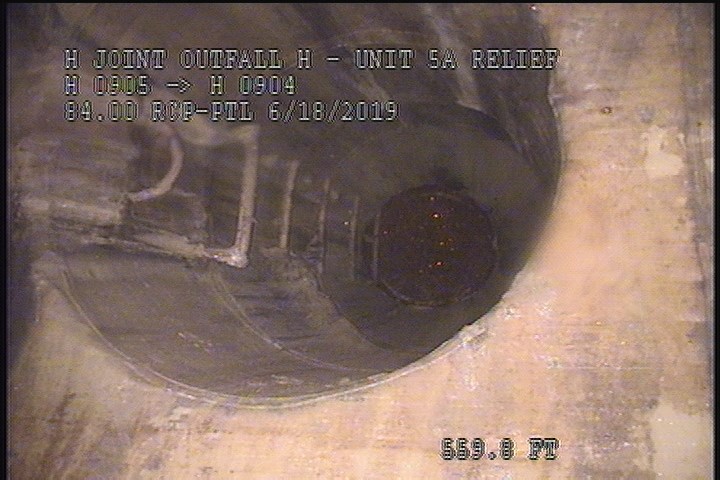

558 ft. - General Photograph
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 202.9 | MGP | — |
| 388.2 | TFA | — |
| 0 | MWL | — |
| 558 | MGP | — |
| 0 | MWM | — |
| 558 | AMH | 11:53 AM |
| 557.4 | MGO | Mag Coat xx% 9 to 3 o' Clock Throughout |
| 0 | AMH | 10"50 AM |
| 202.2 | MGP | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-06-18T10:26:45-07:00
- documentation
- FRANKLIN, BRAR, IGNACIO, RUVALCABA
- is_lateral_inspection
- false
