Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 21, 2019, 05:09 PM

  • 01 0975_01 0974_6212019_101335.mp4

Date
06/21/2019
W/O
0777637
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00228
PipeID
P01813
Time
10:09 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8005
Sewer Name
01 WRIGHT ROAD TRUNK
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Maintenance Related
Project
20190617DF_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0975
Downstream MH
01 0974
Dir. of Survey
Downstream
Length Surveyed
331 ft.
Total Length
331 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 01 0975 to 01 0974
MH: 01 0975MH: 01 0974downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 10:10 AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active9 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start10.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start234.3 ft. MGO - General Observation - DEBRIS UNDER WATER LEVEL245.8 ft. MGO - General Observation - DEBRIS UNDER WATER LEVEL263 ft. MGO - General Observation - DEBRIS UNDER WATER LEVEL294.2 ft. MGO - General Observation - DEBRIS UNDER WATER LEVEL329 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish329 ft. MGO - General Observation - Grease Throughout The Reach (5%)329 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish329 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish331 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active331 ft. MGO - General Observation - ROACHES @ MH331 ft. AMH - Downstream Manhole, Survey Ends - 10:33 AM

Observation photos (7)

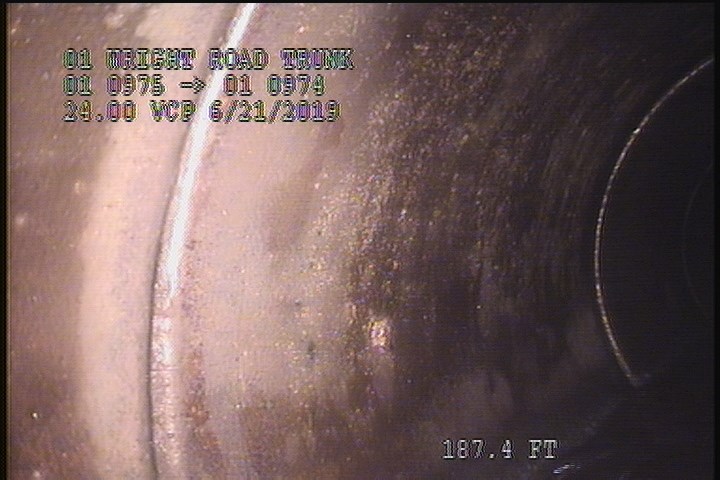

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

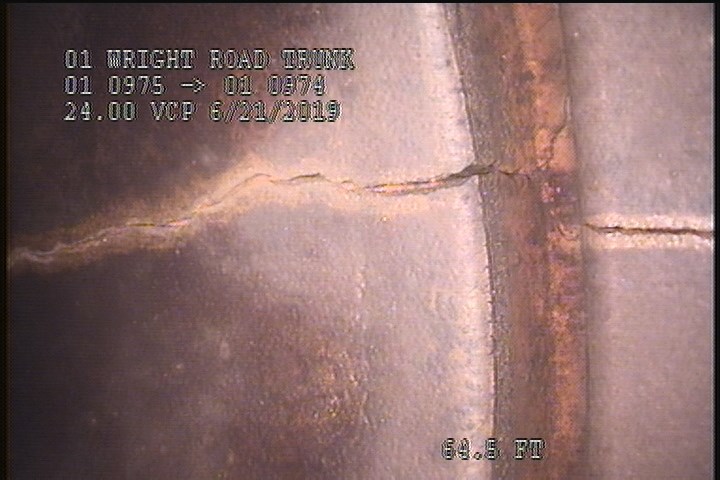

  • Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    9 ft. - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

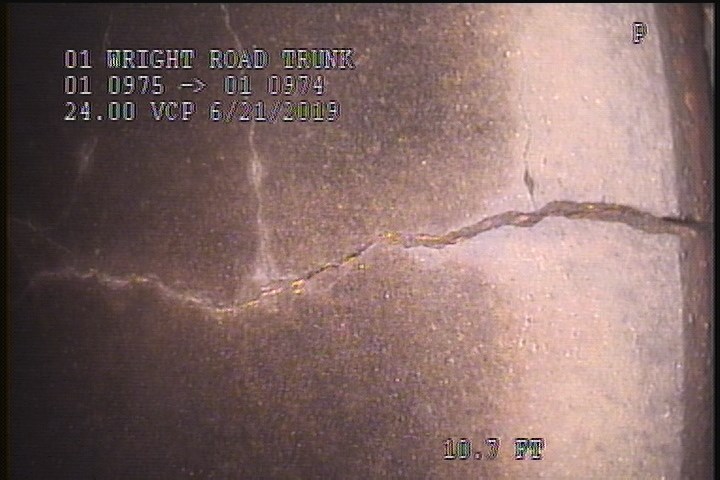

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

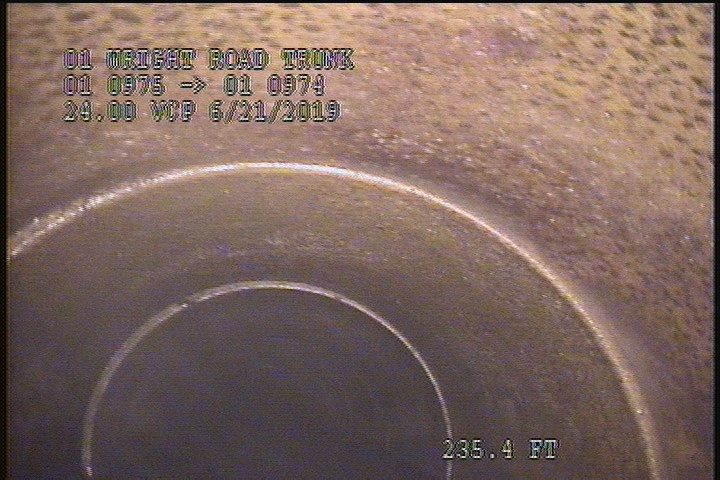

  • General Observation - DEBRIS UNDER WATER LEVEL

    234.3 ft. - General Observation - DEBRIS UNDER WATER LEVEL

  • General Observation - DEBRIS UNDER WATER LEVEL

    245.8 ft. - General Observation - DEBRIS UNDER WATER LEVEL

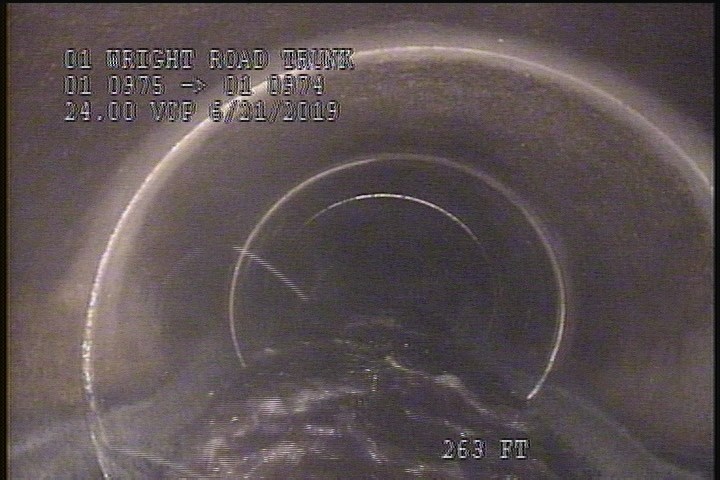

  • General Observation - DEBRIS UNDER WATER LEVEL

    263 ft. - General Observation - DEBRIS UNDER WATER LEVEL

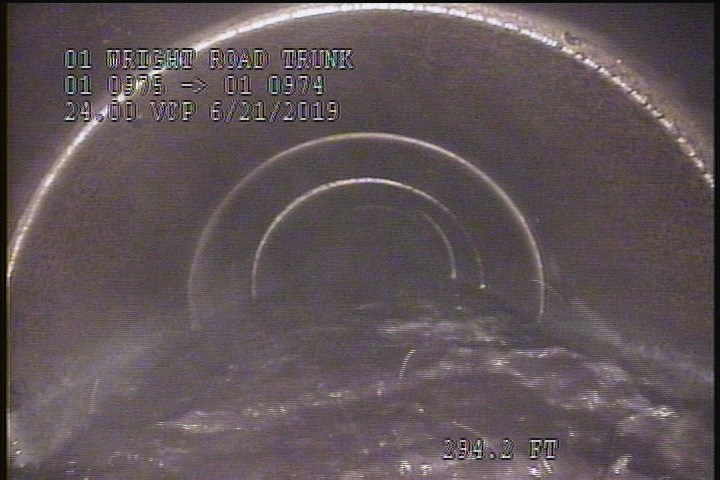

  • General Observation - DEBRIS UNDER WATER LEVEL

    294.2 ft. - General Observation - DEBRIS UNDER WATER LEVEL

All inspections of P01813Work order 0777637

Observations (20)

DistanceCodeObservation
9CS—
329SSS—
263MGODEBRIS UNDER WATER LEVEL
0MWL—
331MGOConn. @ Mh, 3 O' Clock. Active
2MGOConn. @ Mh, 9 O' Clock. OPEN
2SSS—
329MGOGrease Throughout The Reach (5%)
329CM—
245.8MGODEBRIS UNDER WATER LEVEL
2MGOConn. @ Mh, 3 O' Clock. Active
0MGOROACHES @ MH
329CS—
234.3MGODEBRIS UNDER WATER LEVEL
0AMH10:10 AM
10.7CM—
331MGOROACHES @ MH
331AMH10:33 AM
0MWM—
294.2MGODEBRIS UNDER WATER LEVEL

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-06-21T10:09:29-07:00
documentation
FRANKLIN, IGNACIO, RUVALCABA
is_lateral_inspection
false
