  • 01 0976_01 0975_6212019_095224.mp4

Date
06/21/2019
W/O
0777637
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00228
PipeID
P01814
Time
9:42 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8005
Sewer Name
01 WRIGHT ROAD TRUNK
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Maintenance Related
Project
20190617DF_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0976
Downstream MH
01 0975
Dir. of Survey
Downstream
Length Surveyed
334 ft.
Total Length
334 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 01 0976 to 01 0975
MH: 01 0976MH: 01 0975downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:47 AM0.1 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0.1 ft. MWL - Water Level, 15 %of cross sectional area2 ft. MGO - General Observation - ROACHES @ MH2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active235.8 ft. MGP - General Photograph - LINK PIPE237 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - DEBRIS UNER WATER237 ft. MGO - General Observation - DEBRIS UNDE WATER LEVEL237.5 ft. MGP - General Photograph - LINK PIPE256.3 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish - DEBRIS UNDER WATER305.8 ft. MGP - General Photograph329.3 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish329.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish329.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish332 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN332 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active333.9 ft. MGO - General Observation - ROACHES @ MH333.9 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)334 ft. AMH - Downstream Manhole, Survey Ends - 10:08 AM

Observation photos (3)

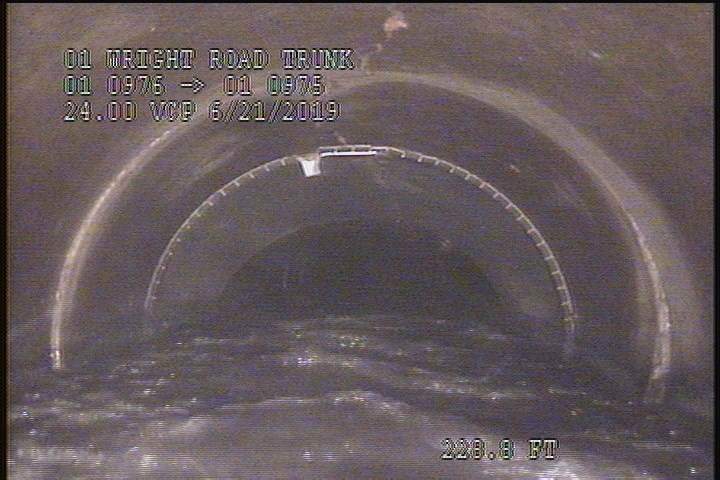

  • General Photograph - LINK PIPE

    235.8 ft. - General Photograph - LINK PIPE

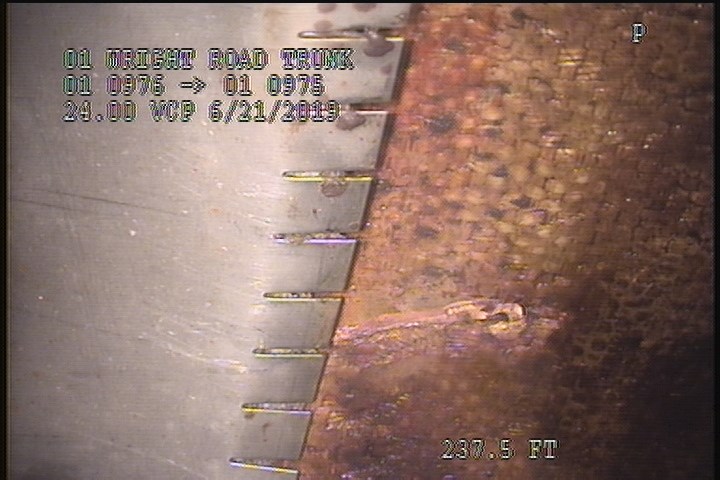

  • General Photograph - LINK PIPE

    237.5 ft. - General Photograph - LINK PIPE

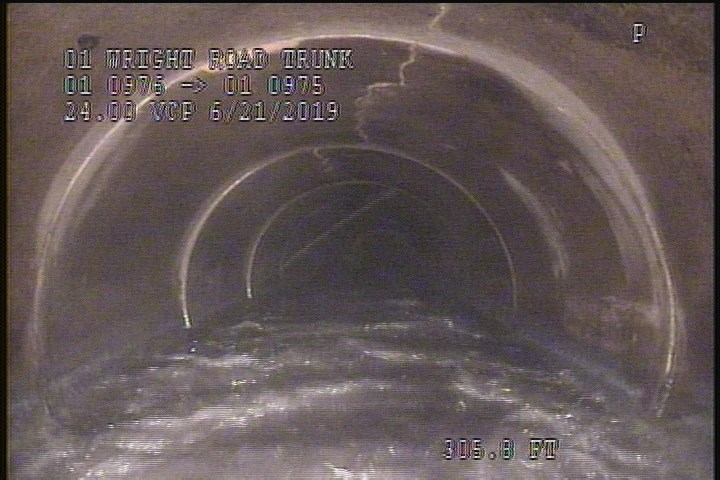

  • General Photograph

    305.8 ft. - General Photograph

All inspections of P01814Work order 0777637

Observations (23)

DistanceCodeObservation
0AMH9:47 AM
237DSZDEBRIS UNER WATER
332MGOConn. @ Mh, 9 O' Clock. OPEN
305.8MGP—
2MGOROACHES @ MH
235.8MGPLINK PIPE
333.9MGOROACHES @ MH
329.3CS—
2SSS—
256.3DSZDEBRIS UNDER WATER
332MGOConn. @ Mh, 3 O' Clock. Active
237MGODEBRIS UNDE WATER LEVEL
2CS—
333.9MGOGREASE THROUGHOUT THE REACH (5%)
0.1MWM—
329.3SSS—
0.1MGOConn. @ Mh, 3 O' Clock. Active
0.1MWL—
2CM—
2MGOConn. @ Mh, 9 O' Clock. Active
237.5MGPLINK PIPE
329.3CM—
334AMH10:08 AM

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-06-21T09:42:26-07:00
documentation
FRANKLIN, BRAR, IGNACIO, RUVALCABA
is_lateral_inspection
false
