Wastewater/Activity/PacpInspection/1.0Jun 17, 2019, 04:14 PM

  • 01 0948_01 0947_6172019_092044.mp4

Date
06/17/2019
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00228
PipeID
P01785
Time
9:14 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8001
Sewer Name
01 WRIGHT ROAD TRUNK
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Maintenance Related
Project
20190617DF_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0948
Downstream MH
01 0947
Dir. of Survey
Downstream
Length Surveyed
91.6 ft.
Total Length
91.6 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 01 0948 to 01 0947
MH: 01 0948MH: 01 0947downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:16 AM0.1 ft. MWM - Water Mark, 25 %of cross sectional area0.1 ft. MWL - Water Level, 25 %of cross sectional area3.2 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start3.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start15.2 ft. MGP - General Photograph38.8 ft. MWLS - Water Level, Sag in pipe, 10 %of cross sectional area, Start70.3 ft. MGP - General Photograph91.6 ft. MWLS - Water Level, Sag in pipe, 10 %of cross sectional area, Finish91.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish91.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish91.6 ft. MGO - General Observation - Grease Throughout The Reach (5%)91.6 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish91.6 ft. MSA - Survey Abandoned - HIGH WATER

Observation photos (7)

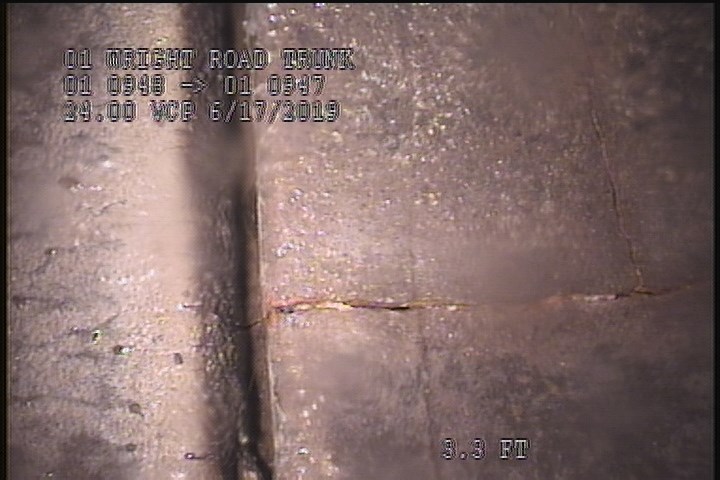

  • Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    3.2 ft. - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

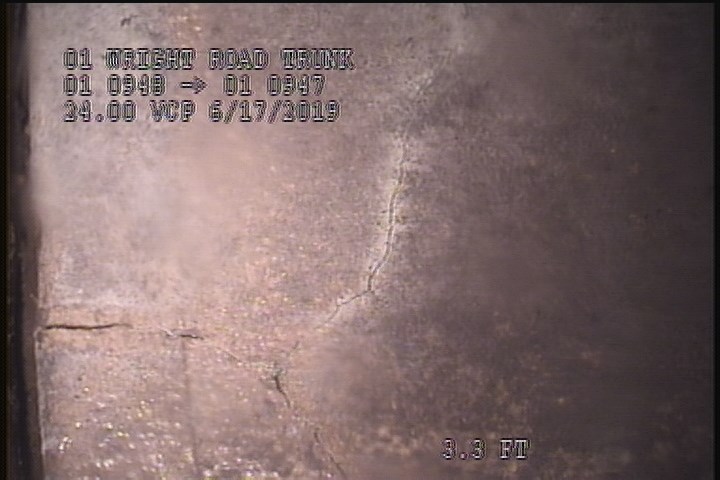

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

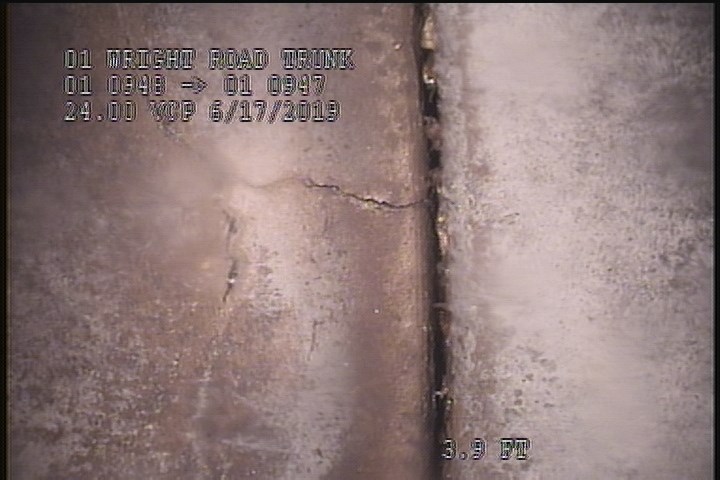

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

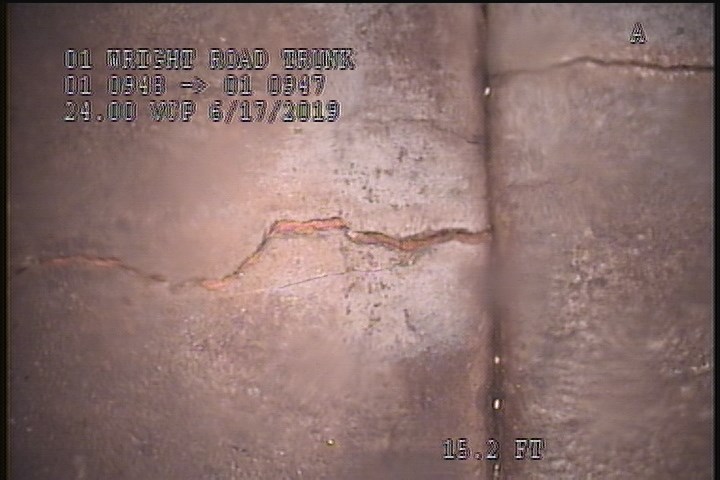

  • General Photograph

    15.2 ft. - General Photograph

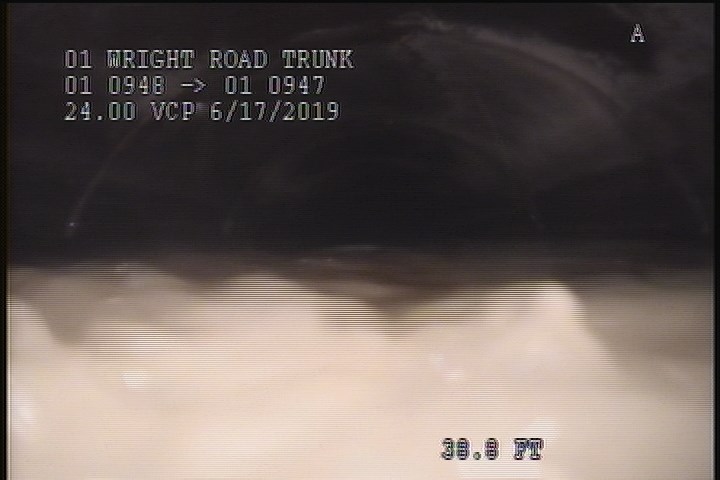

  • Water Level, Sag in pipe, 10 %of cross sectional area, Start

    38.8 ft. - Water Level, Sag in pipe, 10 %of cross sectional area, Start

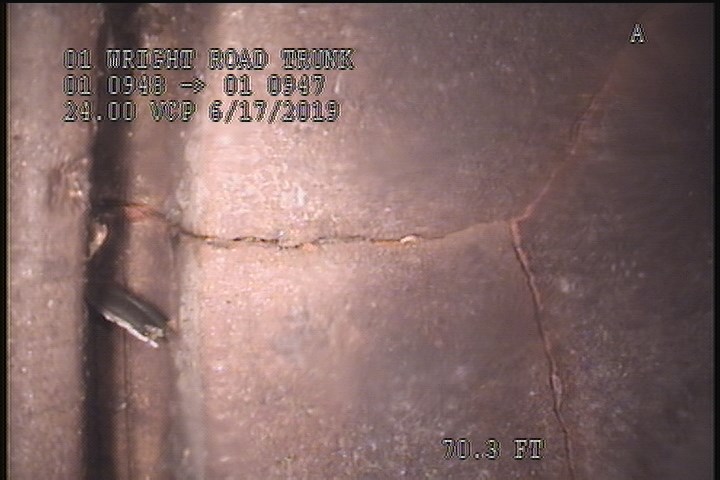

  • General Photograph

    70.3 ft. - General Photograph

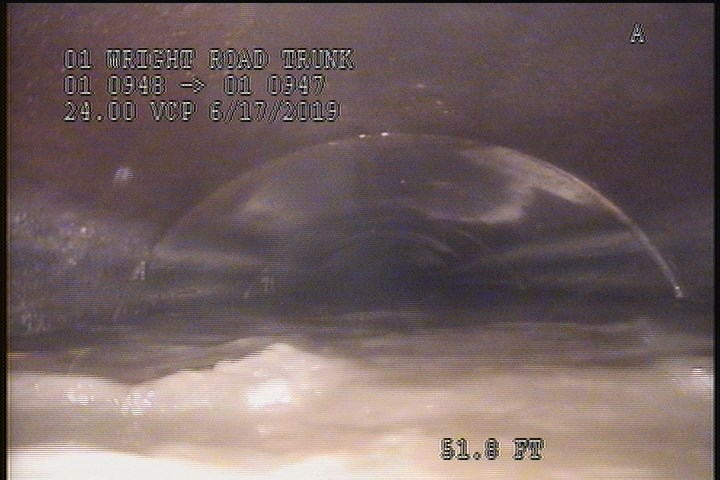

  • Water Level, Sag in pipe, 10 %of cross sectional area, Finish

    91.6 ft. - Water Level, Sag in pipe, 10 %of cross sectional area, Finish

All inspections of P01785Work order PENDING

Observations (15)

DistanceCodeObservation
0.1MWM—
3.3CM—
91.6MWLS—
91.6CM—
91.6SSS—
3.2CS—
0.1MWL—
91.6MGOGrease Throughout The Reach (5%)
70.3MGP—
3.9SSS—
15.2MGP—
91.6CS—
0AMH9:16 AM
38.8MWLS—
91.6MSAHIGH WATER

Properties (6)

custom_field_two
5
customer
LACSD
datetime
2019-06-17T09:14:18-07:00
documentation
FRANKLIN, CASTILLO, BRAR
is_lateral_inspection
false
year_laid
19280228
