Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2017, 08:52 AM

  • 03 0323_03 0322_08022017_005239.mpg

Date
02/08/2017
W/O
622734
Weather
Light Rain
Operator/Surveyor
R.VARGAS
Sewer ID
Z00359
PipeID
P04897
Time
12:52 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4259
Sewer Name
03 ANAHEIM STREET TRUNK
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Routine Assessment
Project
WO_622734_DISTRICT03_FEB2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
03 0323
Downstream MH
03 0322
Dir. of Survey
Downstream
Length Surveyed
166.1 ft.
Total Length
166.2 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
99
O&M Index
2
O&M Quick
2F00
O&M Rating
66
Overall Index
3
Overall Quick
—
Overall Rating
165
Pipe schematic from manhole 03 0323 to 03 0322
MH: 03 0323MH: 03 0322downstream0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 03230 ft. MWL - Water Level, 40 %of cross sectional area2.7 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2.8 ft. MGO - General Observation - MAGNESIUM H.O. START2.8 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start22.6 ft. MGP - General Photograph166.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish166.1 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish166.1 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH166.2 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE166.2 ft. AMH - Downstream Manhole, Survey Ends - 03 0322

Observation photos (3)

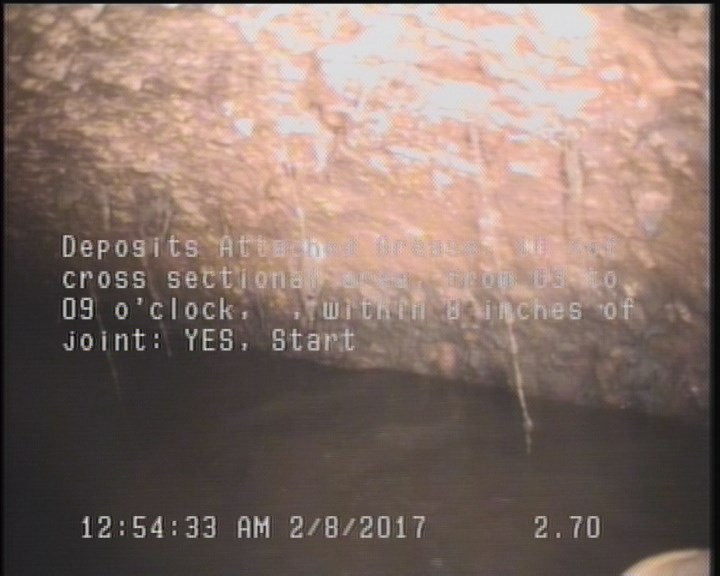

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

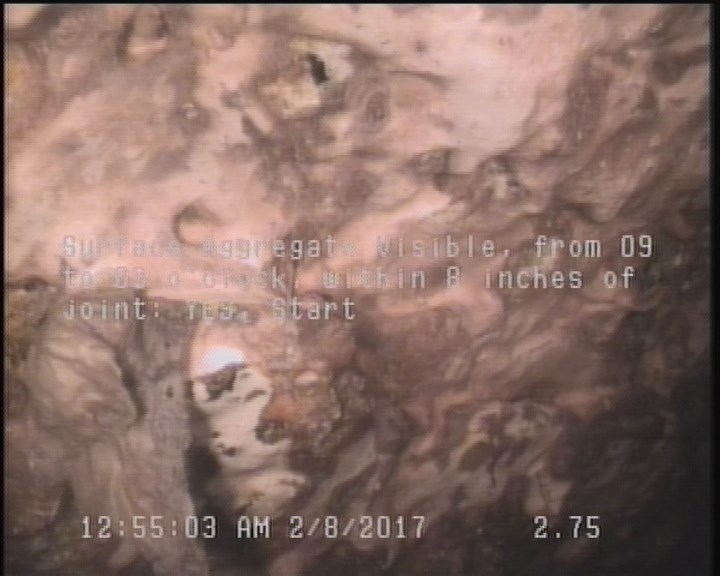

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2.8 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

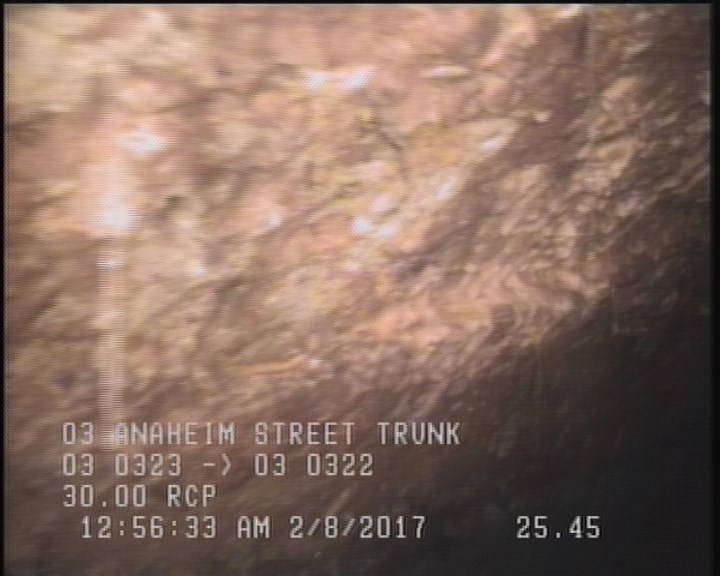

  • General Photograph

    22.6 ft. - General Photograph

All inspections of P04897Work order 622734

Observations (12)

DistanceCodeObservation
166.2MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
166.1DAGS—
2.7DAGS—
2.8MGOMAGNESIUM H.O. START
22.6MGP—
166.1SAV—
166.2AMH03 0322
0MWM—
0AMH03 0323
166.1MGOMAGNEZIUM H.O. FINISH
2.8SAV—
0MWL—

Properties (6)

additional_info
SC306801
custom_field_two
3
customer
LACSD
datetime
2017-02-08T00:52:39-08:00
documentation
PRO PIPE
is_lateral_inspection
false
