Wastewater/Activity/PacpInspection/1.0Feb 8, 2017, 06:18 AM
03 0326_03 0325_07022017_230135.mpg
- Date
- 02/07/2017
- W/O
- 622734
- Weather
- Light Rain
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00359
- PipeID
- P04900
- Time
- 10:18 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4259
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_622734_DISTRICT03_FEB2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 03 0326
- Downstream MH
- 03 0325
- Dir. of Survey
- Downstream
- Length Surveyed
- 6.9 ft.
- Total Length
- 7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

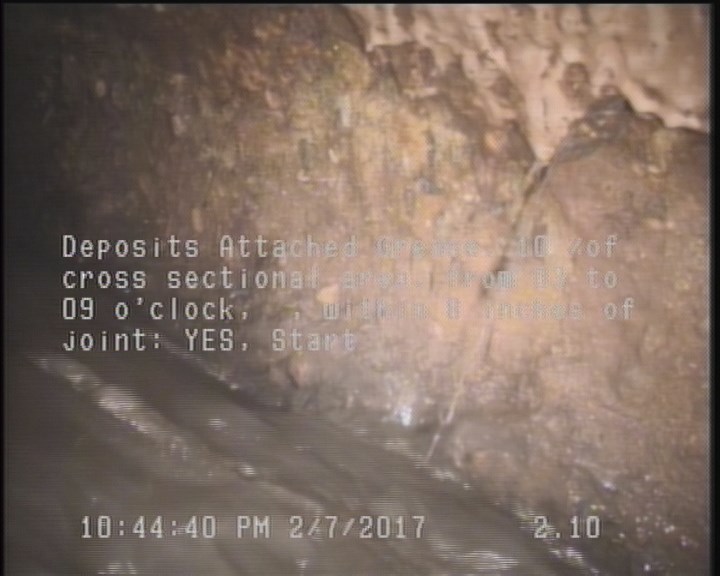

2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

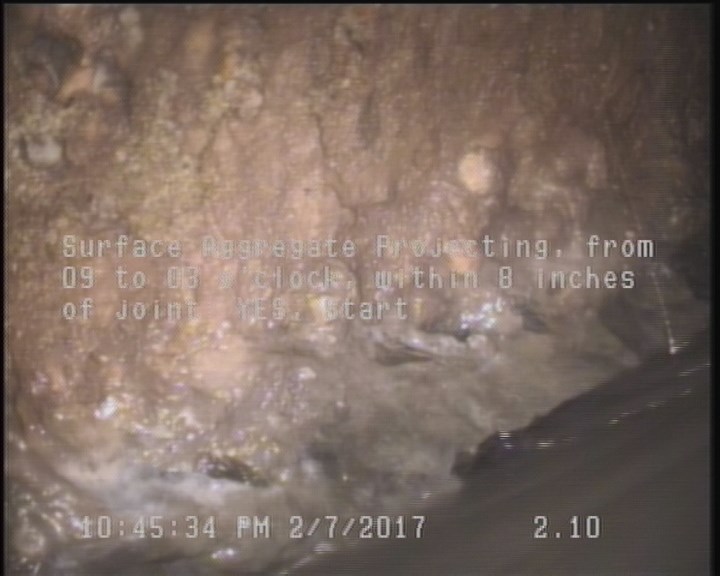

2.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

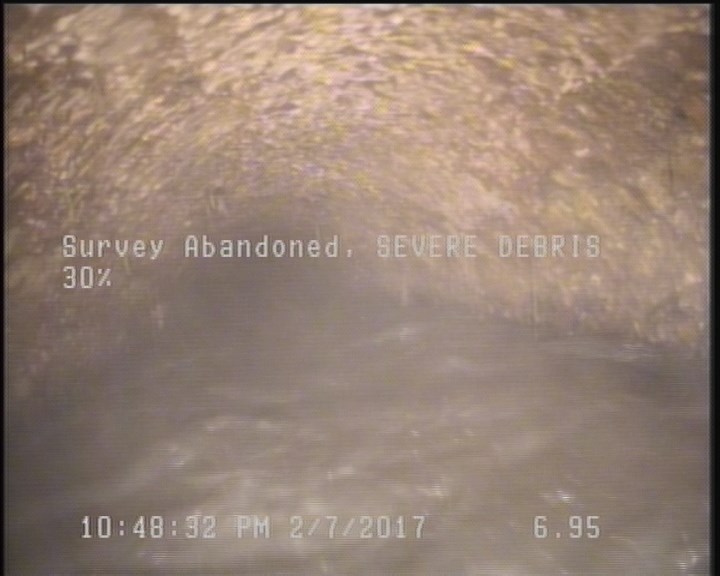

7 ft. - Survey Abandoned - SEVERE DEBRIS 30%
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 6.7 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | AMH | 03 0326 |
| 6.7 | SAP | — |
| 7 | OBZ | DEBRIS NOT VISIBLE |
| 0 | MWL | — |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 7 | MSA | SEVERE DEBRIS 30% |
| 2.1 | DAGS | — |
| 2.1 | SAP | — |
| 0 | MWM | — |
| 6.7 | DAGS | — |
Properties (6)
- additional_info
- SC306801
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-02-07T22:18:52-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
