Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 05:58 AM

  • 02 0787_02 0786_20160721_002016.mp4

Date
07/20/2016
W/O
574316
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00294
PipeID
P03348
Time
10:58 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3659
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0787
Downstream MH
02 0786
Dir. of Survey
Downstream
Length Surveyed
184.8 ft.
Total Length
184.8 ft.
Structural Index
3
Structural Quick
3424
Structural Rating
20
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 02 0787 to 02 0786
MH: 02 0787MH: 02 0786downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 07870 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"52.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"72.8 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES78.9 ft. CM - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES94.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES100.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES107.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"118.1 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES130.5 ft. CM - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES133.7 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"146 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES159 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"176 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES182 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish184.8 ft. AMH - Downstream Manhole, Survey Ends - 02 0786

Observation photos (6)

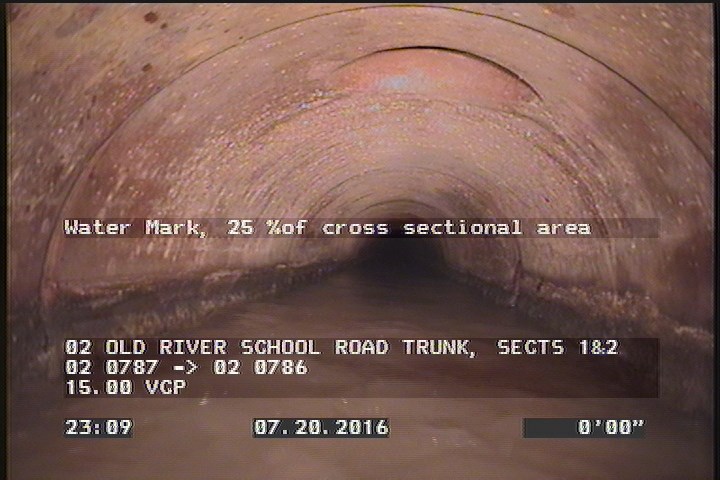

  • Water Mark, 25 %of cross sectional area

    0 ft. - Water Mark, 25 %of cross sectional area

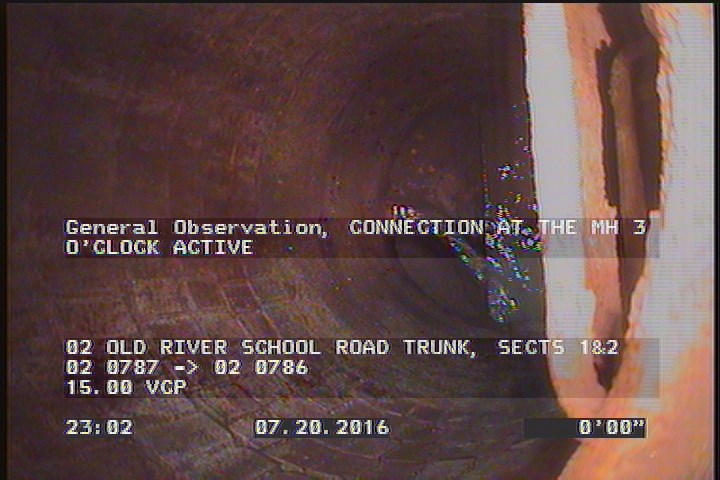

  • General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE

    0 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE

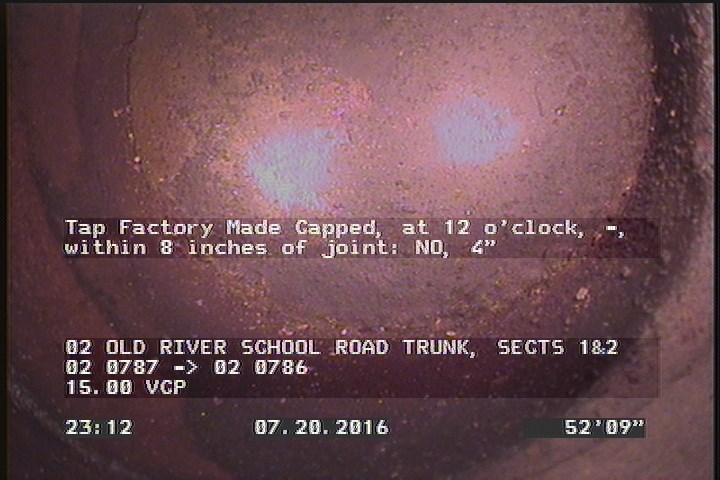

  • Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"

    52.7 ft. - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"

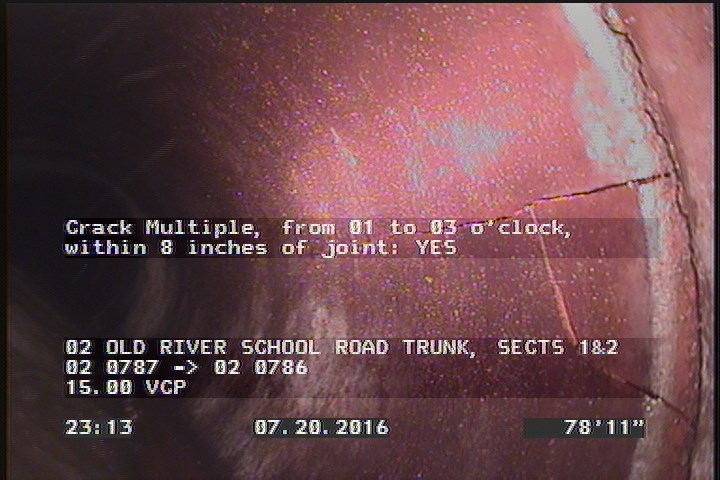

  • Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

    78.9 ft. - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

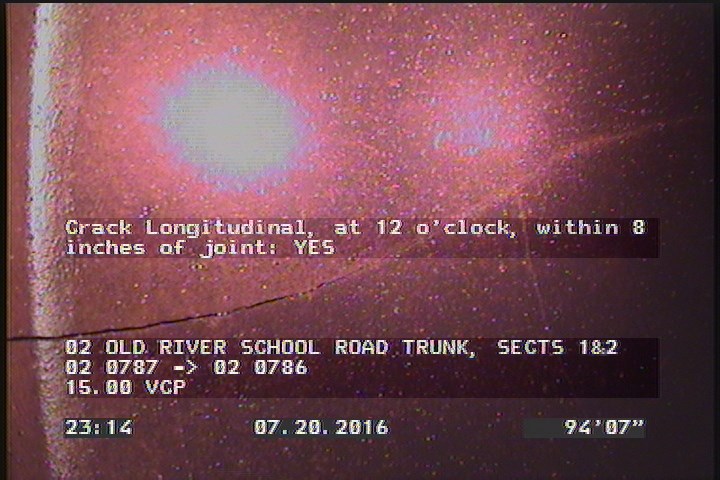

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    94.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

    130.5 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

All inspections of P03348Work order 574316

Observations (20)

DistanceCodeObservation
100.2CM—
146CL—
133.7TBA—
0MWL—
78.9CM—
107.5TFC—
2DAGS—
0MWM—
159TFC—
2TFC—
0AMH02 0787
52.7TFC—
94.6CL—
176CL—
184.8AMH02 0786
0MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE
182DAGS—
118.1CM—
72.8CL—
130.5CM—

Properties (6)

additional_info
SC305538
custom_field_two
3
customer
LACSD
datetime
2016-07-20T22:58:57-07:00
documentation
PROPIPE
is_lateral_inspection
false
