Wastewater/Activity/PacpInspection/1.0Jul 22, 2016, 09:17 AM
02 0773_02 0772_20160722_032802.mp4
- Date
- 07/22/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00294
- PipeID
- P03331
- Time
- 2:17 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3660
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0773
- Downstream MH
- 02 0772
- Dir. of Survey
- Downstream
- Length Surveyed
- 317.9 ft.
- Total Length
- 317.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (4)

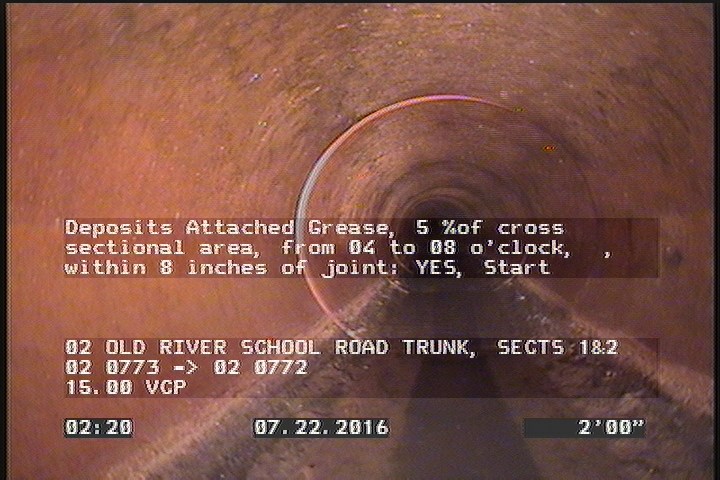

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

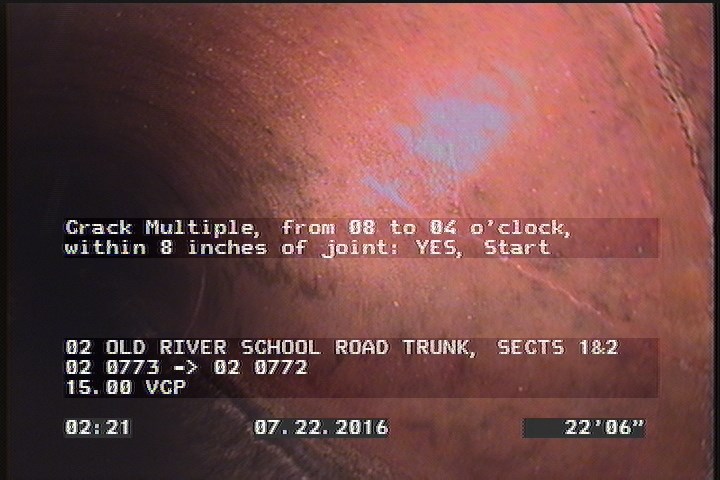

21.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

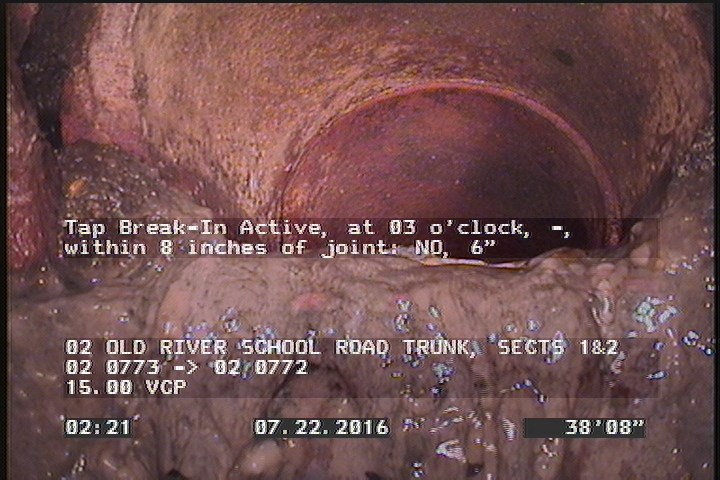

38.6 ft. - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"

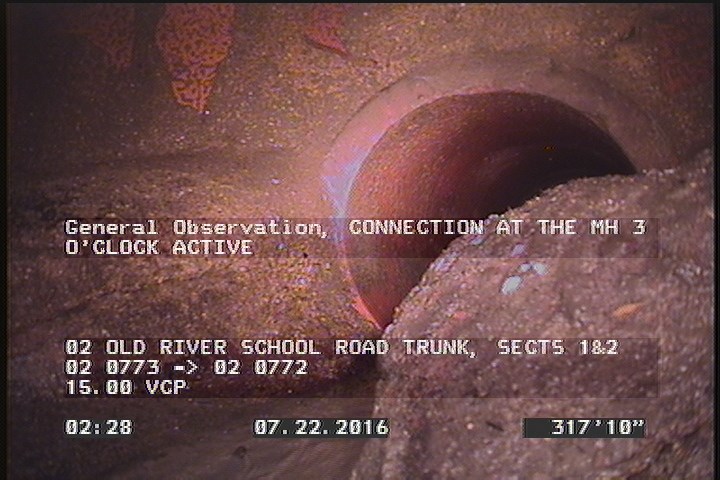

317.9 ft. - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 188.2 | TFC | — |
| 238 | TFC | — |
| 317.9 | MGO | CONNECTION AT THE MH 3 O'CLOCK ACTIVE |
| 287.2 | TFC | — |
| 0 | MWL | — |
| 38.6 | TBA | — |
| 136.5 | TFA | — |
| 21.4 | CM | — |
| 287.2 | CM | — |
| 2 | DAGS | — |
| 0 | AMH | 02 0773 |
| 315.3 | DAGS | — |
| 317.9 | AMH | 02 0772 |
| 0 | MWM | — |
| 86.9 | TFC | — |
Properties (6)
- additional_info
- SC305539
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-07-22T02:17:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
