Wastewater/Activity/PacpInspection/1.0Jul 12, 2016, 09:11 PM
02 0811_02 0810_20160804_105907.mp4
- Date
- 07/12/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- N. ZAHREDDINE
- Sewer ID
- Z00294
- PipeID
- P03377
- Time
- 2:11 PM
- Certificate
- N/A
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3204
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0811
- Downstream MH
- 02 0810
- Dir. of Survey
- Downstream
- Length Surveyed
- 153.2 ft.
- Total Length
- 153.2 ft.
- Structural Index
- 4
- Structural Quick
- 4231
- Structural Rating
- 11
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

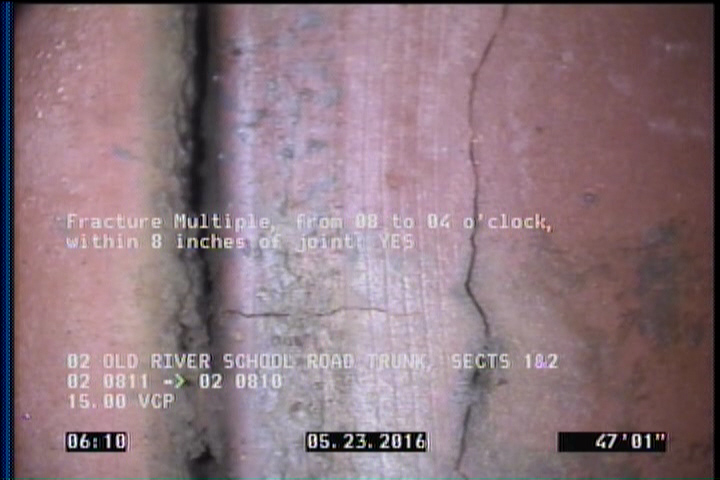

47 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
60.1 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

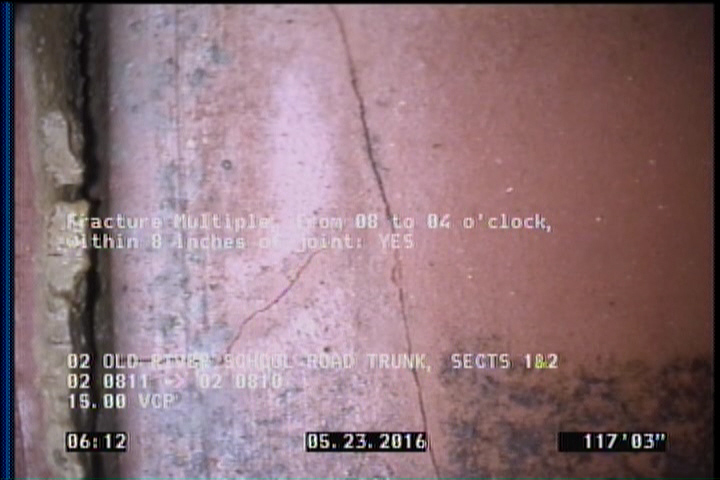

117 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
137.1 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 153 | MGO | VERMIN COCKROACH |
| 0 | MGO | CONNECTION AT THE MH 3 |
| 153 | MGO | CONNECTION AT THE MH 3 |
| 60.1 | CM | — |
| 153.2 | AMH | 02 0810 |
| 137.1 | DAGS | — |
| 0 | AMH | 02 0811 |
| 140.1 | TFA | — |
| 47 | FM | — |
| 117 | FM | — |
Properties (6)
- additional_info
- SC300662
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-07-12T14:11:27-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
