Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 24, 2018, 07:55 AM

  • 29 0526_29 0513_5242018_044930.mp4

Date
05/24/2018
W/O
0708063
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01106
PipeID
P24578
Time
12:55 AM
Certificate
U-104-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0868
Sewer Name
29 19TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Maintenance Related
Project
20180524_19TH_STREET_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0526
Downstream MH
29 0513
Dir. of Survey
Downstream
Length Surveyed
300.8 ft.
Total Length
300.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 29 0526 to 29 0513
MH: 29 0526MH: 29 0513downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:15AM27 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6", 6" - Open84.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6", 6" - Active129.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6", 6" - Active180.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6", 6" - Active232.1 ft. MGO - General Observation - POSSIBLE GROUT232.1 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-POSSIBLE GROUT300.8 ft. AMH - Downstream Manhole, Survey Ends - 5:40AM

Observation photos (2)

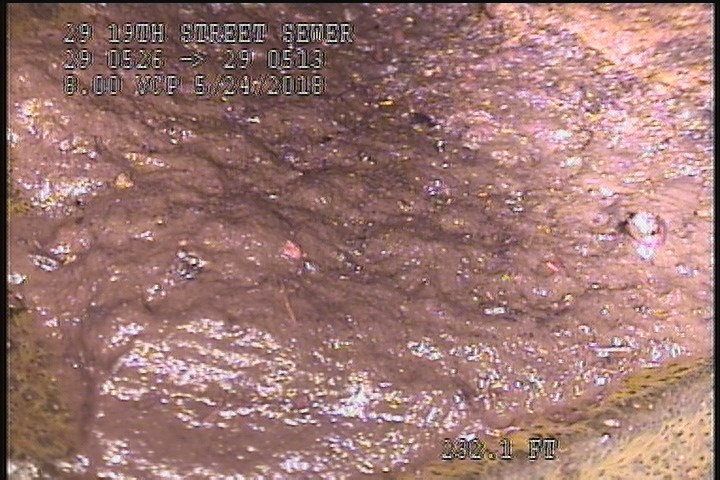

  • General Observation - POSSIBLE GROUT

    232.1 ft. - General Observation - POSSIBLE GROUT

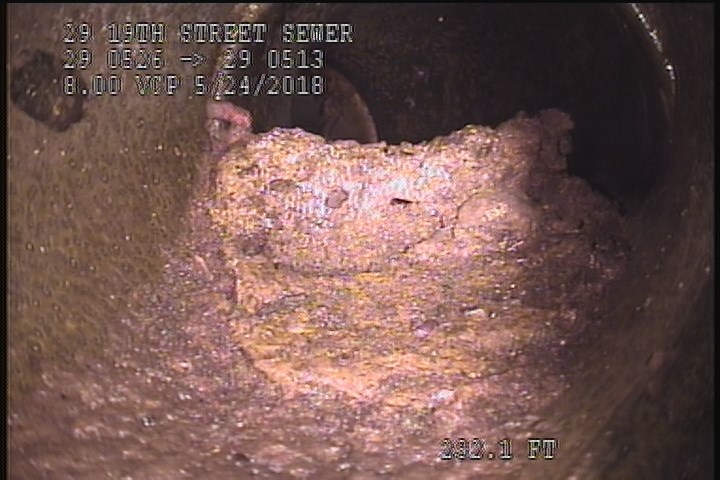

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-POSSIBLE GROUT

    232.1 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-POSSIBLE GROUT

All inspections of P24578Work order 0708063

Observations (10)

DistanceCodeObservation
180.7TFActive
0MWM—
0MWL—
84.1TFActive
300.8AMH5:40AM
232.1MGOPOSSIBLE GROUT
232.1TFDOpen-POSSIBLE GROUT
27TFOpen
0AMH5:15AM
129.4TFActive

Properties (5)

additional_info
BLUE GROUT AT LATERALS
customer
LACSD
datetime
2018-05-24T00:55:16-07:00
documentation
MARTIN,REVELES,OLIVER 111
is_lateral_inspection
false
