Wastewater/Activity/PacpInspection/1.0May 4, 2017, 05:25 AM
H 0786_H 0785A _20170503_230926.mp4
- Date
- 05/03/2017
- W/O
- 635495
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00942
- PipeID
- P23088
- Time
- 10:25 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4520
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_635495_TV22079_MAY2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- H 0786
- Downstream MH
- H 0785A
- Dir. of Survey
- Downstream
- Length Surveyed
- 1490.3 ft.
- Total Length
- 1490.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3122
- O&M Rating
- 7
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

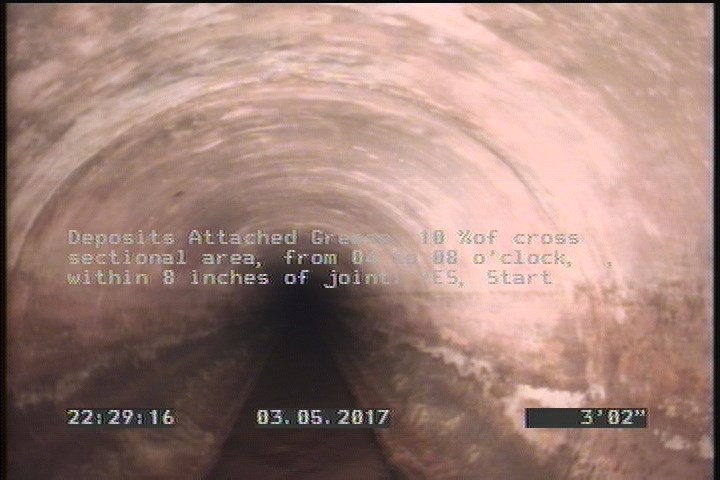

3.2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

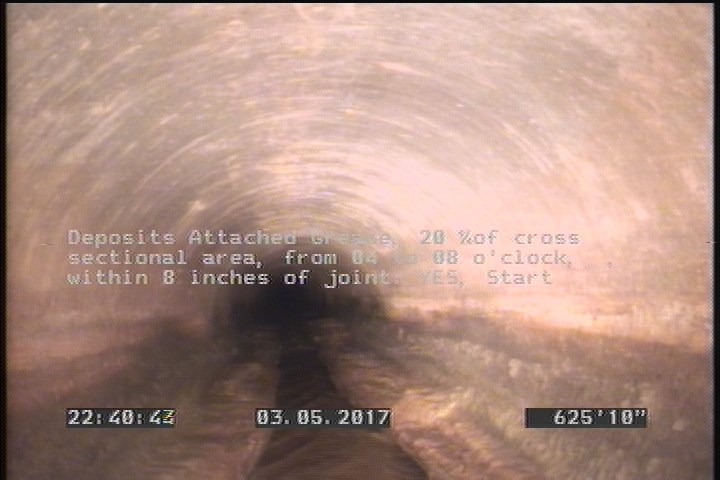

625.9 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

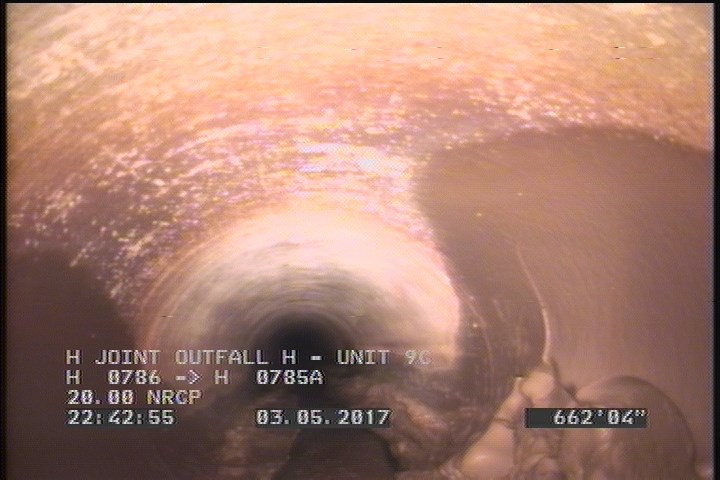

662.4 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 0786 |
| 0 | MWM | — |
| 625.9 | DAGS | — |
| 1490.3 | MSA | CABLE MAXED OUT |
| 662.4 | DAE | — |
| 3.2 | DAGS | — |
| 0 | MWL | — |
| 1490.3 | DAGS | — |
| 625.9 | DAGS | — |
Properties (6)
- additional_info
- SC340734
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-05-03T22:25:19-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
