Wastewater/Activity/PacpInspection/1.0May 24, 2017, 06:08 AM
H 0771_H 0770A _20170523_234910.mp4
- Date
- 05/23/2017
- W/O
- 635495
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00942
- PipeID
- P24212
- Time
- 11:08 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4530
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_635495_TV22079_MAY2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- H 0770A
- Downstream MH
- H 0771
- Dir. of Survey
- Upstream
- Length Surveyed
- 675.1 ft.
- Total Length
- 675.1 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

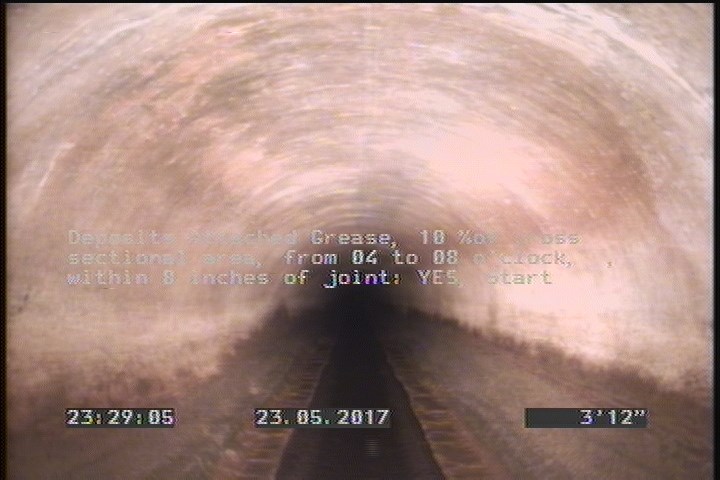

4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

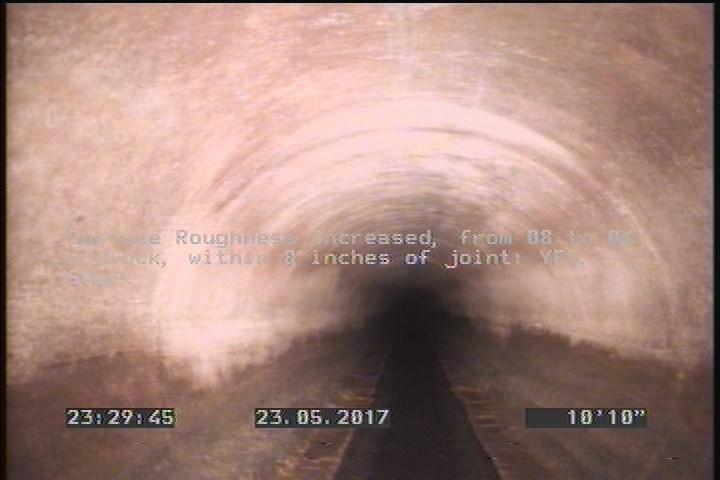

10.9 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

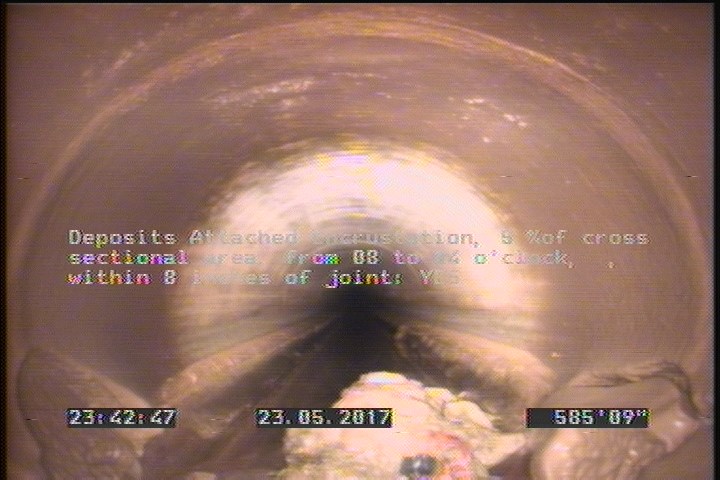

585.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

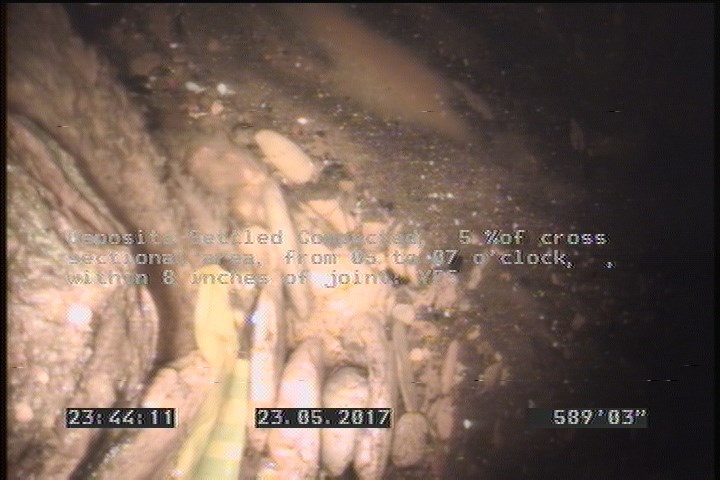

589.2 ft. - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | — |
| 589.2 | DSC | — |
| 675.1 | SRI | — |
| 675.1 | DAGS | — |
| 675.1 | MSA | REVERSAL COMPLETE |
| 4 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | H 0770A |
| 585.8 | DAE | — |
| 0 | MWL | — |
| 10.9 | SRI | — |
Properties (6)
- additional_info
- SC340744
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-23T23:08:04-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
