Wastewater/Activity/PacpInspection/1.0Dec 6, 2017, 09:09 AM
Section#2_J 0235A_J 0235__1262017__G6879.mp4
- Date
- 12/06/2017
- W/O
- 0624519
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00057
- PipeID
- P11482
- Time
- 1:09 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6879
- Sewer Name
- J JOINT OUTFALL J - UNIT 1E
- City
- PALO VERDES
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 47
- Purpose
- Capital Improvement Program Assesment
- Project
- 20171206MDM_JOINT_OUTFALL_J_UNIT_1E
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- J 0235A
- Downstream MH
- J 0235
- Dir. of Survey
- Downstream
- Length Surveyed
- 81.4 ft.
- Total Length
- 81.4 ft.
- Structural Index
- 2
- Structural Quick
- 312B
- Structural Rating
- 35
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 35
Observation photos (3)

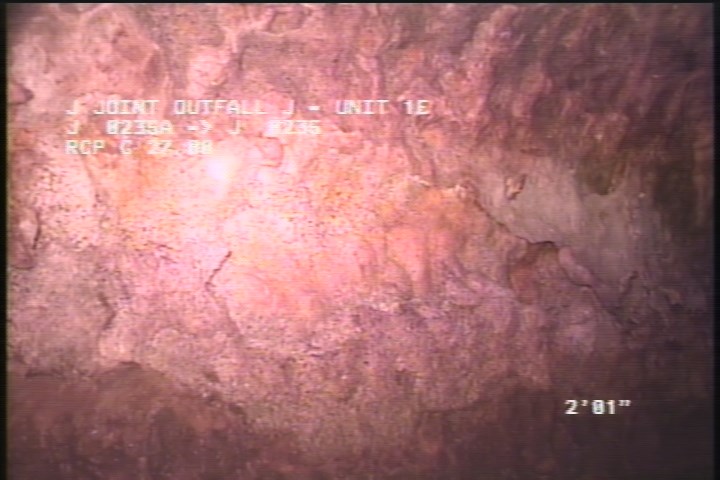

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT

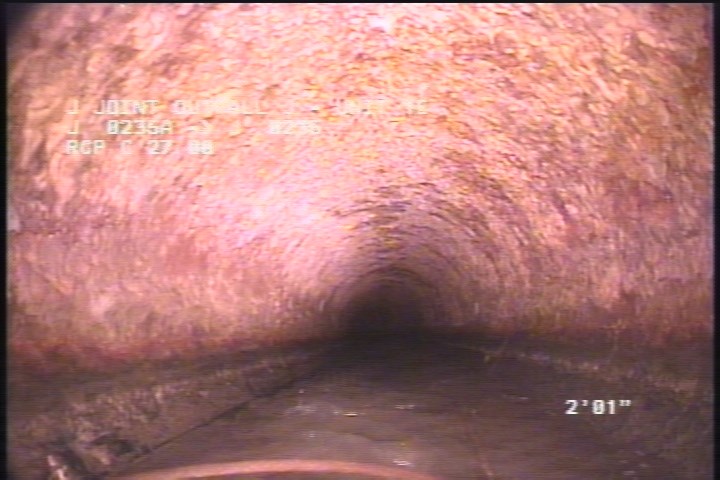

2 ft. - General Observation - MAG COAT 70% START 8:00 TO 4:00

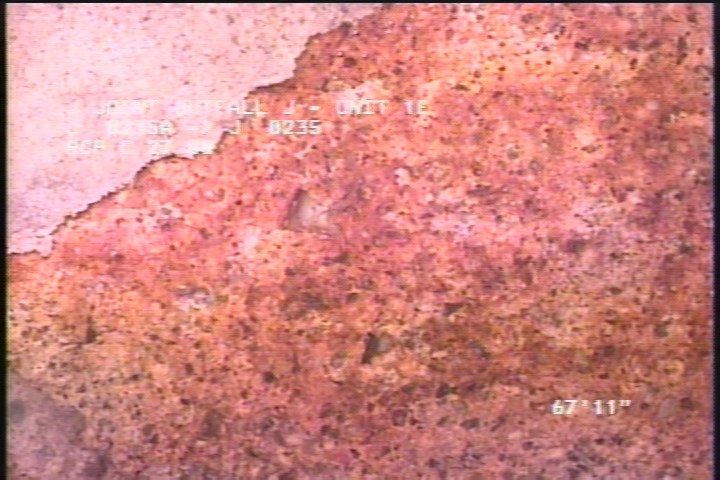

67.9 ft. - Surface Aggregate Visible, from 02 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | BLISTERING PEELING CONCRETE UNDER MAG COAT |
| 0 | MWL | — |
| 81.1 | MGO | MH CONN 9:00 STUB |
| 81.4 | AMH | 2:40AM |
| 0 | MWM | — |
| 81.1 | MGO | MH COINN 3:00 STUB |
| 2 | MGO | MAG COAT 70% START 8:00 TO 4:00 |
| 81.1 | MGO | MAG COAT 70% FINISH |
| 0 | AMH | 2:30AM |
| 0 | MGO | MH CONN ACTIVE 3:00 |
| 67.9 | SAV | SEVERE AGG SPORATIC |
| 81.1 | SSS | BLISTERING PEELING CONCRETE |
Properties (5)
- custom_field_three
- SEVERE AGG
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-06T01:09:47-08:00
- is_lateral_inspection
- false
