Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2017, 01:32 PM

  • 05 1339_05 1338_1222017_070337.mp4

Date
12/02/2017
W/O
0674253
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00444
PipeID
P06556
Time
5:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0687
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
20171202MDM_GARDENA_PUNP_TRUNK
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
05 1339
Downstream MH
05 1338
Dir. of Survey
Downstream
Length Surveyed
48.8 ft.
Total Length
48.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
5141
O&M Rating
13
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 05 1339 to 05 1338
MH: 05 1339MH: 05 1338downstream0 ft. AMH - Upstream Manhole, Survey Begins - 7:05AM0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MWM - Water Mark, 70 %of cross sectional area8 ft. MGO - General Observation - 18" NRCP-CIPP19.6 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO41.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: NO, Start42.7 ft. MWM - Water Mark, 100 %of cross sectional area48.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: NO, Finish48.8 ft. MSA - Survey Abandoned - 30% UNKNOWN BLOCKAGE BOTTOM OF PIPE

Observation photos (2)

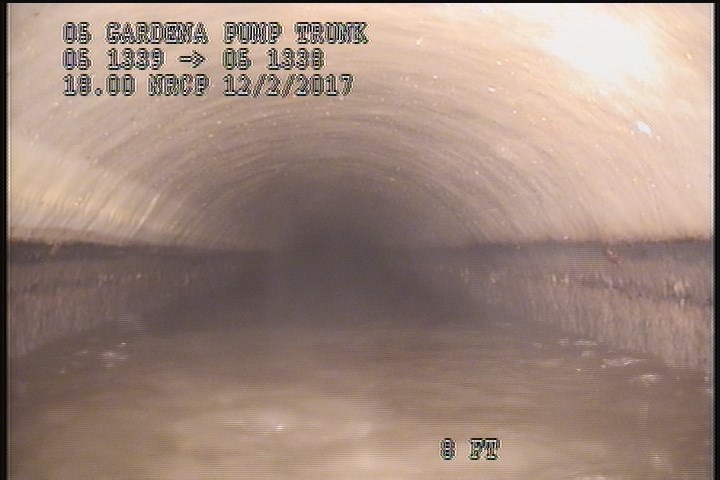

  • General Observation - 18" NRCP-CIPP

    8 ft. - General Observation - 18" NRCP-CIPP

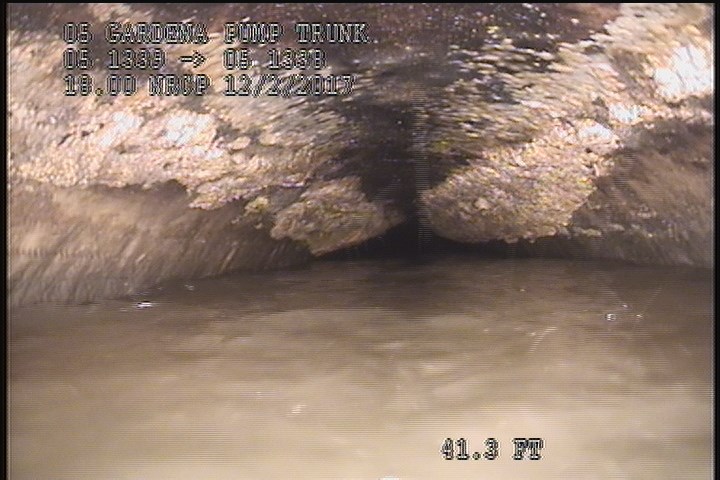

  • Deposits Attached Grease, 10 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: NO, Start

    41.3 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: NO, Start

All inspections of P06556Work order 0674253

Observations (9)

DistanceCodeObservation
8MGO18" NRCP-CIPP
0AMH7:05AM
19.6DSGV—
0MWL—
41.3DAGS—
42.7MWM—
0MWM—
48.7DAGS—
48.8MSA30% UNKNOWN BLOCKAGE BOTTOM OF PIPE

Properties (6)

custom_field_three
LINER GOOD CONDITION
custom_field_two
4
customer
LACSD
datetime
2017-12-02T05:32:19-08:00
is_lateral_inspection
false
lining
CIPP
