B 1502_B 1501 _12282016_235652.mp4
- Date
- 12/28/2016
- W/O
- 615053
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z01124
- PipeID
- P25617
- Time
- 11:36 PM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3951
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_615053_TV16038_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 1502
- Downstream MH
- B 1501
- Dir. of Survey
- Downstream
- Length Surveyed
- 450 ft.
- Total Length
- 450 ft.
- Structural Index
- 3
- Structural Quick
- 5531
- Structural Rating
- 60
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 60
Observation photos (13)
75.8 ft. - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: YES
80.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES
92 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES
155.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES
197.4 ft. - Surface Missing Wall, from 09 to 03 o'clock, within 8 inches of joint: YES

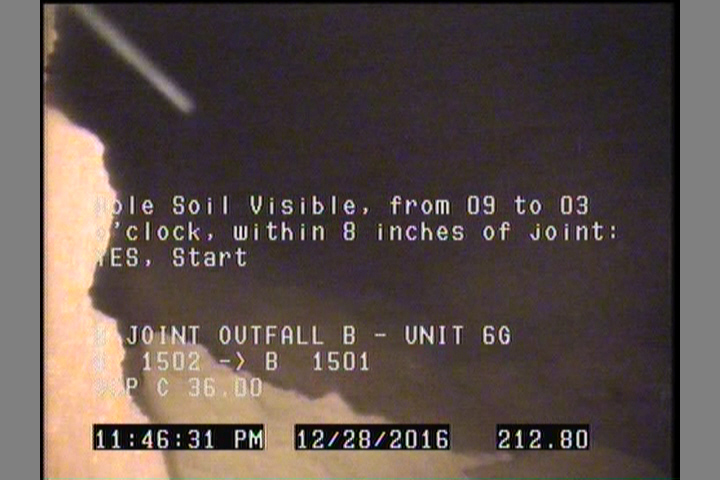

212.8 ft. - Hole Soil Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
215.2 ft. - Hole Void Visible, from 09 to 03 o'clock, within 8 inches of joint: YES
229.4 ft. - Hole, at 10 o'clock, within 8 inches of joint: NO
279.8 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES
287.6 ft. - Hole Void Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
306.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
347.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES
398.3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 212.8 | HSV | — |
| 221.5 | HSV | — |
| 450 | AMH | B 1501 |
| 287.6 | HVV | — |
| 306.4 | SSS | — |
| 197.4 | SMW | — |
| 398.3 | SSS | — |
| 75.8 | SSS | — |
| 155.9 | SSS | — |
| 439.7 | SSS | — |
| 293.9 | HVV | — |
| 316.2 | SSS | — |
| 229.4 | H | — |
| 80.9 | SSS | — |
| 0 | AMH | B 1502 |
| 347.6 | SSS | — |
| 279.8 | SSS | — |
| 215.2 | HVV | — |
| 92 | SSS | — |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC317699
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-12-28T23:36:00-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
- year_laid
- 38884
