Wastewater/Activity/PacpInspection/1.0Feb 3, 2017, 09:58 AM
14 0251_14 0250A _02032017_020000.mp4
- Date
- 02/03/2017
- W/O
- 613594
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00569
- PipeID
- P18307
- Time
- 1:58 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4230
- Sewer Name
- 14 AVENUE "H" TRUNK
- City
- LANCASTER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_613594_TV14037_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 14 0251
- Downstream MH
- 14 0250A
- Dir. of Survey
- Downstream
- Length Surveyed
- 377.5 ft.
- Total Length
- 377.5 ft.
- Structural Index
- 3
- Structural Quick
- 513N
- Structural Rating
- 230
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 154
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 384
Observation photos (3)

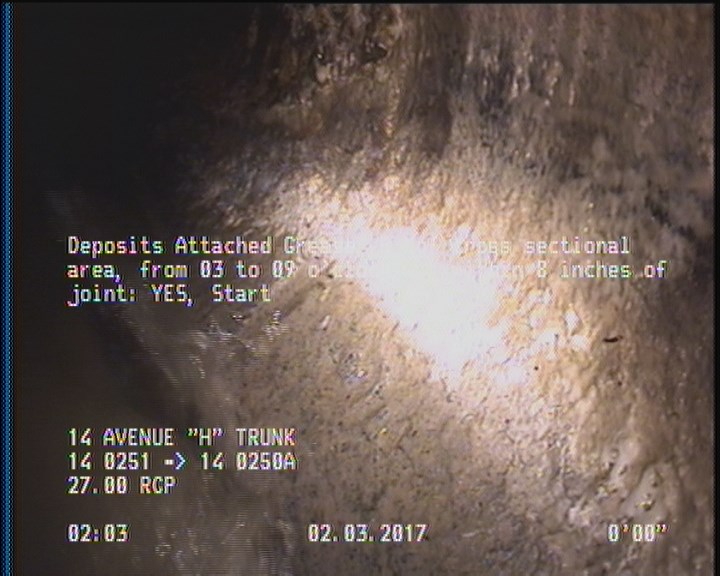

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

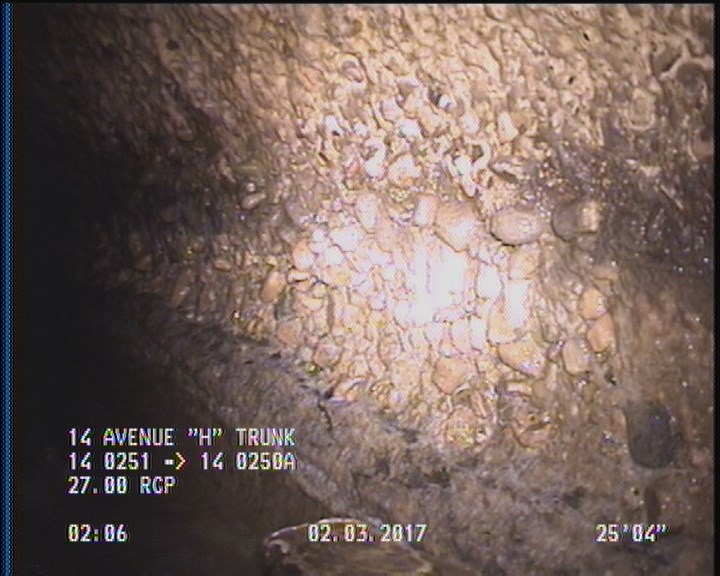

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
3 ft. - Surface Reinforcement Visible, from 03 to 04 o'clock, within 8 inches of joint: NO
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 14 0251 |
| 2 | MGO | MAG COATING 80% |
| 2 | DAGS | — |
| 377.5 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | SAP | — |
| 150.6 | TBA | — |
| 375.1 | SAP | — |
| 0 | MWM | — |
| 3 | SRV | — |
| 0 | MWL | — |
| 377.5 | AMH | 14 0250A |
| 375.1 | DAGS | — |
Properties (6)
- additional_info
- SC306732
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-03T01:58:50-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
