Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2016, 07:27 AM

  • 15 0969_15 0968 _28062016_004257.mp4

Date
06/28/2016
W/O
579948
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00592
PipeID
P21476
Time
12:27 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3547
Sewer Name
15 AMAR ROAD RELIEF TRUNK
City
LA PUENTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
35
Purpose
Routine Assessment
Project
WO_579948_TV15138_JULY2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
15 0969
Downstream MH
15 0968
Dir. of Survey
Downstream
Length Surveyed
467.1 ft.
Total Length
467.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412T
O&M Rating
214
Overall Index
2
Overall Quick
—
Overall Rating
214
Pipe schematic from manhole 15 0969 to 15 0968
MH: 15 0969MH: 15 0968downstream0 ft. MWL - Water Level, 50 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 09692 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start403.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start465.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish465.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish467.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE467.1 ft. AMH - Downstream Manhole, Survey Ends - 15 0968, RUN LIST STATES MH AT 445'.

Observation photos (3)

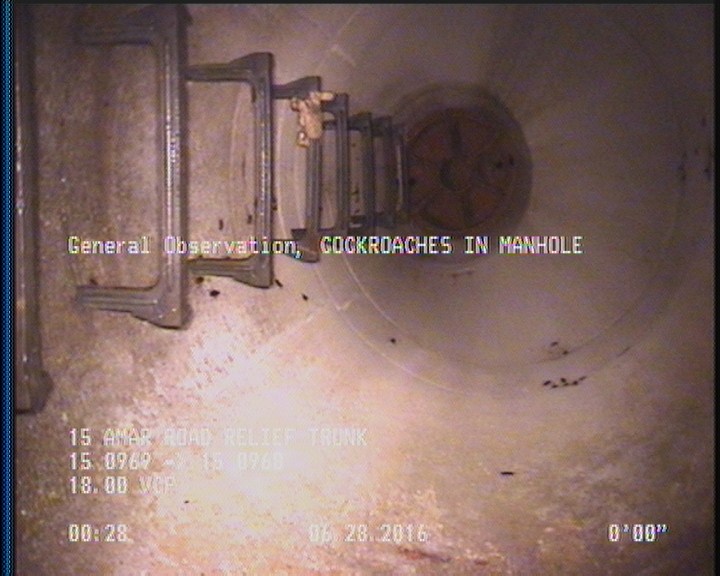

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

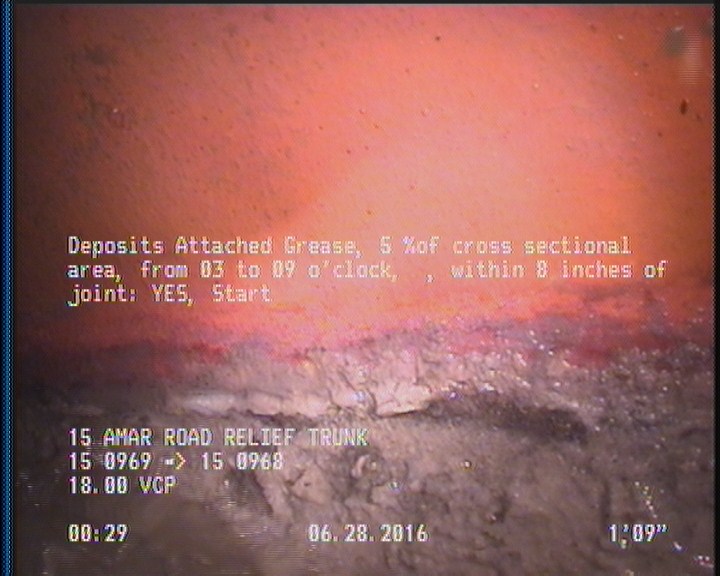

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

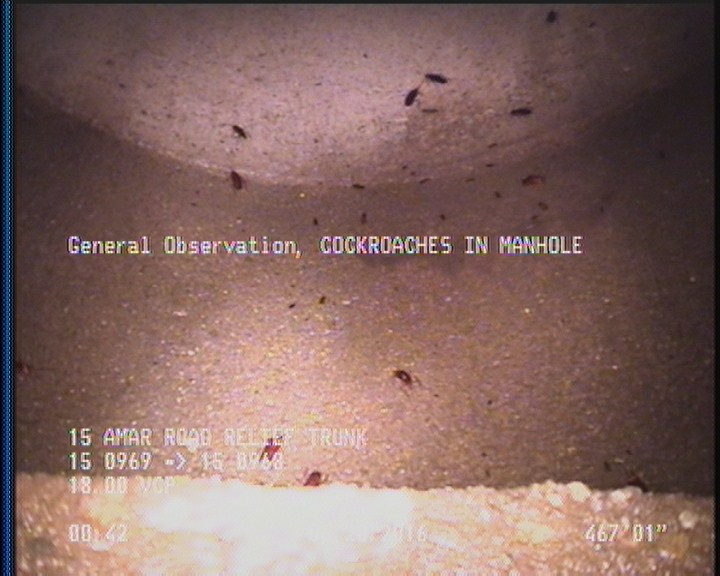

  • General Observation - COCKROACHES IN MANHOLE

    467.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P21476Work order 579948

Observations (10)

DistanceCodeObservation
0MWL—
0MGOCOCKROACHES IN MANHOLE
465.2DAGS—
467.1MGOCOCKROACHES IN MANHOLE
0MWM—
0AMH15 0969
403.6DSZ—
465.2DSZ—
2DAGS—
467.1AMH15 0968, RUN LIST STATES MH AT 445'.

Properties (7)

additional_info
SC305777
custom_field_two
4
customer
LACSD
datetime
2016-06-28T00:27:01-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
30544
