Wastewater/Activity/PacpInspection/1.0May 2, 2016, 07:35 AM
18 0731_18 0730_20160503_004006.mp4
- Date
- 05/02/2016
- W/O
- 568699
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00706
- PipeID
- P14584
- Time
- 12:35 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3359
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- RFIR_WO_568699_TV18103_MAY2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 18 0731
- Downstream MH
- 18 0730
- Dir. of Survey
- Downstream
- Length Surveyed
- 66.1 ft.
- Total Length
- 66.1 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)
5.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
22.8 ft. - Surface Aggregate Projecting, from 10 to 12 o'clock, within 8 inches of joint: NO

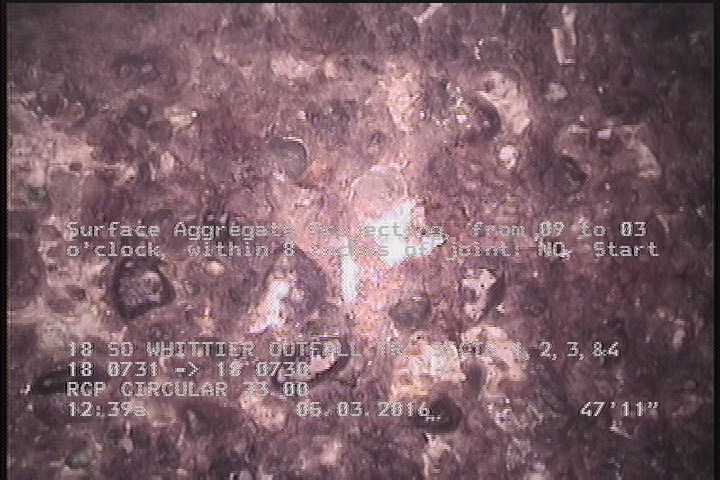

47.9 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 5.1 | SSS | — |
| 22.8 | SAP | — |
| 63 | SSS | — |
| 47.9 | SAP | — |
| 0 | MWL | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 66.1 | AMH | 18 0730 |
| 0 | AMH | 18 0731 |
| 63.1 | SAP | — |
| 66.1 | MGO | LATERAL AT MH 3 OCLOCK |
Properties (5)
- additional_info
- SC300356
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-05-02T00:35:13-07:00
- is_lateral_inspection
- false
