Wastewater/Activity/PacpInspection/1.0Jan 2, 2018, 09:10 AM
H 1289_H 1288 _02012018_013023.mp4
- Date
- 01/02/2018
- W/O
- 679277
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01183
- PipeID
- P17305
- Time
- 1:10 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5300
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L
- City
- AZUSA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_679277_TV22154_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- H 1289
- Downstream MH
- H 1288
- Dir. of Survey
- Downstream
- Length Surveyed
- 312 ft.
- Total Length
- 312 ft.
- Structural Index
- 3
- Structural Quick
- 3K28
- Structural Rating
- 199
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 199
Observation photos (3)

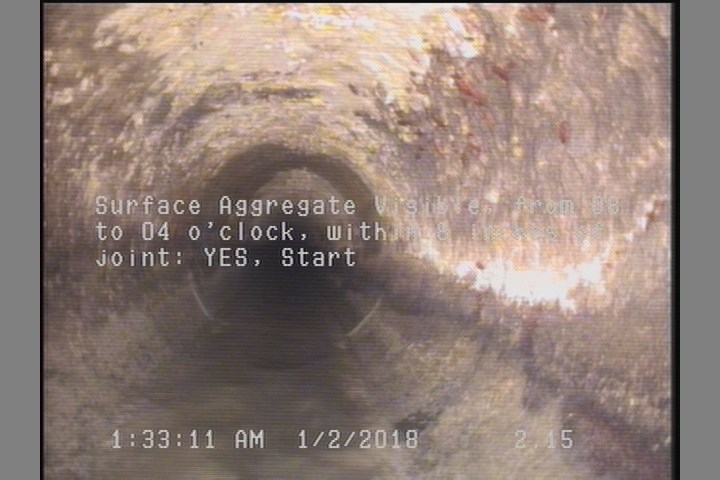

2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

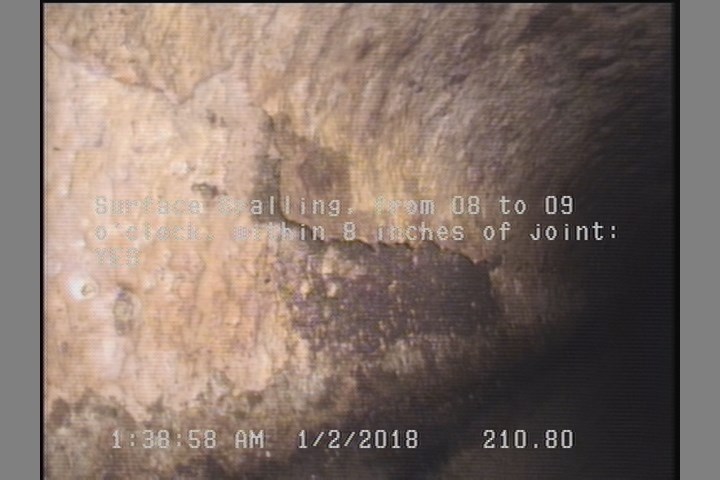

210.8 ft. - Surface Spalling, from 08 to 09 o'clock, within 8 inches of joint: YES

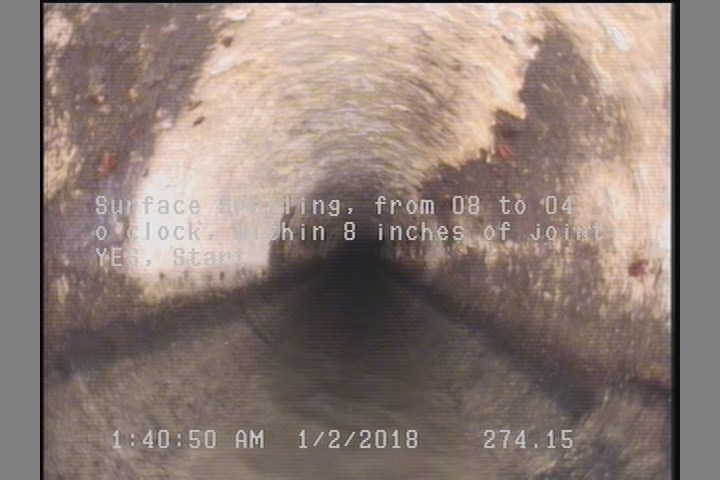

274.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 210.8 | SSS | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | H 1289 |
| 0 | MWL | — |
| 309.3 | SSS | — |
| 2.1 | MGO | MAG COAT |
| 309.3 | SAV | — |
| 312 | AMH | H 1288 |
| 2.2 | SAV | — |
| 274.2 | SSS | — |
Properties (5)
- additional_info
- SC346774
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-02T01:10:06-08:00
- is_lateral_inspection
- false
