Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 28, 2017, 11:10 AM

  • 08 0051_08 0050 _28122017_032122.mp4

Date
12/28/2017
W/O
679275
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00053
Time
3:10 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5297
Sewer Name
08 MAIN STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Routine Assessment
Project
WO_679275_TV08116_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
08 0050
Downstream MH
08 0051
Dir. of Survey
Upstream
Length Surveyed
308.1 ft.
Total Length
308.1 ft.
Structural Index
3
Structural Quick
3K21
Structural Rating
188
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
188
Pipe schematic from manhole 08 0050 to 08 0051
MH: 08 0050MH: 08 0051upstream0 ft. AMH - Upstream Manhole, Survey Ends - 08 00512.1 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK2.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish19.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES26.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"77 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"148.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"179.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"226.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"230.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"261.5 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES281 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"306.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start308.1 ft. MWL - Water Level, 5 %of cross sectional area308.1 ft. MWM - Water Mark, 10 %of cross sectional area308.1 ft. AMH - Downstream Manhole, Survey Begins - 08 0050

Observation photos (2)

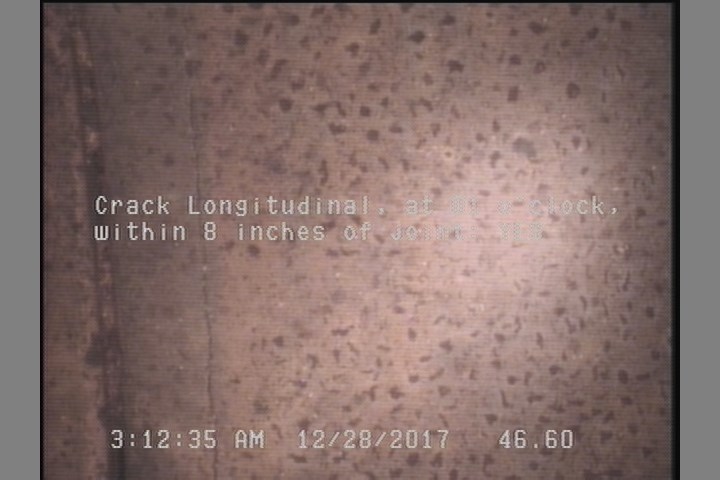

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    46.6 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

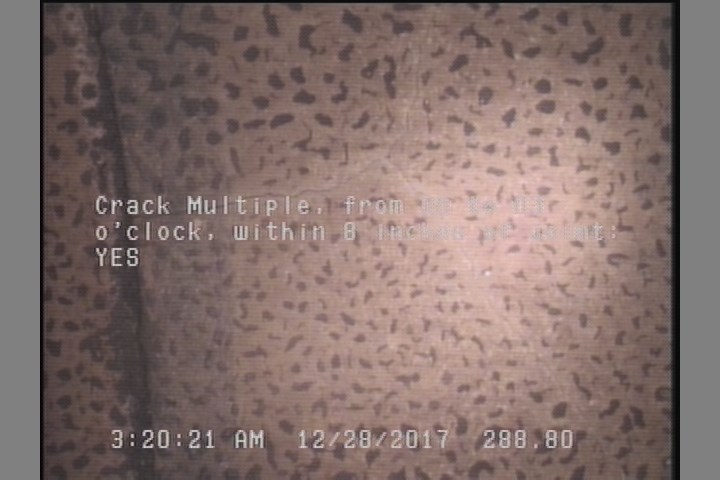

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    288.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P00053Work order 679275

Observations (17)

DistanceCodeObservation
306MGOSPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK
0MWL—
179.8TFC—
159.2TF—
0MWM—
231.1TFC—
306CM—
77.8TFC—
288.8CM—
0AMH08 0050
2CM—
81.8TB—
129TFC—
308.1AMH08 0051
46.6CL—
281.3TFC—
27.1TFC—

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2017-12-28T03:10:04-08:00
is_lateral_inspection
false
