Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 27, 2017, 09:49 AM

  • 08 0074_08 0073 _27122017_020031.mp4

Date
12/27/2017
W/O
679275
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00076
Time
1:49 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5296
Sewer Name
08 MAIN STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Routine Assessment
Project
WO_679275_TV08116_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0073
Downstream MH
08 0074
Dir. of Survey
Upstream
Length Surveyed
319.4 ft.
Total Length
319.4 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
189
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
191
Pipe schematic from manhole 08 0073 to 08 0074
MH: 08 0073MH: 08 0074upstream0 ft. MSA - Survey Abandoned - CAM BLKD BY ROCK0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish6.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"55.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"105 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"156.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"209 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.4 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES271.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"315.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start319.4 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK319.4 ft. MWL - Water Level, 5 %of cross sectional area319.4 ft. AMH - Downstream Manhole, Survey Begins - 08 0073319.4 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK319.4 ft. MGO - Reversal Inspection319.4 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

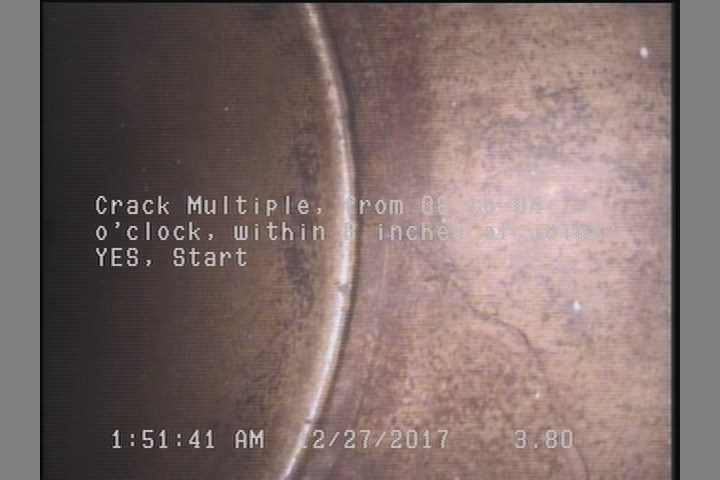

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

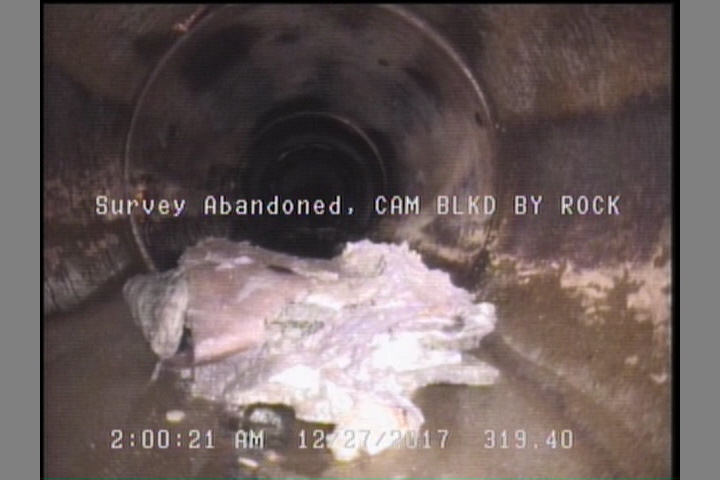

  • Survey Abandoned - CAM BLKD BY ROCK

    319.4 ft. - Survey Abandoned - CAM BLKD BY ROCK

All inspections of P00076Work order 679275

Observations (16)

DistanceCodeObservation
319.4MSACAM BLKD BY ROCK
3.8CM—
264.1TF—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
110.4TFC—
0AMH08 0073
0MGOCONNECTION AT MH 9 O'CLOCK
162.5TF—
0MGO—
312.6TFC—
214.4TFC—
47.8TFC—
319.4CM—
106DSZ—
0MWM—

Properties (5)

additional_info
SC346770
custom_field_two
3
customer
LACSD
datetime
2017-12-27T01:49:13-08:00
is_lateral_inspection
false
