Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2017, 06:46 AM

  • 02 0692_02 0645_16052017_234656.mp4

Date
05/16/2017
W/O
618894
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00258
PipeID
P03199
Time
11:46 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4455
Sewer Name
02 EAST COMPTON BOULEVARD EXTENSION TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
30
Purpose
Routine Assessment
Project
WO_618894_TV02057_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0645
Downstream MH
02 0692
Dir. of Survey
Upstream
Length Surveyed
179.8 ft.
Total Length
179.8 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 02 0645 to 02 0692
MH: 02 0645MH: 02 0692upstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Ends - 02 06920 ft. MGO - General Observation - ACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK12.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"16.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"72.6 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES80.4 ft. CM - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES129.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES177.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES179.8 ft. MWL - Water Level, 30 %of cross sectional area179.8 ft. MWM - Water Mark, 35 %of cross sectional area179.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE179.8 ft. MGO - General Observation - AVTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK179.8 ft. AMH - Downstream Manhole, Survey Begins - 02 0645

Observation photos (3)

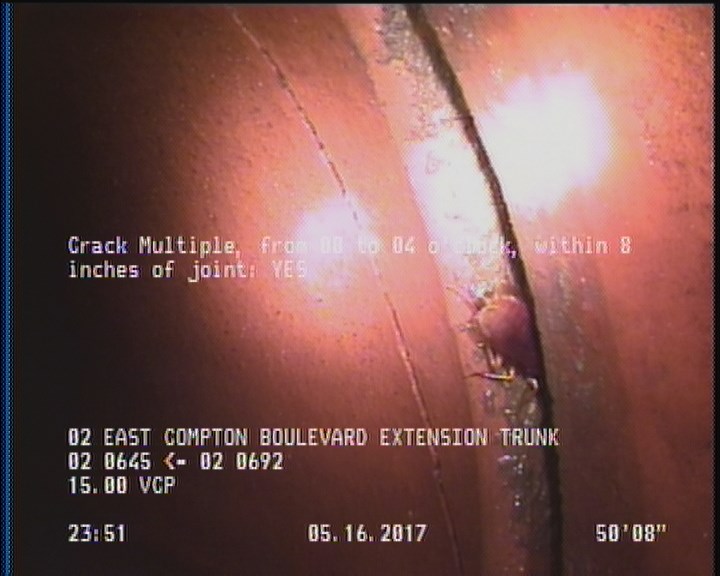

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    50.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

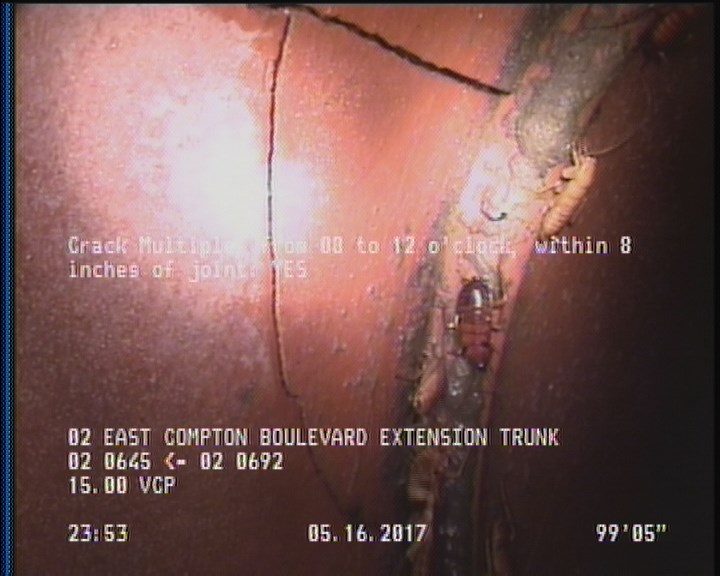

  • Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    99.4 ft. - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

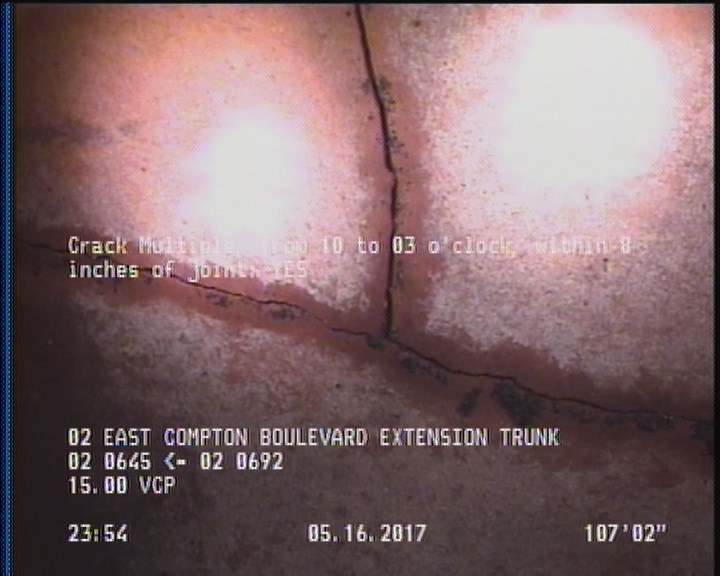

  • Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

    107.2 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

All inspections of P03199Work order 618894

Observations (14)

DistanceCodeObservation
0MWL—
99.4CM—
0MWM—
167TFC—
0MGOCOCKROACHES IN MANHOLE
179.8MGOCOCKROACHES IN MANHOLE
2DAGS—
163.3TFC—
0MGOAVTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK
179.8AMH02 0692
0AMH02 0645
179.8MGOACTIVE CONNECTIONS AT MH 3 AND 9 O'CLOCK
50.6CM—
107.2CM—

Properties (6)

additional_info
SC345231
custom_field_two
3
customer
LACSD
datetime
2017-05-16T23:46:27-07:00
documentation
PRO PIPE
is_lateral_inspection
false
