Wastewater/Activity/PacpInspection/1.0May 18, 2017, 10:59 AM
02 0630_02 0629_18052017_040021.mp4
- Date
- 05/18/2017
- W/O
- 618894
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00258
- PipeID
- P03181
- Time
- 3:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4556
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_618894_TV02057_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0630
- Downstream MH
- 02 0629
- Dir. of Survey
- Downstream
- Length Surveyed
- 133.2 ft.
- Total Length
- 133.2 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 63
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 52
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 115
Observation photos (2)

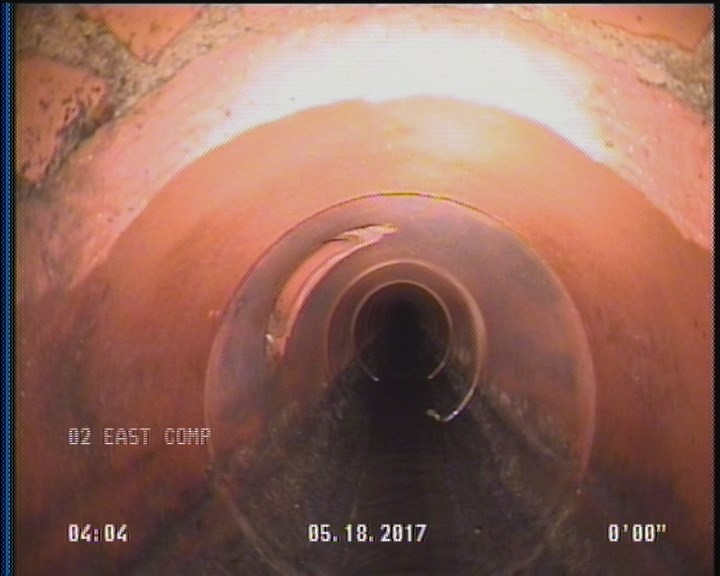

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

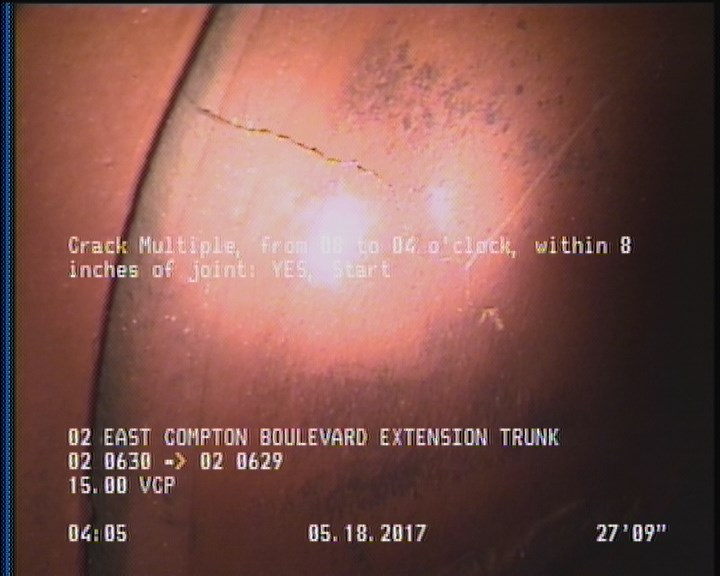

27.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 5 | TFC | — |
| 0 | MWL | — |
| 27.7 | CM | — |
| 0 | DAGS | — |
| 57.6 | TFC | — |
| 133.2 | AMH | 02 0629 |
| 32.9 | TFC | — |
| 132.1 | DAGS | — |
| 132.1 | CM | — |
| 109.6 | TFC | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | 02 0630 |
| 100.6 | TFC | — |
Properties (6)
- additional_info
- SC345232
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-18T03:59:56-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
