Wastewater/Activity/PacpInspection/1.0May 17, 2017, 10:32 AM
02 0647_02 0646_17052017_033223.mp4
- Date
- 05/17/2017
- W/O
- 618894
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00258
- PipeID
- P03201
- Time
- 3:32 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4455
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_618894_TV02057_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0647
- Downstream MH
- 02 0646
- Dir. of Survey
- Downstream
- Length Surveyed
- 52.3 ft.
- Total Length
- 52.3 ft.
- Structural Index
- 3
- Structural Quick
- 3800
- Structural Rating
- 24
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 20
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 44
Observation photos (2)

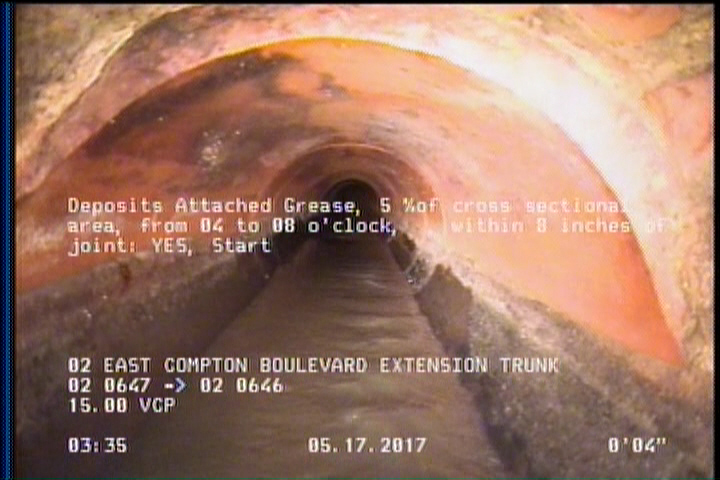

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
10.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 50.7 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 48.5 | CM | — |
| 0 | MWL | — |
| 52.3 | AMH | 02 0646 |
| 0 | AMH | 02 0647 |
| 10.5 | CM | — |
Properties (6)
- additional_info
- SC345231
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-17T03:32:02-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
