Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 17, 2016, 09:48 AM

  • H 1434_H 1433 _17082016_024633.mp4

Date
08/17/2016
W/O
585476
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01204
PipeID
P16306
Time
2:48 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3567
Sewer Name
H JOINT OUTFALL H - UNIT 8M
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
31
Purpose
Routine Assessment
Project
WO_585476_TV22034_AUG2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
H 1434
Downstream MH
H 1433
Dir. of Survey
Downstream
Length Surveyed
355.9 ft.
Total Length
355.9 ft.
Structural Index
3
Structural Quick
3700
Structural Rating
21
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole H 1434 to H 1433
MH: H 1434MH: H 1433downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 14340 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK2.5 ft. MGO - General Observation - MAG COAT 85%22.4 ft. SAV - Surface Aggregate Visible, from 01 to 03 o'clock, within 8 inches of joint: YES44.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"53.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"76.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"90 ft. SAV - Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: NO109.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"115.2 ft. SAV - Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: YES131.6 ft. SAV - Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: YES164.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"189.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"229.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"237.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"285.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"293.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"338.9 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO, Start355.9 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK355.9 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO, Finish355.9 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK355.9 ft. AMH - Downstream Manhole, Survey Ends - H 1433

Observation photos (5)

  • Surface Aggregate Visible, from 01 to 03 o'clock, within 8 inches of joint: YES

    22.4 ft. - Surface Aggregate Visible, from 01 to 03 o'clock, within 8 inches of joint: YES

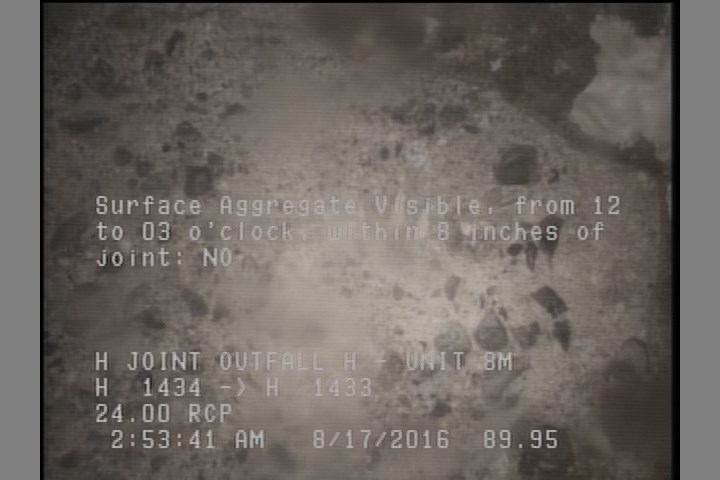

  • Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: NO

    90 ft. - Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: NO

  • Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: YES

    115.2 ft. - Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: YES

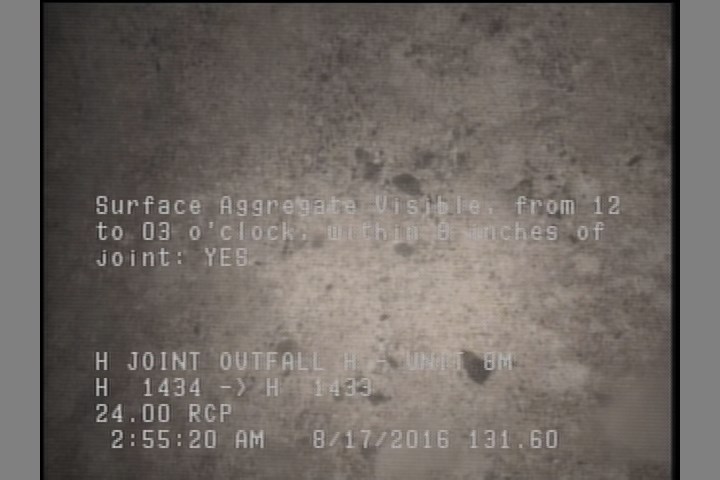

  • Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: YES

    131.6 ft. - Surface Aggregate Visible, from 12 to 03 o'clock, within 8 inches of joint: YES

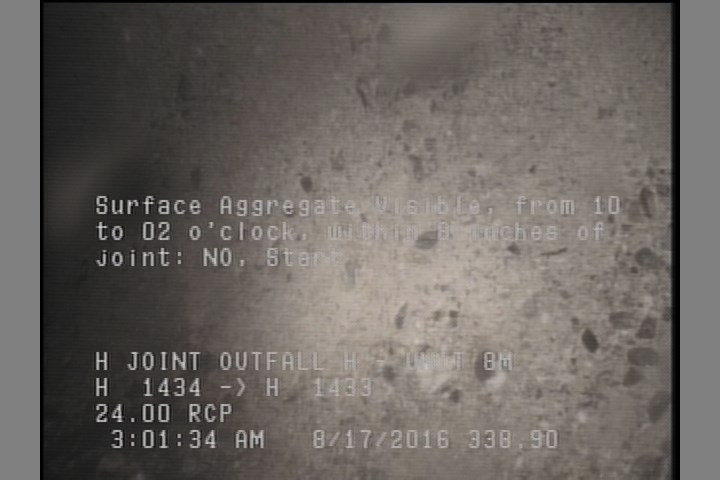

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

    338.9 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

All inspections of P16306Work order 585476

Observations (24)

DistanceCodeObservation
109.5TF—
90SAV—
53.3TF—
0AMHH 1434
285.9TF—
0MWM—
355.9MGOLATERAL AT MH 9 OCLOCK
2.5MGOMAG COAT 85%
131.6SAV—
237.9TFA—
22.4SAV—
44.8TF—
76.7TF—
189.3TF—
164.2TF—
355.9SAV—
355.9MGOLATERAL AT MH 3 OCLOCK
293.1TF—
0MWL—
355.9AMHH 1433
115.2SAV—
338.9SAV—
0MGOLATERAL AT MH 9 OCLOCK
229.2TF—

Properties (6)

additional_info
SC305900
custom_field_two
4
customer
LACSD
datetime
2016-08-17T02:48:18-07:00
documentation
PROPIPE
is_lateral_inspection
false
