Wastewater/Activity/PacpInspection/1.0Sep 1, 2016, 09:11 AM
29 0500_29 0496 _20160901_031529.mp4
- Date
- 09/01/2016
- W/O
- 579989
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00985
- PipeID
- P24548
- Time
- 2:11 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3698
- Sewer Name
- 29 CHERRY AVENUE SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_579989_TV29019_AUG2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0500
- Downstream MH
- 29 0496
- Dir. of Survey
- Downstream
- Length Surveyed
- 145.2 ft.
- Total Length
- 145.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

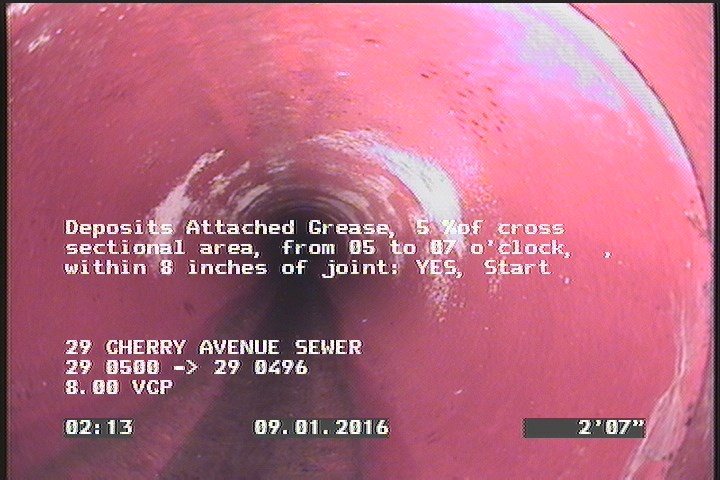

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 2.6 | DAGS | — |
| 0 | AMH | 29 0500 |
| 145.2 | AMH | 29 0496 |
| 0 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 143.4 | DAGS | — |
Properties (6)
- additional_info
- SC306028
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-01T02:11:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
