Wastewater/Activity/PacpInspection/1.0Jun 15, 2016, 08:47 AM
A 0814_A 0813 _15062016_014821.mp4
- Date
- 06/15/2016
- W/O
- 574627
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00325
- PipeID
- P08314
- Time
- 1:47 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3531
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_574627_TV15209_JUNE2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- A 0814
- Downstream MH
- A 0813
- Dir. of Survey
- Downstream
- Length Surveyed
- 147.9 ft.
- Total Length
- 147.9 ft.
- Structural Index
- 3
- Structural Quick
- 3E2D
- Structural Rating
- 136
- O&M Index
- 2
- O&M Quick
- 412E
- O&M Rating
- 60
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 196
Observation photos (4)

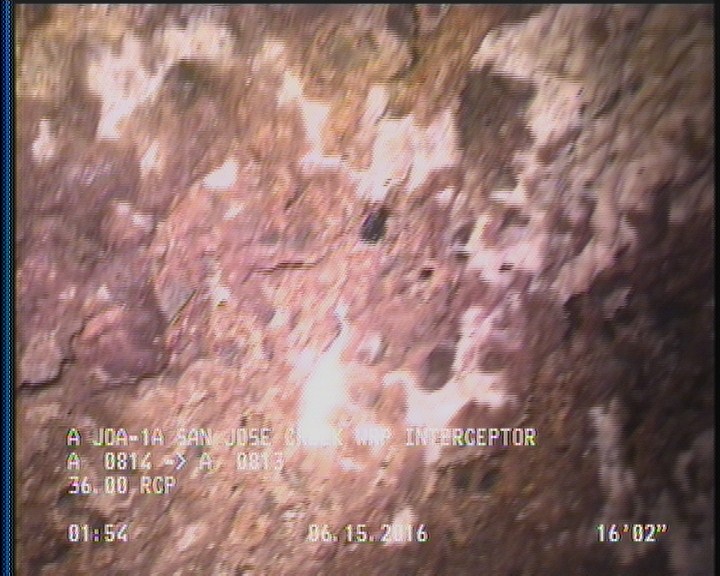

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

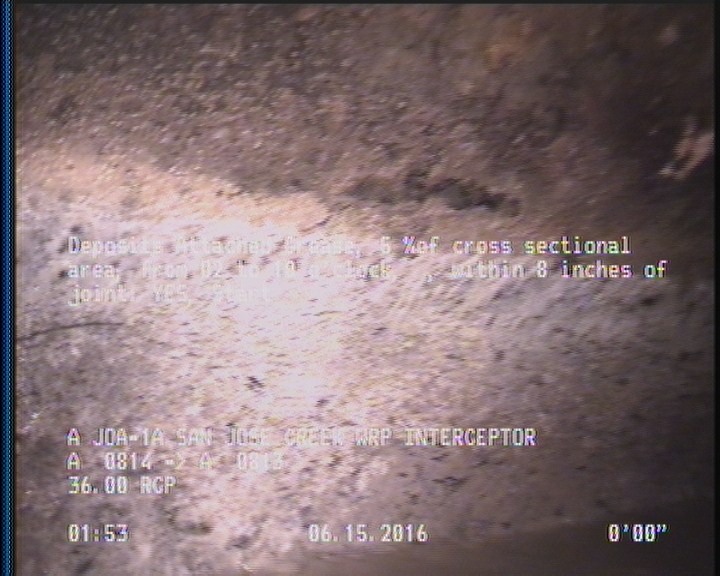

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

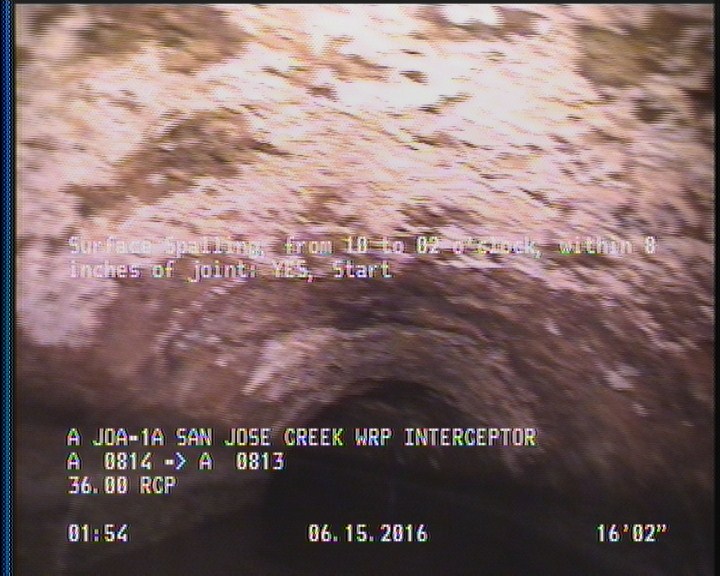

16.2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

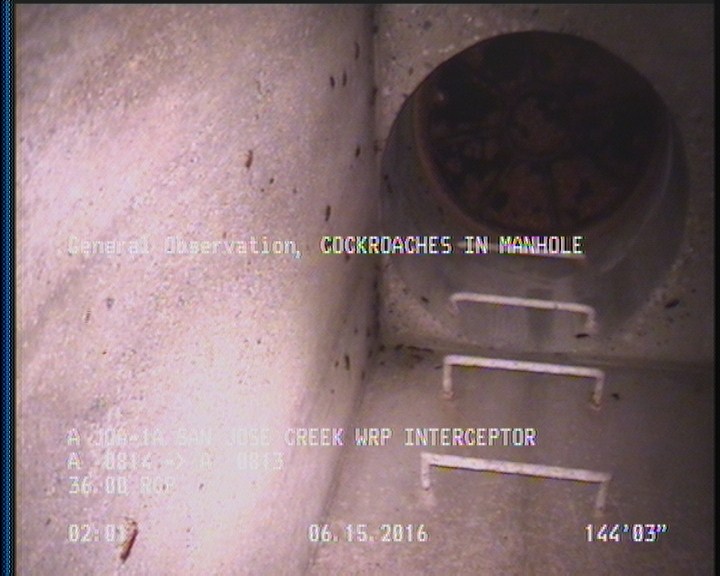

144.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 147.9 | AMH | A 0813 |
| 2 | SAP | — |
| 144.3 | DAGS | — |
| 0 | AMH | A 0814 |
| 16.2 | SSS | — |
| 144.3 | SSS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 144.3 | MGO | COCKROACHES IN MANHOLE |
| 144.3 | SAP | — |
Properties (7)
- additional_info
- SC305764
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-15T01:47:54-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 29427
