Wastewater/Activity/PacpInspection/1.0Jun 2, 2016, 04:56 AM
B 1156_B 1155 _060116_220658.mp4
- Date
- 06/01/2016
- W/O
- 574365
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01125
- PipeID
- P13458
- Time
- 9:56 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3388
- Sewer Name
- B JOINT OUTFALL B - UNIT 6H
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_574365_TV16044_JUNE2016
- Sewer Type
- Gravity
- Material
- BRICK
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- B 1156
- Downstream MH
- B 1155
- Dir. of Survey
- Downstream
- Length Surveyed
- 477.6 ft.
- Total Length
- 477.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

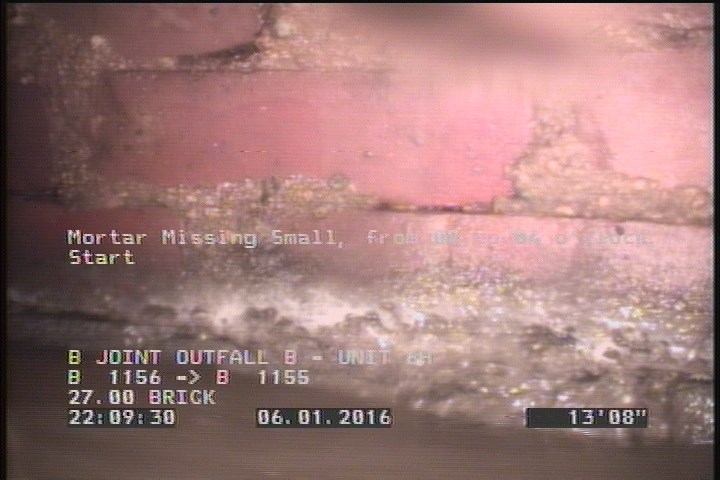

13.7 ft. - Mortar Missing Small, from 08 to 04 o'clock, Start

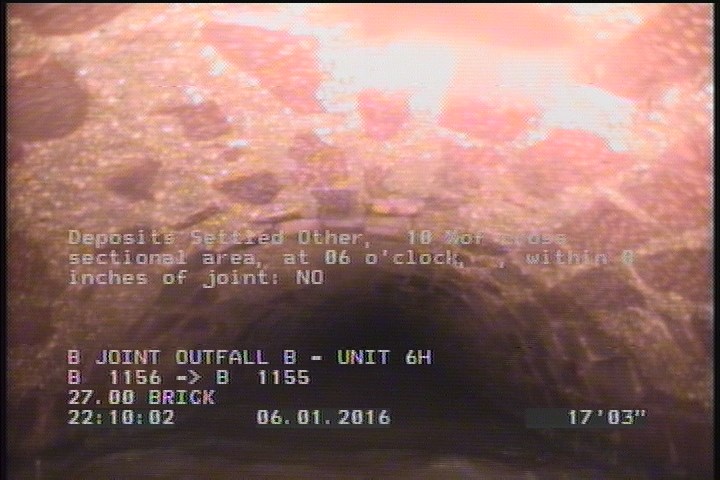

17.3 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 176.9 | TF | — |
| 277.6 | TF | — |
| 13.7 | MMS | — |
| 0 | MWM | — |
| 377.2 | TF | — |
| 0 | MWL | — |
| 477.6 | MGO | CONNECTION AT MH 9 OCLOCK |
| 17.3 | DSZ | — |
| 477.6 | AMH | B 1155 |
| 468.8 | MMS | — |
| 0 | AMH | B 1156 |
Properties (6)
- additional_info
- SC300388
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-06-01T21:56:11-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
