Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 16, 2016, 08:23 AM

  • 05 1648_05 1647 _061616_012325.mpg

Date
06/16/2016
W/O
563399
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00539
PipeID
P06871
Time
1:23 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3398
Sewer Name
05 WEST TORRANCE TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
30
Purpose
Routine Assessment
Project
WO_563399_TV05132_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1648
Downstream MH
05 1647
Dir. of Survey
Downstream
Length Surveyed
351.8 ft.
Total Length
351.8 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
204
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
204
Pipe schematic from manhole 05 1648 to 05 1647
MH: 05 1648MH: 05 1647downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 16480 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area13.3 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES16.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start71.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"111.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"150.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"190.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"229.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"269.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"302.5 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"308.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"344.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"350.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish351.8 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK351.8 ft. AMH - Downstream Manhole, Survey Ends - 05 1647351.8 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK

Observation photos (3)

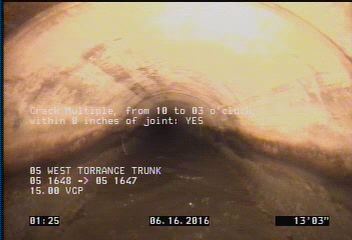

  • Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

    13.3 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

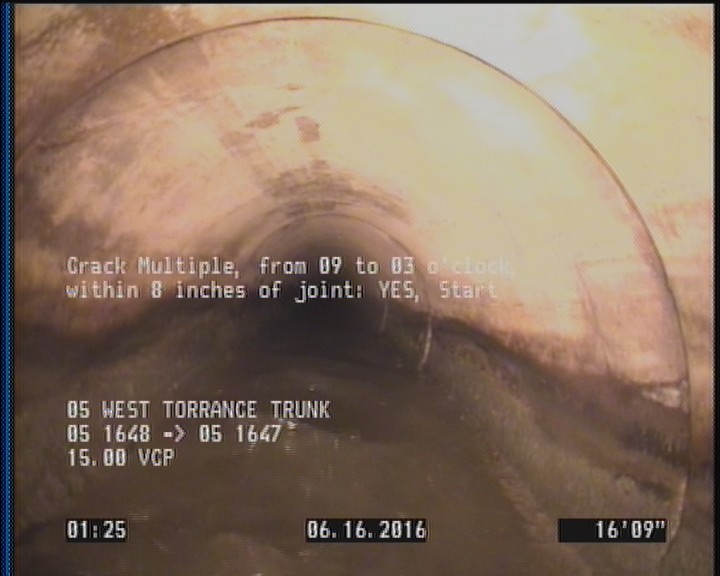

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    16.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

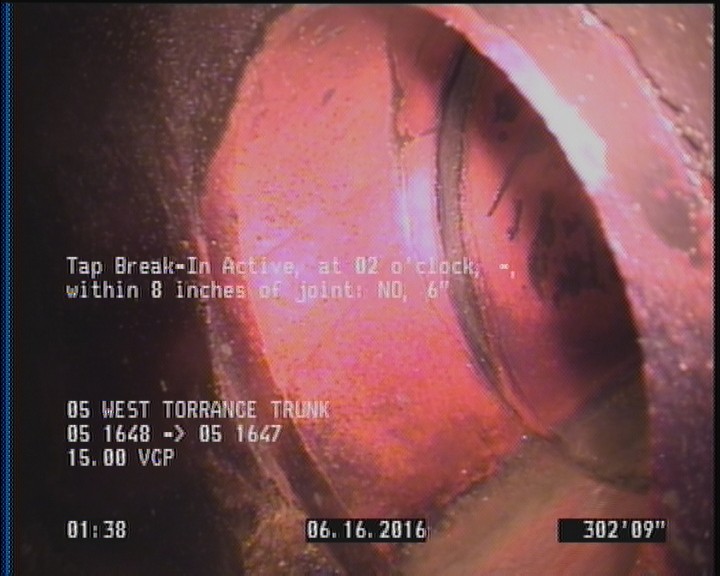

  • Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    302.5 ft. - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P06871Work order 563399

Observations (20)

DistanceCodeObservation
0AMH05 1648
111.2TFA—
0MWL—
190.2TF—
229.4TF—
350.4CM—
71.9TF—
13.3CM—
351.8MGOCONNECTION AT THE MH 9 O'CLOCK
351.8AMH05 1647
308.5TFC—
150.5TFC—
0MGOCONNECTION AT THE MH 3 O'CLOCK
351.8MGOCONNECTION AT THE MH 3 O'CLOCK
0MGOCONNECTION AT THE MH 9 O'CLOCK
16.8CM—
0MWM—
344.1TF—
302.5TBA—
269.3TFC—

Properties (6)

additional_info
SC300398
custom_field_two
3
customer
LACSD
datetime
2016-06-16T01:23:07-07:00
documentation
PROPIPE
is_lateral_inspection
false
