Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 15, 2016, 06:40 AM

  • 05 1668_05 1667 _061416_114026.mpg

Date
06/14/2016
W/O
563399
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00539
PipeID
P06892
Time
11:40 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3397
Sewer Name
05 WEST TORRANCE TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
32
Purpose
Routine Assessment
Project
WO_563399_TV05132_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1668
Downstream MH
05 1667
Dir. of Survey
Downstream
Length Surveyed
272 ft.
Total Length
272 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
159
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
159
Pipe schematic from manhole 05 1668 to 05 1667
MH: 05 1668MH: 05 1667downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - PIPE IS 18"0 ft. AMH - Upstream Manhole, Survey Begins - 05 16680 ft. MWM - Water Mark, 20 %of cross sectional area2.7 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start8.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"71.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"96.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"111.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"167.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"217.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"262.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"267.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish272 ft. AMH - Downstream Manhole, Survey Ends - 05 1667

Observation photos (2)

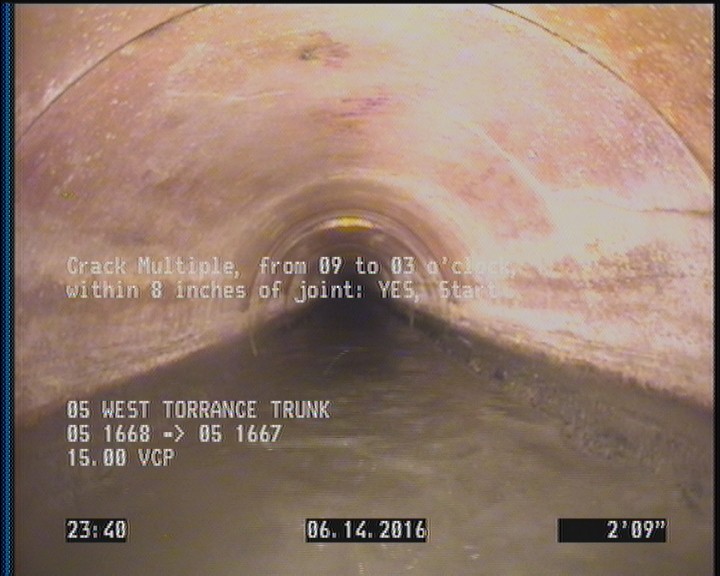

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2.7 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

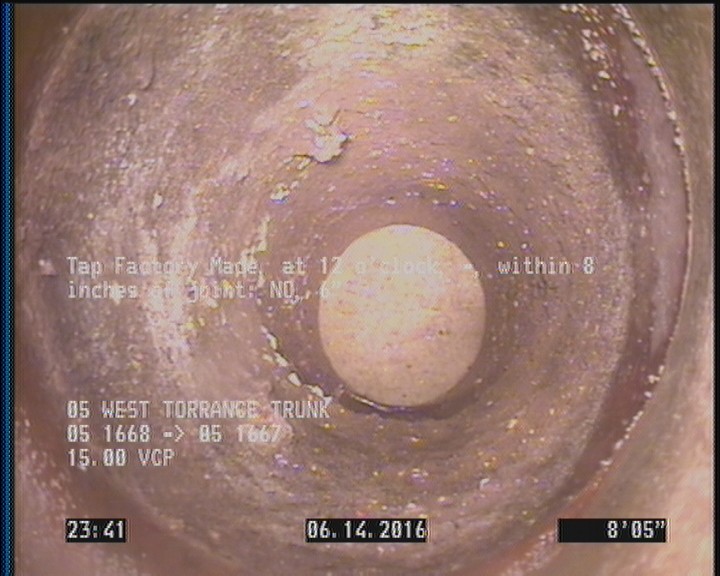

  • Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    8.4 ft. - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P06892Work order 563399

Observations (14)

DistanceCodeObservation
8.4TF—
111.2TF—
267.2CM—
217.8TF—
2.7CM—
272AMH05 1667
0MWL—
262.1TF—
71.7TF—
0MGOPIPE IS 18"
0AMH05 1668
167.4TFC—
96.4TF—
0MWM—

Properties (6)

additional_info
SC300397
custom_field_two
3
customer
LACSD
datetime
2016-06-14T23:40:00-07:00
documentation
PROPIPE
is_lateral_inspection
false
