Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 16, 2016, 07:49 AM

  • 05 1649_05 1648 _061616_005006.mpg

Date
06/16/2016
W/O
563399
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00539
PipeID
P06872
Time
12:49 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3398
Sewer Name
05 WEST TORRANCE TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
30
Purpose
Routine Assessment
Project
WO_563399_TV05132_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1649
Downstream MH
05 1648
Dir. of Survey
Downstream
Length Surveyed
396.1 ft.
Total Length
396.1 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
234
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
234
Pipe schematic from manhole 05 1649 to 05 1648
MH: 05 1649MH: 05 1648downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 16490 ft. MWM - Water Mark, 30 %of cross sectional area2.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES6.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start32.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"63.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"111.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"151 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"194.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"233.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"273.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"312.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"351.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"391.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish396.1 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK396.1 ft. AMH - Downstream Manhole, Survey Ends - 05 1648396.1 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK

Observation photos (2)

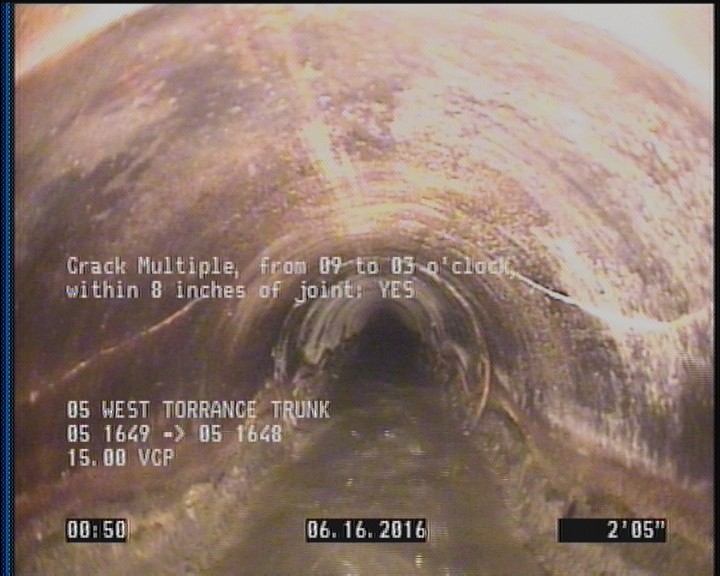

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    2.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

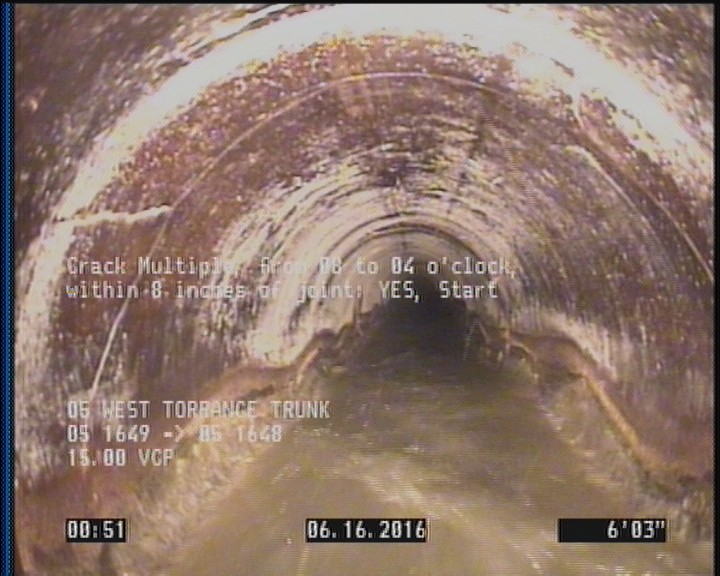

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06872Work order 563399

Observations (18)

DistanceCodeObservation
0MWL—
0AMH05 1649
6.2CM—
194.3TF—
111.3TFC—
233.9TF—
273.3TF—
391.1CM—
396.1MGOCONNECTION AT THE MH 3 O'CLOCK
396.1AMH05 1648
32.5TF—
63.6TF—
0MWM—
312.8TF—
396.1MGOCONNECTION AT THE MH 9 O'CLOCK
2.4CM—
351.8TF—
151TFA—

Properties (6)

additional_info
SC300398
custom_field_two
3
customer
LACSD
datetime
2016-06-16T00:49:25-07:00
documentation
PROPIPE
is_lateral_inspection
false
