Wastewater/Activity/PacpInspection/1.0Jun 15, 2016, 07:32 AM
05 1667_05 1666 _061416_123247.mpg
- Date
- 06/15/2016
- W/O
- 563399
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00539
- PipeID
- P06891
- Time
- 12:32 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3397
- Sewer Name
- 05 WEST TORRANCE TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_563399_TV05132_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 1667
- Downstream MH
- 05 1666
- Dir. of Survey
- Downstream
- Length Surveyed
- 268.3 ft.
- Total Length
- 268.3 ft.
- Structural Index
- 3
- Structural Quick
- 3I00
- Structural Rating
- 156
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 159
Observation photos (3)

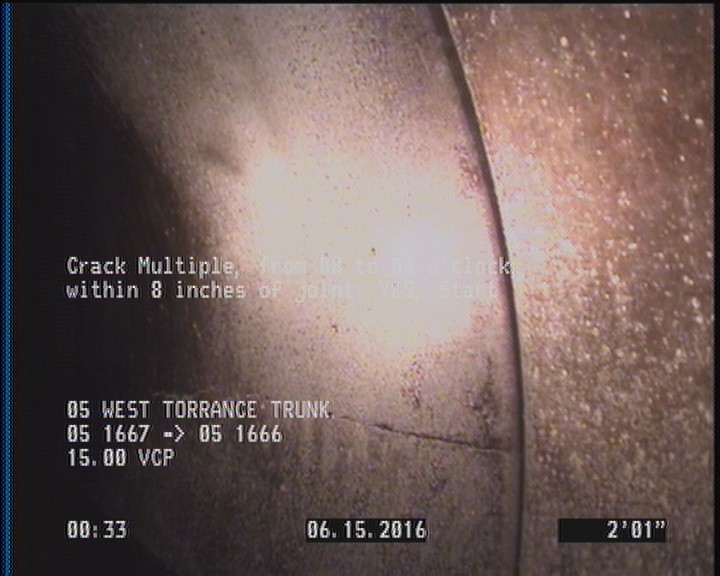

2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

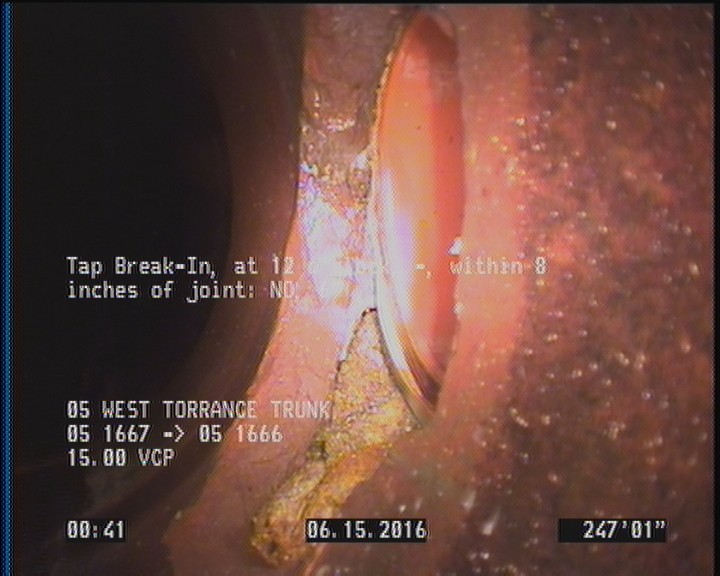

247.1 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

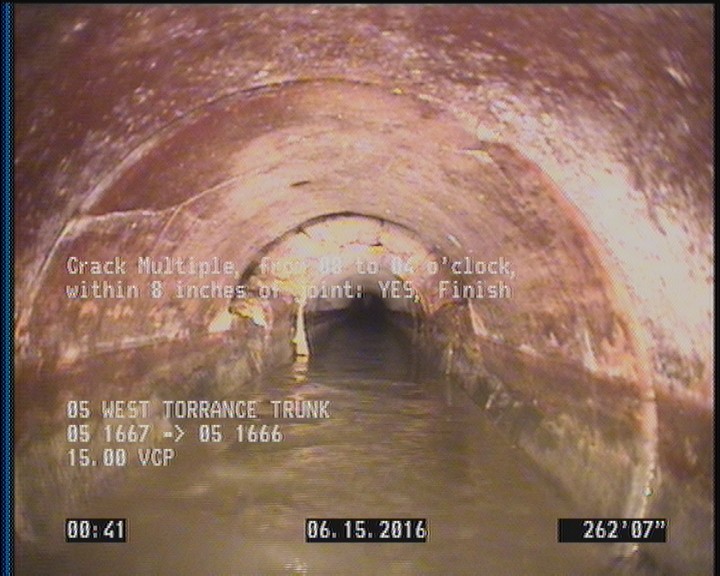

262.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 262.6 | CM | — |
| 0 | MWM | — |
| 268.3 | AMH | 05 1666 |
| 144.4 | TF | — |
| 88.9 | TF | — |
| 190.9 | TF | — |
| 45.8 | TF | — |
| 247.1 | TB | — |
| 0 | MWL | — |
| 0.1 | MGO | PIPE IS 18" |
| 2 | CM | — |
| 0 | AMH | 05 1667 |
| 237.8 | TF | — |
Properties (6)
- additional_info
- SC300397
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-15T00:32:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
