Wastewater/Activity/PacpInspection/1.0Dec 23, 2014, 06:25 AM
22 0272_22 0271_20141222_224309.mp4
- Date
- 12/22/2014
- W/O
- 480783
- Weather
- Dry
- Operator/Surveyor
- ERU
- Sewer ID
- Z00793
- PipeID
- P16557
- Time
- 10:25 PM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K1987-SC189552
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_480783_TV22015_2014DECEMBER
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 0272
- Downstream MH
- 22 0271
- Dir. of Survey
- Downstream
- Length Surveyed
- 258.6 ft.
- Total Length
- 258.6 ft.
- Structural Index
- 3
- Structural Quick
- 4H3I
- Structural Rating
- 338
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 340
Observation photos (4)

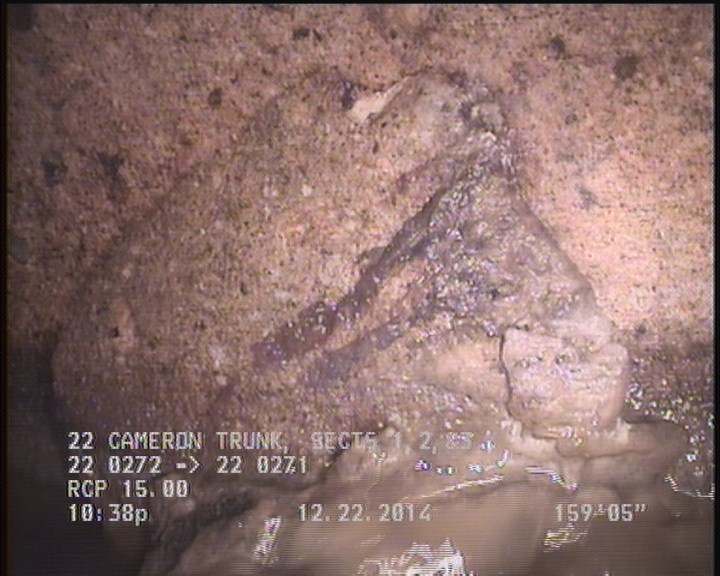

4.4 ft. - General Observation - MAG COATING THROUGHOUT PIPE
4.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
21.9 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
159.4 ft. - Obstacles Pipe Material, 10 %of cross sectional area, from 04 to 06 o'clock
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 49.8 | TFC | — |
| 258.5 | TFA | — |
| 159.4 | OBM | — |
| 226.6 | TFC | — |
| 255.9 | SAP | — |
| 0 | AMH | 2227 |
| 202.7 | TFA | — |
| 122.5 | TFA | — |
| 0 | MWL | — |
| 21.9 | SAM | — |
| 255.9 | SAM | — |
| 258.6 | AMH | 2243 |
| 98.2 | TFA | — |
| 4.4 | MGO | MAG COATING THROUGHOUT PIPE |
| 74.1 | TFA | — |
| 4.4 | SAP | — |
| 25.8 | TFC | — |
Properties (5)
- custom_field_two
- CR 3
- customer
- LACSD
- datetime
- 2014-12-22T22:25:20-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
