Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 22, 2014, 03:00 PM

  • 22 0275_22 0274_20141222_071515.mp4

Date
12/22/2014
W/O
480783
Weather
Dry
Operator/Surveyor
ERU
Sewer ID
Z00793
PipeID
P16561
Time
7:00 AM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K1986-SC189551
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_480783_TV22015_2014DECEMBER
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
15 in.
Upstream MH
22 0274
Downstream MH
22 0275
Dir. of Survey
Upstream
Length Surveyed
196 ft.
Total Length
196 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
111
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
111
Pipe schematic from manhole 22 0274 to 22 0275
MH: 22 0274MH: 22 0275upstream0 ft. AMH - Upstream Manhole, Survey Ends - 07151.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 8"1.3 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 8"4.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish68.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6"149.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6"175.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish175.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start190 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start190 ft. MGO - General Observation - MAG COATING THROUGHOUT PIPE195.8 ft. MWM - Water Mark, 25 %of cross sectional area196 ft. MWL - Water Level, 15 %of cross sectional area196 ft. AMH - Downstream Manhole, Survey Begins - 0702196 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 8"

Observation photos (2)

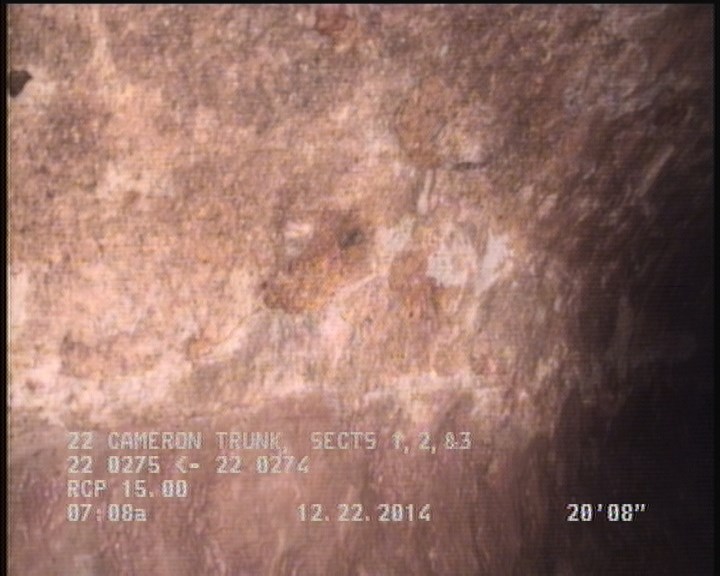

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    20.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16561Work order 480783

Observations (14)

DistanceCodeObservation
196AMH0715
194.7TFC—
46.7TFC—
191.3SAP—
0MWL—
0AMH0702
20.7SAV—
6SAV—
6MGOMAG COATING THROUGHOUT PIPE
0.2MWM—
20.7SAP—
194.7TFA—
0TFA—
127.4TFC—

Properties (5)

custom_field_two
CR 3
customer
LACSD
datetime
2014-12-22T07:00:14-08:00
documentation
PROPIPE
is_lateral_inspection
false
